Copper tube benders for sale for stainless steel pipe
Features of the Copper tube benders for sale for stainless steel pipe
1. The tube benders Bend-arm (C-axis) by hydraulic.Clamp die by hydraulic, Pressure die by hydraulic.
2. Carriage (Y-axis) by servo motor.Collet (B-axis) : rotation by servo motor,grip by hydraulic.
Item |
Name | Data | |
| 1 | Max bending capacity | Φ89 mm×6 mm | |
| 2 | Max bending radius | R280mm | |
| Can according to customer’s requirement | |||
| 3 | Min bending radius | R30mm | |
| 4 | Max feeding length | 3000mm | |
| Can according to customer’s requirement | |||
| 5 | Max bending degree | 190 Degree | |
| 6 | Control Panel | PC | |
| 7 | Touch Screen | Taiwan Smart Face | |
| 8 | Bending unit | 16 Pieces | |
| 9 | Working speed | Bending speed | 45 Deg/sec |
| Rotary speed | 150 Deg/sec | ||
| Feeding speed | 800 mm/sec | ||
| 10 | Accuracy | Feeding | ±0.05 mm |
| Rotary | ±0.05 Degree | ||
| Bending | ±0.05 Degree | ||
| 11 | Rotary Pipe | By Servo Motor Power 1.5KW | |
| Japan Mitsubishi | |||
| 12 | Data input | 1.Coordinate ( X, Y, Z ) | |
| 2.Working value ( Y, B, C ) | |||
| 13 | Feeding Pipe | By Servo Motor Power 2 KW | |
| Japan Mitsubishi | |||
| 14 | Bending Pipe | By Hydraulic Valve | |
| 15 | Oil motor power | 11 Kw | |
| 16 | Max storage units | 1000 Group | |
| 17 | Max pressure | 12 MPa | |
| 18 | Hydraulic control system | Magnetic exchange valve | |
| Japan Yuken | |||
| 19 | Oil tank | 300 L | |
| 20 | Machine weight | 5700 Kg | |
| 21 | Machine size | 5100×1400×1300 mm | |

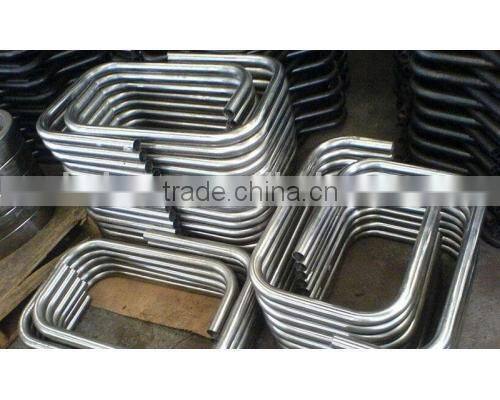

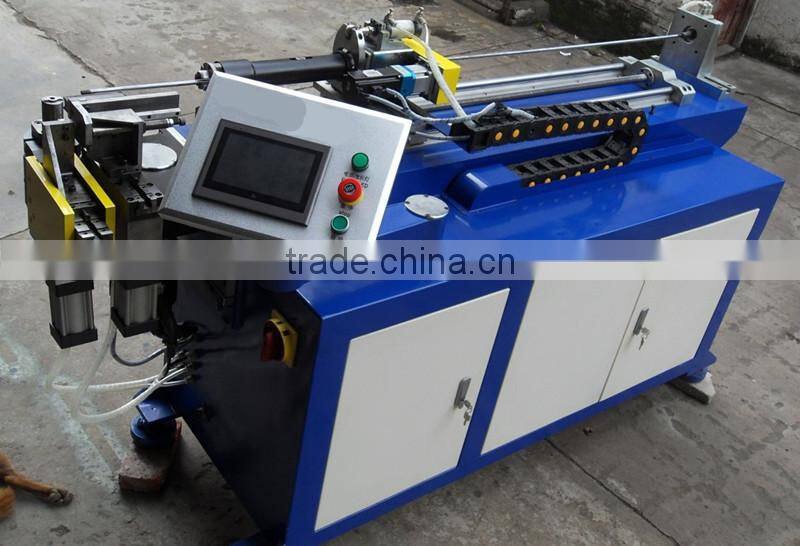

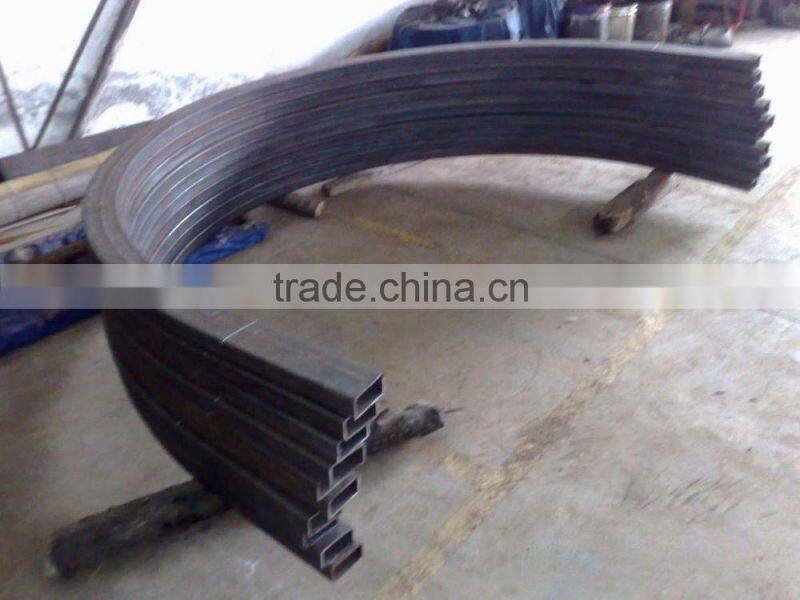

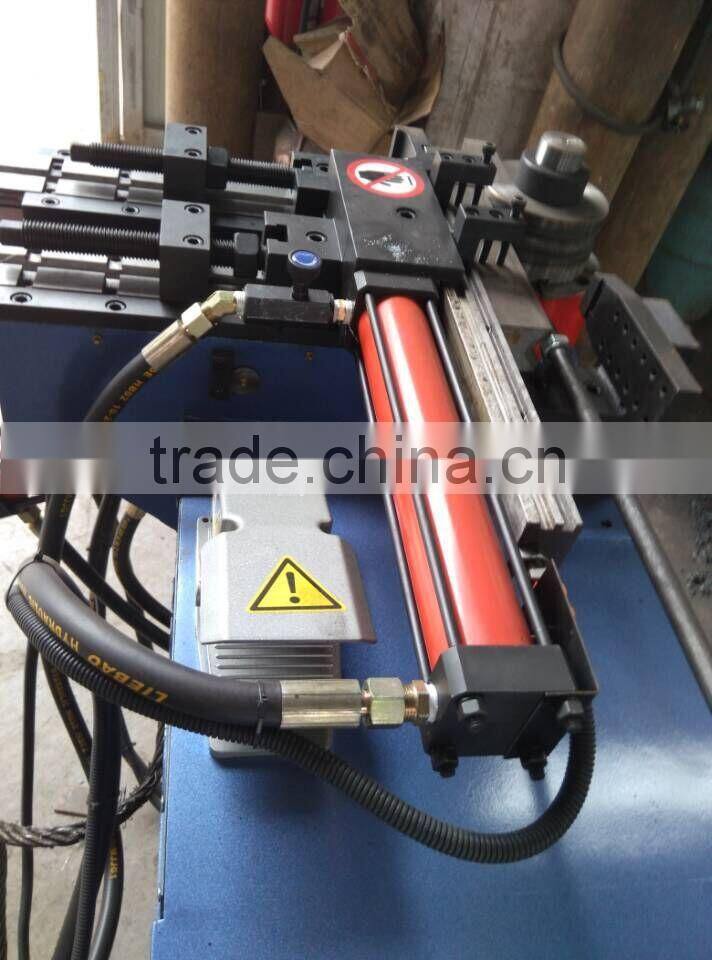

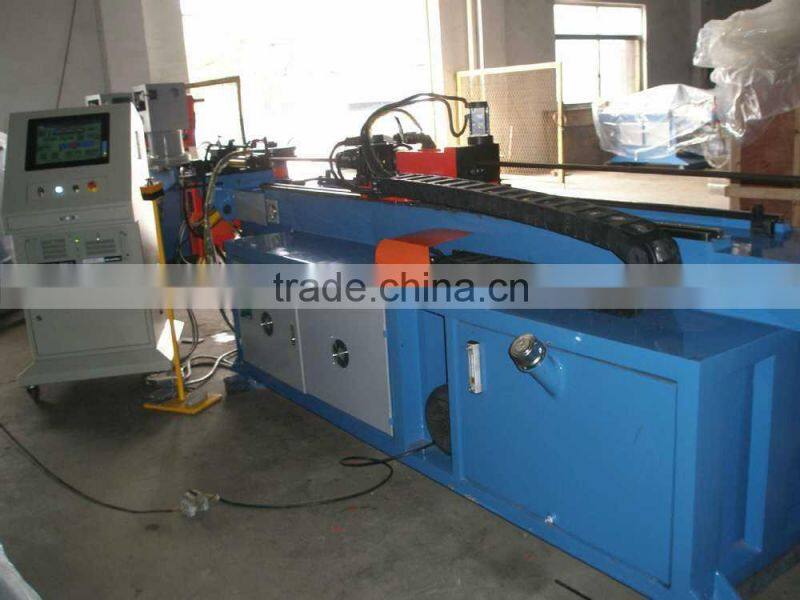

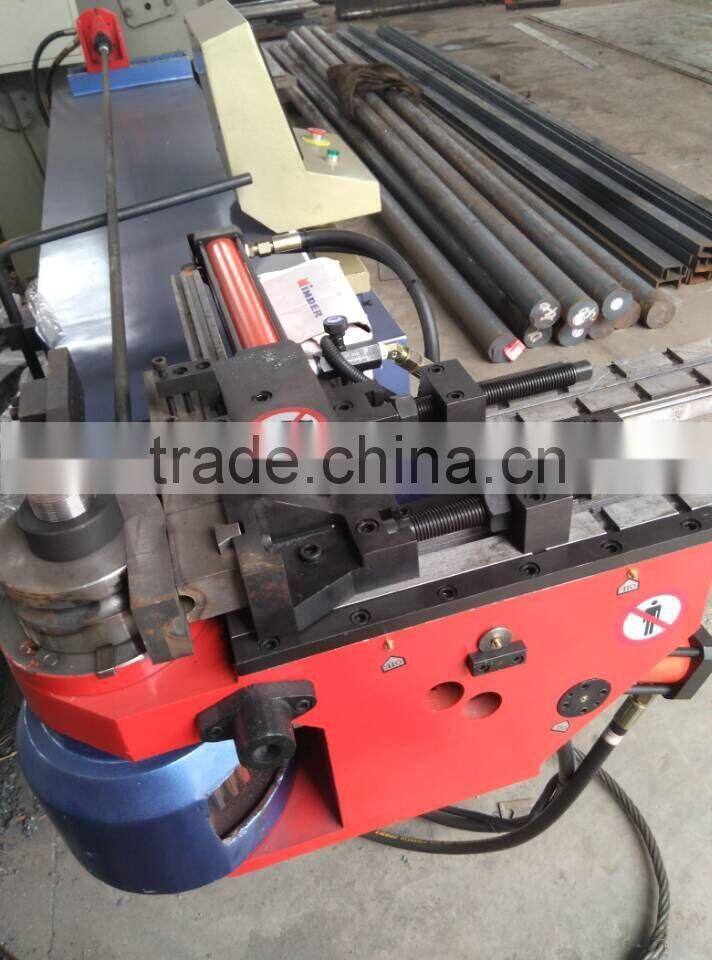

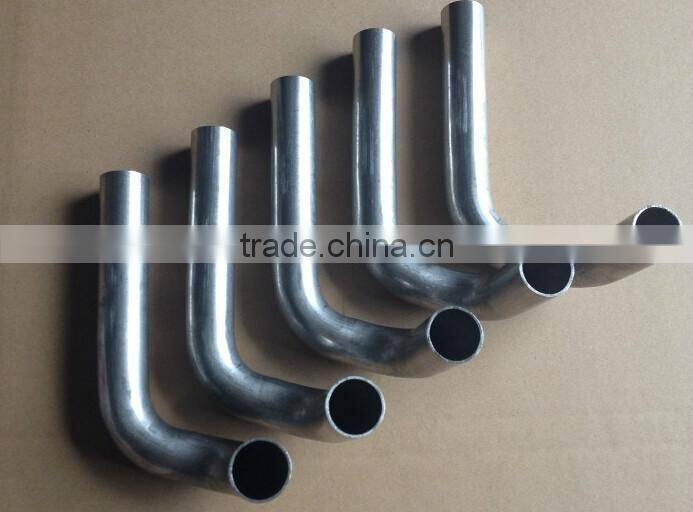

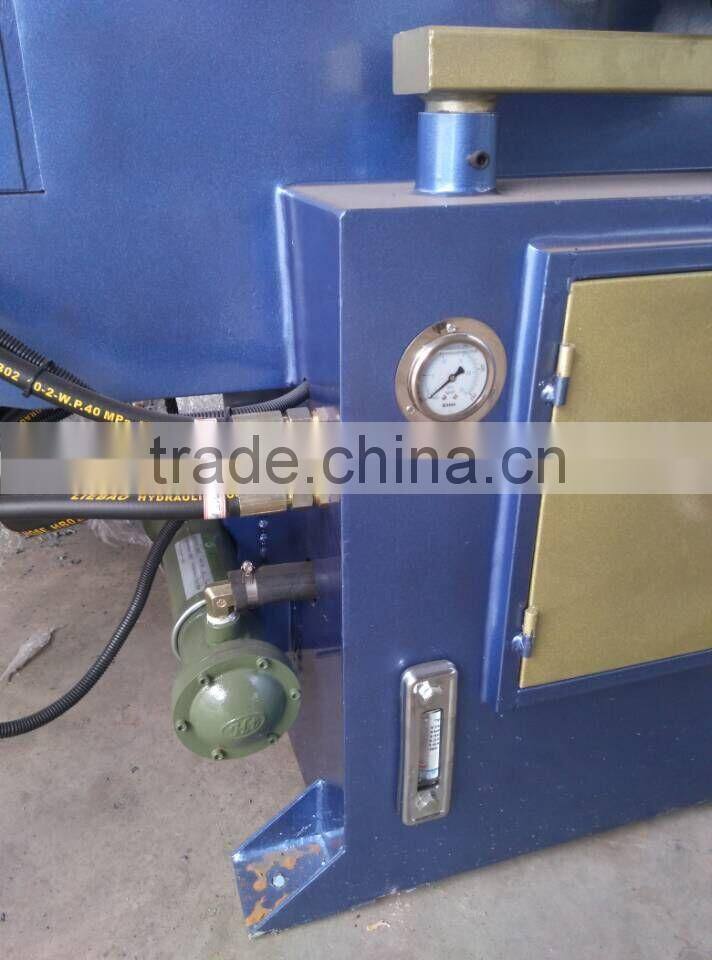

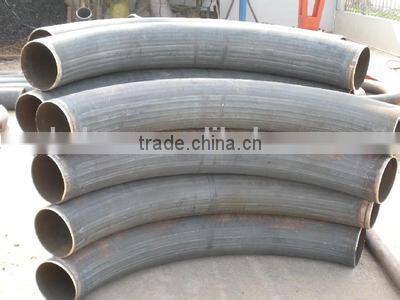

Product show of the tube benders

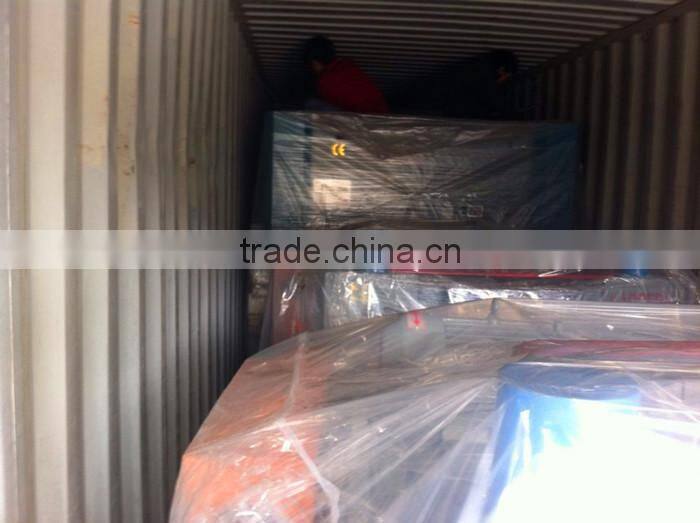

Packaging and shipping for the tube benders
Long term cooperation
If we keep a long term cooperation, there will be more discount.
Problem solving
We will provide solution in one day.
Technical Service
Our techinician is available to give you technical helping or offer training of how to use our machines. As well, you can also send your technician to our company to learn how to operate machines.
Quality Guarantee
We provide two years warranty.We sign the agreement with detailed technical data.
Long term cooperation
If we keep a long term cooperation, there will be more discount.
Problem solving
We will provide solution in one day.
Technical Service
Our techinician is available to give you technical helping or offer training of how to use our machines. As well, you can also send your technician to our company to learn how to operate machines.
Quality Guarantee
We provide two years warranty.We sign the agreement with detailed technical data.
We can supply various specifications of the tube benders,Hydraulic Press Brake,Plate Shearing Machine & Rolling Machine,with or without CNC,power press machine,west baler machine and packing machine and the blades for the machines,according to customers' requirements.
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment,Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Anhui Maanshan Province(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO,BV authentication.
4.Trade Terms:
1.Payment: T/T,Western Union,MoneyGram,PayPal; 30% deposits;70% balance before deliverying.
2.Delivery Time: 20-90 days
3.MOQ: 1 pcs
5.Why choose us?
1.We are China Leading Hydraulic Press Manufacturer.
2.Alibaba Assessed 6 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
6.How to contact us?
Send your Inquiry Details in the Below, Click "Send" Now!
Thanks for your visit,welcome to contact us!
