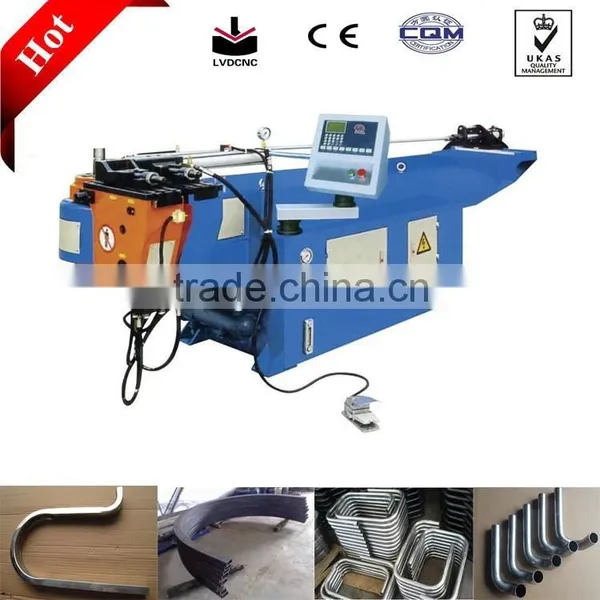

Hand operate pipe bending machine
| Hand operate pipe bending machine features |
1.Bend-arm(C-axis) by hydraulic, clamp die by hydraulic, pressure die by hydrualic. |
| 2.Carriage (Y-axis) by servo motor. Collet(B-axis): rotation by servo motor, grip by hydraulic. |
| 3.Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control. |
| 4.Fan-cooling system. Diagnosis error immediately. |
| 5.Central Automatic lubricatoin system. |
| 6.Foot pedal for safe start. |
| 7.It is fully automatic pipe bending machine, with PLC control system, two servo for ratary feeding. |
| 8.All the parts of hydraulic system, control system, driver system and display system are imported from famous barnd, with high accuracy, high efficient, suitable for mass production. |
| 9.CNC fully quto, have cubical space bending equipment, loading the whole bending process is automatic. |
|
10. The machine is convenient operated, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
|
|
| Hand operate pipe bending machine control system |
|
Touch screen panel display English have different bending degree prefabricate,dialogue operetion,can choose manual,semi-automatic and full autonatic operation manual,portable pedal switch with start and emergency stop function.Muti axes working simultaneously.
|
|
One key pack up of programs for USB or disk storage or though INTERNET.Management and storage of bend data and tools is done in standard text files on the hard disk of the control PLC.In case of requirement it is also possible to integrate the PLC into benidng machine.Therefore an Ethemet adapteris included.The number of tools and produce is practically unlimited.Product and tool files can easily be edited(aoso on a separate PLC) and printed out.
|
Security code for the protection the data setting and selected operation features. |
To access to the history bending setting data to the facilitate study of malfunction with one set of tooling. |
Detailed parts of the Hand operate pipe bending machine

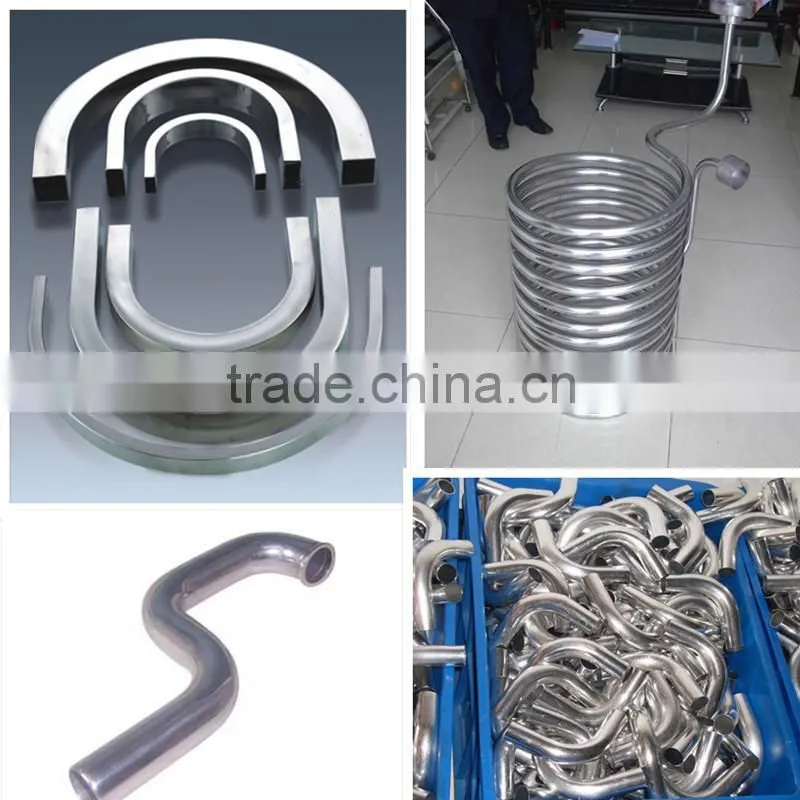

pipes that the Hand operate pipe bending machine
Technical parameters for the Hand operate pipe bending machine
Model |
2-160/3200 |
2-160/4000 |
2-250/3200 |
2-250/4000 |
2-320/4000 |
2-320/6000 |
2-400/4000 |
2-400/6000 |
2-600/6000 |
2-800/6000 |
Nominal pressure of machine(KN) |
2*1600 |
2*1600 |
2*2500 |
2*2500 |
2*3200 |
2*3200 |
2*4000 |
2*4000 |
2*6000 |
2*8000 |
Length of working Table(mm) |
2*3200 |
2*4000 |
2*3200 |
2*4000 |
2*4000 |
2*6000 |
2*4000 |
2*6000 |
2*6000 |
2*8000 |
Throat depth(mm) |
2550 |
3350 |
2700 |
3300 |
3300 |
5300 |
3100 |
5200 |
5200 |
7200 |
Throat depth(mm) |
320 |
320 |
400 |
400 |
400 |
400 |
400 |
400 |
900 |
1100 |
Ram strok(mm) |
200 |
200 |
250 |
250 |
250 |
250 |
320 |
320 |
320 |
420 |
Max.open height between working table and ram(mm) |
500 |
500 |
560 |
560 |
560 |
560 |
625 |
625 |
1100 |
1200 |
Power of main motor(kw) |
2*11 |
2*11 |
2*15 |
2*15 |
2*22 |
2*22 |
2*37 |
2*37 |
2*55 |
2*57 |
Overall dimensions(mm) |
2*1470 |
2*4545 |
2*4000 |
2*4800 |
2*4060 |
2*6060 |
2*4050 |
2*6050 |
2*6050 |
2*8050 |
Weight of machine(kg) |
2*10200 |
2*11900 |
2*19200 |
2*20000 |
2*22000 |
2*27020 |
2*29950 |
2*42000 |
2*130000 |
2*190000 |
We can supply various specifications of the hydraulic pipe bending machine,Hydraulic Press Brake,Plate Shearing Machine & Rolling Machine,with or without CNC,power press machine,west baler machine and packing machine and the blades for the machines,according to customers' requirements.
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment,Machine Tool Fittings, Bending Machine Dies,Punch Dies & Cutting tools.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
| Container Inspection |
Container is to be free of holes, vents closed, door seals in good condition to keep moisture out. |
Container Bracing:Shearing Machine is to be strapped with wire or webbing to ensure it evenly within the container. |
If wood is used, it must be heat treated and must comply with U.S. regulations. |
|
Container Packaging: Wrapped in plastic to protect from getting wet.
|
1) How about your machine quality?We are worry about the quality.
RE: LVD-CNC is a new barand in CHINA, but before we start we did research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard. our machines distribute worldwide to about 40 countries. And where are our machines, there are good reputation and terminal user satisfaction.
2) Whether the machine price can be more discount?
RE: We always provide high quality machine, oversea market is more imoprtant and difficult than domestic market as the communication time costing after sales, so as always, our machine has strict quality standard to make sure the machine can work more than the real warranty period. In this way, we will save a lot of energy and think in advance for the clients.
We are sure to provide quality=price and price=quality products. The matched price and acceptanle for the clients and durable for our machines we welcome your negotiate with us and get a good satisfaction.
3) How to reach our factory?
RE: Our factor is about 310km far away from Shanghai. You can come here by train or fly to Nanjing Lu Kou airport derectly. We will pick you up from the train station or airport.
| Technical Service |
|
Our techinician is available to give you technical helping or offer training of how to use our machines. As well, you can also send your technician to our company to learn how to operate machines.
|
| Quality Guarantee |
|
We provide two years warranty. We sign the agreement with detailed technical data.
|
| Long term cooperation |
|
If we keep a long term cooperation, there will be more discout.
|
| Problem solving |
| We will provide solution in one day. |
| We will solve complains in two days. |
