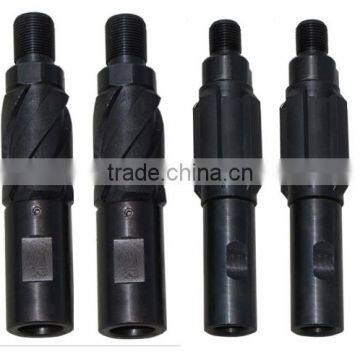

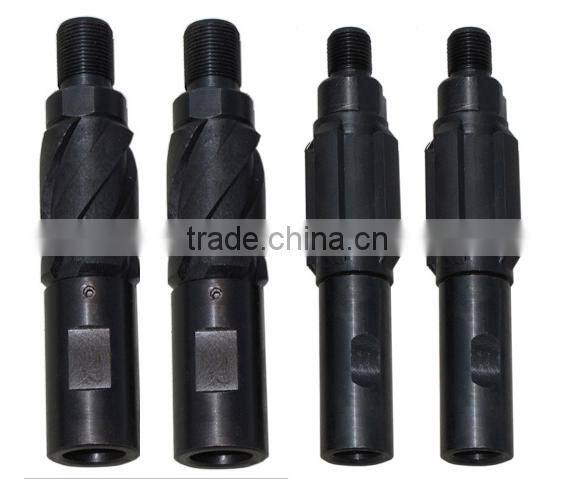

API standard sucker rod centralizer
Sucker-rod centralizers also may be called paraffin scrapers or rod guides. They keep the rods and couplings away from the tubing to decrease wear. However, special mechanical paraffin scrapers have been developed to also aid in keeping paraffin off the tubing and most of the sucker-rod length.
Rod centralizers with full-bore-fluted centralizers should be placed on or between the pump-handling pony rod, the sinker bars used above the pump, and the first two sucker rods above the sinker bars. Rod centralizers in these locations help stabilize the pump and valve rod and prevent valve-rod bending or breakage. When a tubing anchor is not used, rod centralizers will reduce tubing wear because of tubing helical buckling on the upstroke. Rod centralizers also may be used in crooked holes in which there are areas of concentrated tubing wear.
Feature
1) Standard: API 11B
2) API and ISO certified
3) Specification: 16mm, 19mm, 22mm, 25mm, 28mm

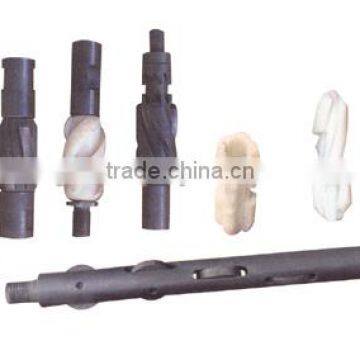

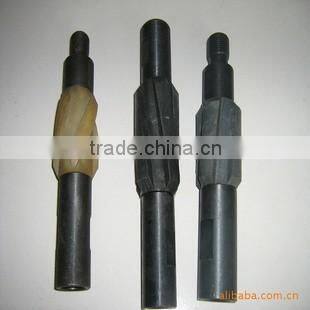

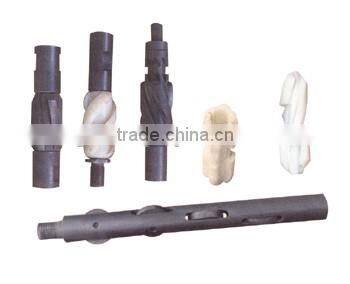

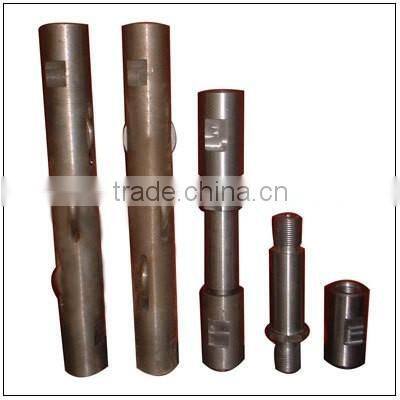

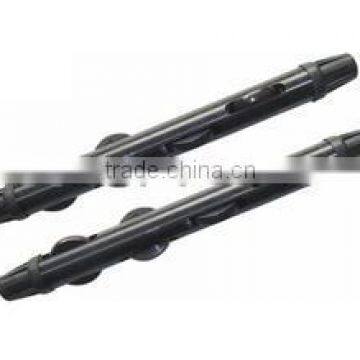

4) Type: Coupling Rod Guide, Wheeled Rod Guide, Clamp Rod Guide
Description

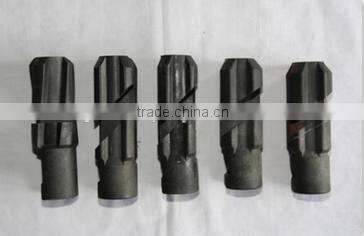

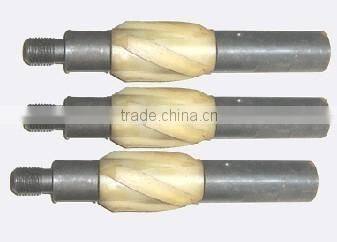

Sucker Rod Guide, or Sucker Rod Centralizer, used in pumping well, is a tool which can set upright the sucker rod, and protect the sucker rod from wiping with tubing pipe.
Application
By centralizing the rod, the guide acts as a wear resistant bushing, preventing the rod from wearing through the production tubing. Rod and production tubing contact is increased in deviated wells and horizontally drilled unconventional shale wells. Rod guides, used in wells with server deviation or with pumps set beyond the kickoff point in horizontally drilled wells, increase mean time between failure, decrease artificial lift cost, and increase well profitability.
How to work

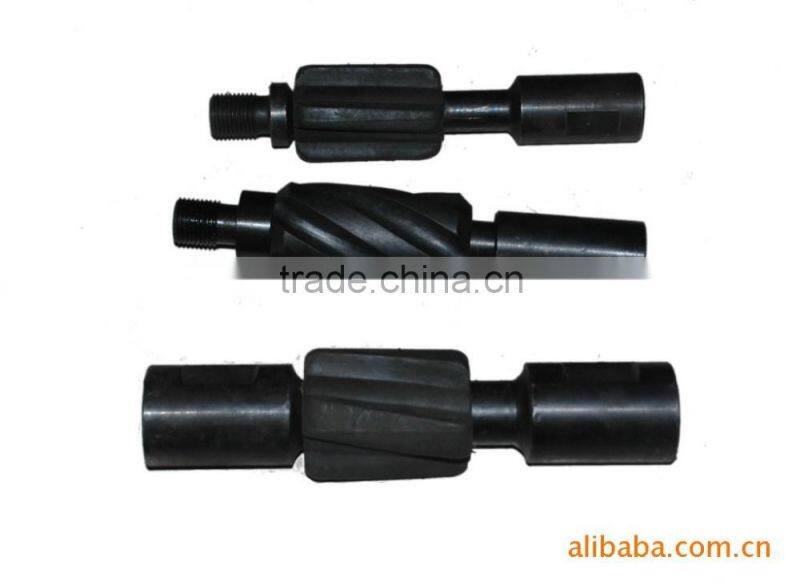

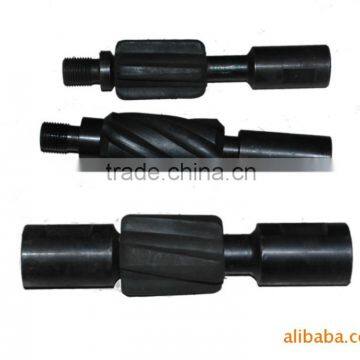

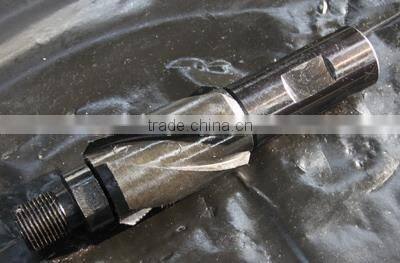

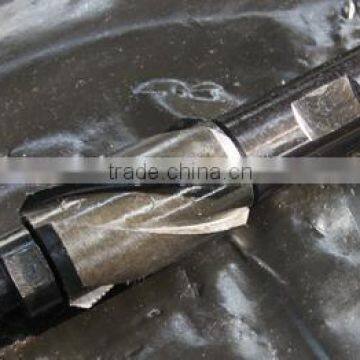

It connect with sucker rod, the centralizer casing OD is larger than the sucker rod coupling OD in order to centralizer rod. Centralizer casing has high strength wear resistant, so when contact with oil tube, makes the centralizer body wearing and reduces oil tube wearing so as to anti-wear (centralizer casing temperature resistant: 260°C, material: self-lubricating Ni-p plating material). The steel surface adopt Ni-p plating (the anti-corrosion technology) makes the centralizer has the ability of anti-wear and anti-corrosion. And it also suitable for the worse corrosion well condition.
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
Introduction:

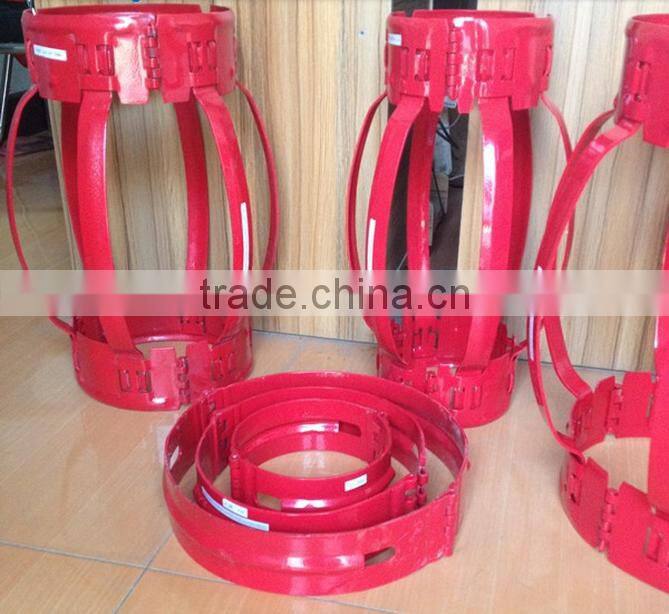

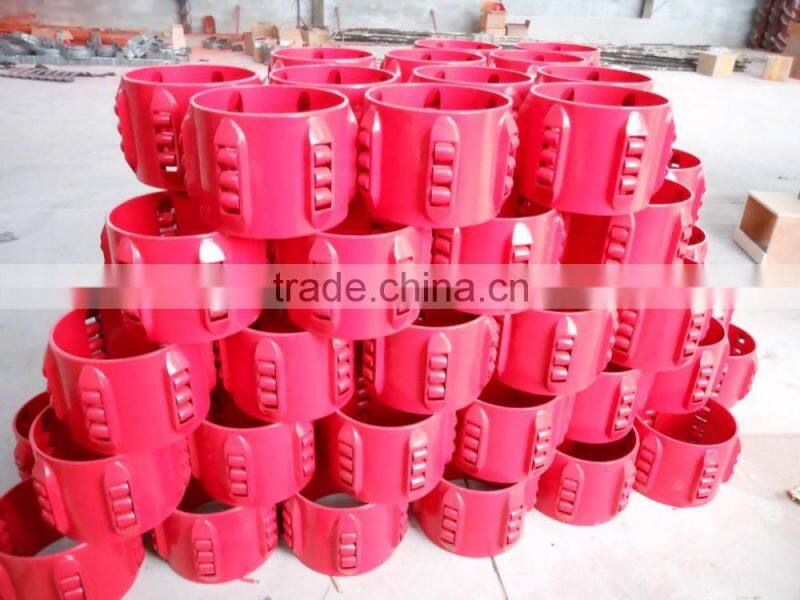

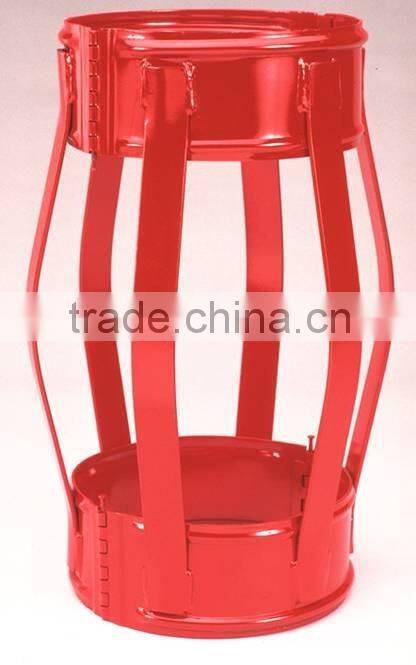

Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories like bow spring centralizer, solid rigid centralizer,float equipment, cementing plug etc.

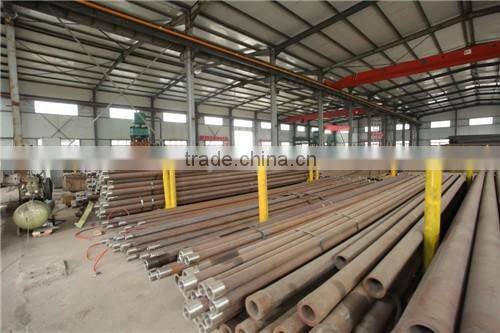

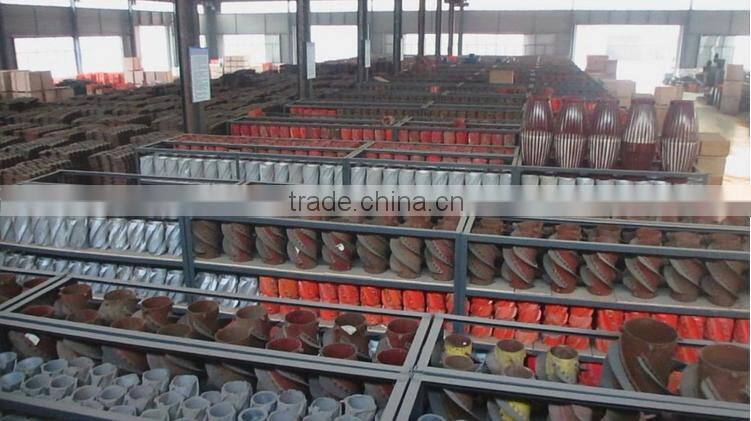

We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc
Our products mainly include:
1.Full Series of Pumping Units
2. Tubing Pump/Sucker Rod Pump and Accessories
3. Float Collar & Float Shoe
4. Casing Centralizer
5. Cementing Plug
6. Cementing Head
7. Stage Collar
8. Casing/Tubing and Coupling
9. Drill Pipe

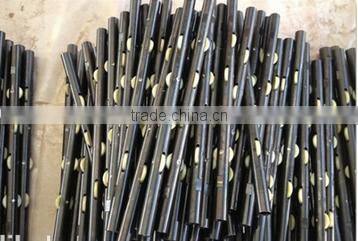

10. Sucker Rod
11. Air Blaster
12. Sucker Rod Guide
