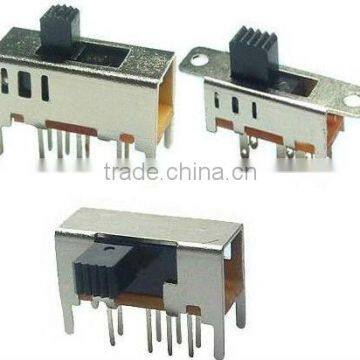

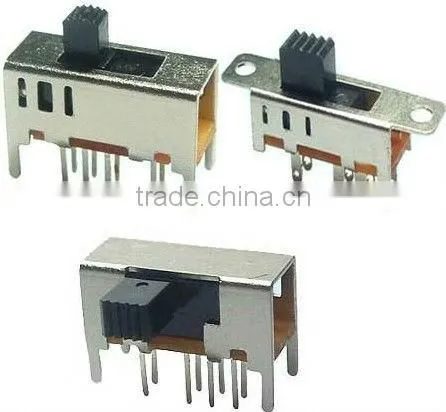

2 Ways and 3 Ways Upright Slide Switch

FOB Price

USD $0.01 - $1 / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

2 Ways and 3 Ways Upright Slide Switch
1.Rating:0.3A 50V DC
2.Lifespan:10,000Cycles
3.Contact resistance:30m max

Model No:MK,MS,PS,SK,

Specification
Mini Slide Switch	Specification
Rating	0.3A 6V DC
Contact resistance	30mΩ max
Insulation resistance	100MΩ min at 500V DC
Withstand Voltage	AC 1500V for 1 minute
Lifespan	10,000Cycles. Unloading 15-18 cycles per min
Practical temperature range	-25 to 85 degrees Celsius
Certification	UL,VDE,ENEC,CSA,TUV,CE,EMC,CQC,CCC
Certification	UL,VDE,ENEC,CSA,TUV,CE,EMC,CQC,CCC
[Warm Tips]All information above is for reference only; Particulars of all items are base on individual specification.

Regarding to our products:

More than 2,000 models of switches and sockets.

Monthly production capacity: 30 million pieces.

MOQ: 1,000pcs, it’s negotiable.

Good quality with competitive price.

We can offer free samples with shipping and taxes pay by the buyer.

Various operation force, height, and color for your choice.

The discount depends on your order quantity.
