Help CenterKC 7.0mm 3PINS Slide Switch Electrical Switch Pcb Mount Slide Switch SS-12E10
Related Products
-
10.0mm Long Terminals Slide Switch SS-12E11US$ 0.09 - 0.1MOQ: 1000 Pieces -
KC Microphone SWITCH 3PINS AC Slide Switch SS-12E07US$ 0.08 - 0.1MOQ: 1000 Pieces
-
Miniature Slide SwitchesUS$ 0.01 - 1MOQ: 1000 Pieces
-
Spdt Vertical PCB Slide SwitchUS$ 0.01 - 1MOQ: 1000 Pieces
-
Low Power Slide Switch SpdtUS$ 0.01 - 1MOQ: 1000 Pieces
Our main products:
slide switch,push button switch,rocker switch,tact switch,hook switch,micro switch,leaf switch,DC/AC power jacks etc.
Our main certification:
UL,VDE,ENEC,CSA,TUV,,CE,EMC,CQC,CCC,etc.

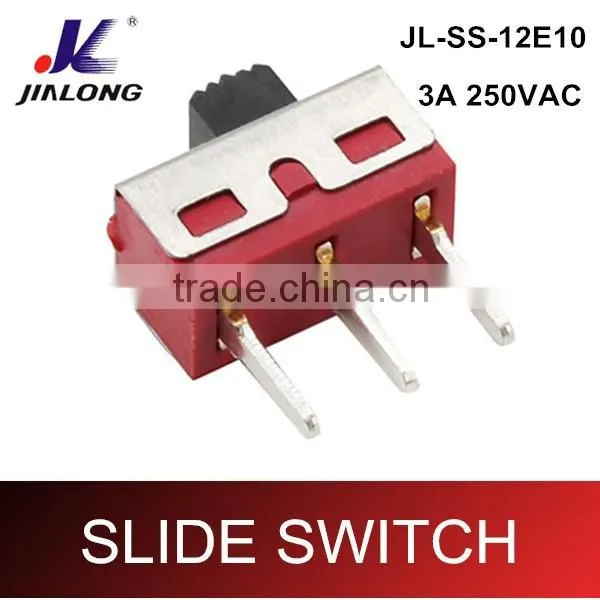

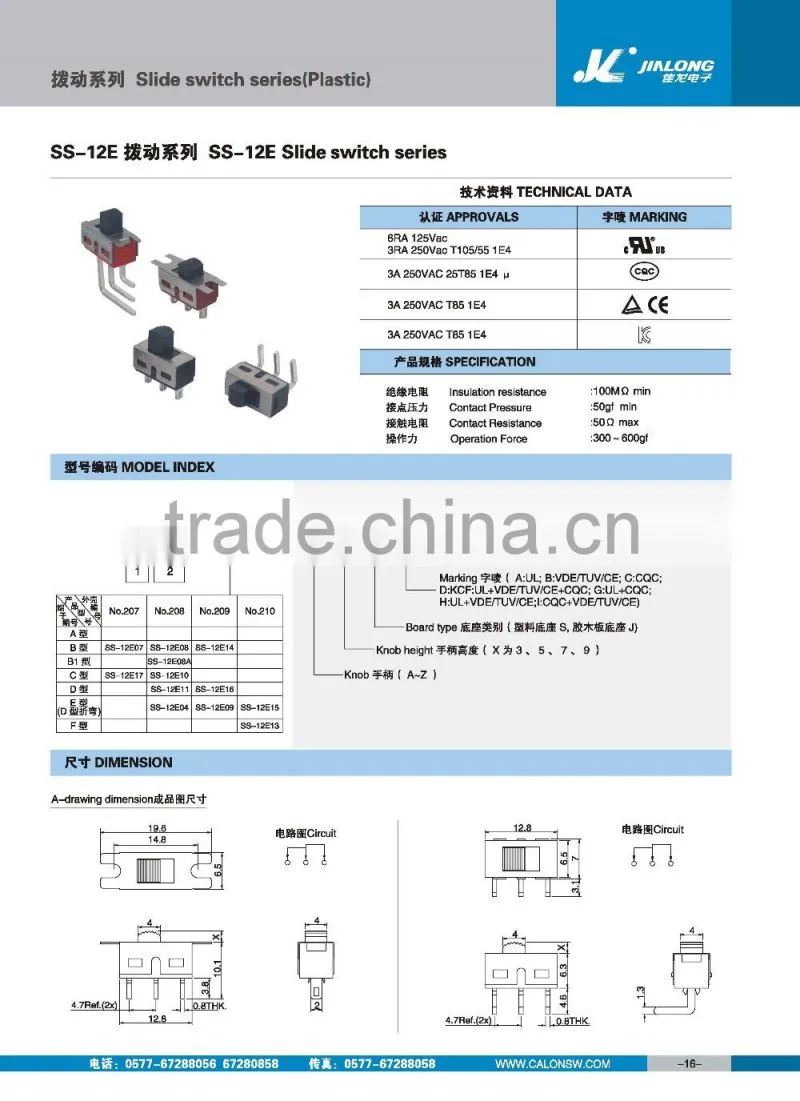

slide switch SS-12E10
| rating | DC 250V 3A |
| Contact Ressistance | 30m Ω max |
| Insulation Voltage | 100m Ω MIN at DC500V |
| Withstand voltage | AC 500V for 1 minute |
| operating Life | 10000 cycles(15-18cycles/minute, unloading) |
| Optional Knob | GT 2-7 |
PS. Free Samples are available
Specification |
||
Mini Slide Switch |
Specification |
|
Rating |
0.3A 50V DC |
|
Contact resistance |
30mΩ max |
|
Insulation resistance |
100MΩ min at 500V DC |
|
Withstand Voltage |
AC 1500V for 1 minute |
|
Lifespan |
10,000Cycles. Unloading 15-18 cycles per min |
|
Practical temperature range |
-25 to 85 degrees Celsius |
|
Certification |
UL,VDE,ENEC,CSA,TUV,CE,EMC,CQC,CCC |
|
[Warm Tips]All information above is for reference only; Particulars of all items are base on individual specification. |
||
Regarding to our products: |
More than 2,000 models of switches and sockets.
Monthly production capacity: 30 million pieces.
MOQ: 1,000pcs, it’s negotiable.
Good quality with competitive price.
We can offer free samples with shipping and taxes pay by the buyer.
Various operation force, height, and color for your choice.
The discount depends on your order quantity.
