2016 Top Quality and Durable Small Scale Edible Oil Refinery Equipment for Sale
Brief Introduction of Huatai Company:
Henan Huatai Cereals & Oils Machinery Co., Ltd. (short for HHFOME) is located in the Industry cluster of Huaxian, Henan Province which covering 100,000.00 square meters and have more than 580 staffs. We are a large scale grain and oil equipments production enterprise which specialized in researching, designing, manufacturing, installation. Since now we have got 22 items national patents, 6 international prizes, etc. Our equipments have been got ISO9001, SGS, CE, IAF and CNAS certifications. Also we have been exported to Bolivia, Sudan, Kazakhstan, Russia, Tajikistan, Malaysia, Indonesia, Bangladesh, Vietnam, Thailand, Burma, etc. All of our members will try our best to help you build a powerful and most suitable plant to save your costs and get max benefits.
Application:
This small oil refining unit mainly has three models according to different capacity: 1TPD, 2TPD, 3TPD. It can be used to refine many kinds crude oil like sunflower oil, peanut oil, soybean oil, cottonseed oil, palm oil, rice bran oil, etc.
This oil refining unit is for batch refining, with fuctions of big and small scale batch refining equipment.
This oil refining unit is combined with the complete set of equipment. It has its own heat source, electrical control, with features of light weight and electricity saving. Only turning on power and connecting water, prepare little coal or firewood, caustic soda, phosphoric acid,bleaching clay and other materials, the equipment can be operated.
Flow Chart:
H3PO4 Caustic soda Hot water Clay
↓ ↓ ↓ ↓
Crude oil→→→→→Alkali Refining →Water Washing →Bleaching →
Filtration Vacuum
↑ ↓
→→→Deodorization →Refined oil
Main Equipment of Small Scale Edible Oil Refinery Equipment:
Neutralizing kettle: Used for acid refining, alkali refining and water washing.
Bleaching pot: Used for bleaching oil and removing the pigment from the oil
Deodorization pot: Used for removing the odor from the oil (made of stainless steel).
Conduction oil furnace: Providing the heat power for production, temperature can reach 280℃.
Vacuum pump: Providing the vacuum condition for bleaching and deodorization process, it can reach more than755mmHg.
Air compressor: Used for drying the bleaching clay and pressing the refined oil.
Filter: Used for filtering the clay.
Steam generator: Generate the needed steam for deodorizing process.
Conduction Oil Furnace
Operating Instructions of Refining:
♦Testing the crude oil to know the acid value and color, if available can do sample test in laboratory.
♦Connecting with the cooling water.
♦Prepare the clay, industrial alkali Lye and coal.
♦Connecting with the electric power
♦Check the vacuum pump, air compressor, filter and conduction oil pump of Small Scale Edible Oil Refinery Equipment.
to see whether they’re normal.
♦Every time for changing the conduction oil, it needs to heated for 5 hours at temperature of 98℃ to remove the water, if no water vapor overflow in head tank, can raise the temperature slowly to 280℃.
♦Everything is all ready. You can add oil to do refining.

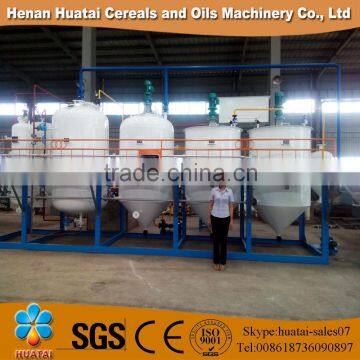

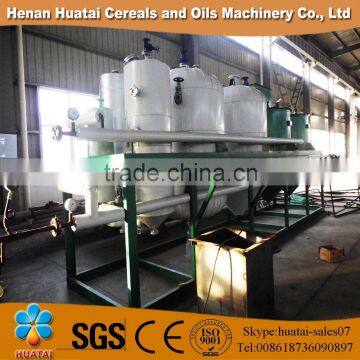

3TPD Small Scale Edible Oil Refinery Equipment
Small Scale Crude Palm Oil Refinery in Workshop without Painting
The followings are the equipments of our company:
Main Projects Scope:
-----30-5000T/D oilseeds pretreatment project
-----30-5000T/D oilseeds extraction project
-----10-500T/D crude oil refining project
-----10-500T/D crude oil fractionation project
-----Oil interesterification project
-----Oilseeds protein, phospholipid project
-----Natural pigment extraction project
-----Grain deep processing project
Typical Project:
----30-1000T/D rice bran pretreatment, expanding, extraction project
----30-600T/D rice bran oil refining project
----150-1000T/D cottonseed dephenolizing protein
----10-1000T/D palm fruit oil pressing project
----10-500T/D Non acid method biodiesel production project
----10-2000T/D corn deep processing project
Newest Technology:
---Energy saving oil vacuum deodorization technology
---Concentrated protein extraction technology
---Mixed oil extraction technology
---Mixed oil refining technology
---Molecular distillation technology
---Broken rice desaccharification technology
---Continuous lignite extraction technology
Production Base of Huatai Company
Part Pictures of Delivery Site
Part Pictures of Foreign Customers' Visiting
If u want to know more details about our factory and Small Scale Edible Oil Refinery Equipment, please don't hesitate to contact me. All of our team members will try our best to help u build the most suitable plant. Waiting for you!!!
