Help Center1P2T Miniature Slide Switch SS-12F24
Related Products
-
SS-12D00 G3 2 Position SPDT 1P2T 3 Pin PCB Panel Vertical Slide Switch For Electrical Appliance SS-12D00US$ 0.01 - 0.012MOQ: 1000 Pieces -
Industrial Slide Switch SS-23N02US$ 0.1 - 0.2MOQ: 1000 Pieces
-
10PINS Slide Switch SS-24N02US$ 0.1 - 0.2MOQ: 1000 Pieces
-
UL 6A 250VAC T85/55 1E4 22.5X14mm 7.5mm 2P2T Slide Switch SS-22H01US$ 0.01 - 1MOQ: 1000 Pieces
-
6A 250V 1P2T Power Slide Switch SS-12H02US$ 0.07 - 0.075MOQ: 1000 Pieces
Our main products:
slide switch,push button switch,rocker switch,tact switch,hook switch,micro switch,leaf switch,DC/AC power jacks etc.
Our main certification:
UL,VDE,ENEC,CSA,TUV,,CE,EMC,CQC,CCC,etc.

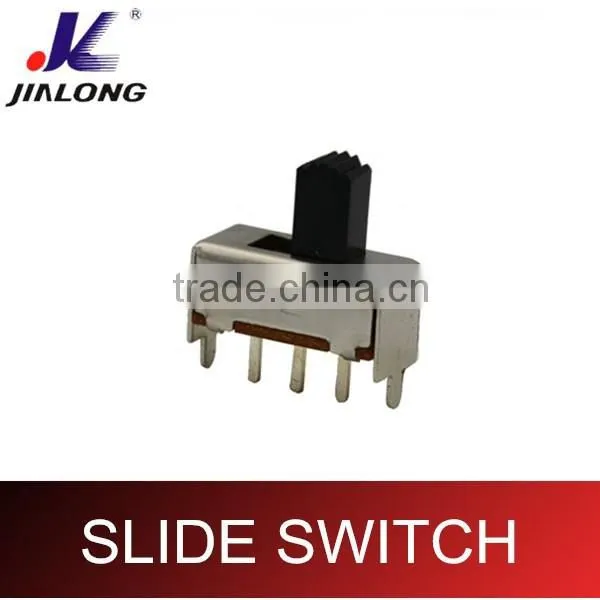

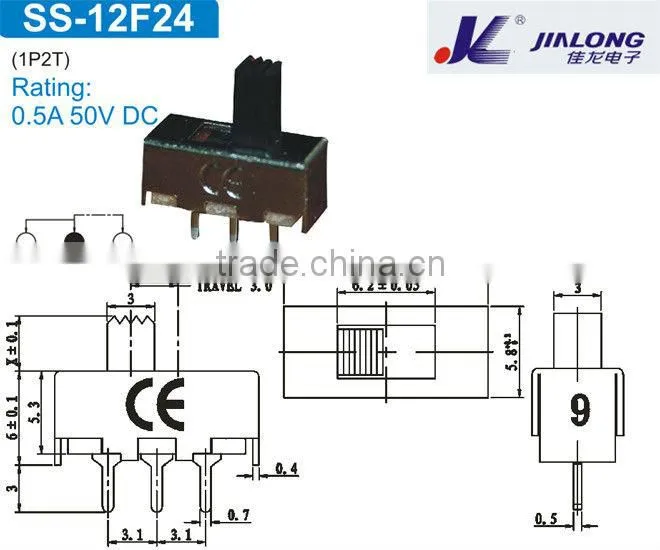

slide switch SS-12F24
1) Rating: 0.5A 50V DC
2)Contact resistance: 30m Ω max.
3)Insulation Resistance: 100M Ω at 500V DC
4)Withstand Voltage: AC 500V for 1 minute
5)Operating Force: as per individual specification
6) Switching LIfe: 10,000 cycles min. Unloading 15~18 cycles per min.
PS. Free Samples are available
JL vertical slide switch ss-12D00
Model No:SS-12D00
Specification |
||
Mini Slide Switch |
Specification |
|
Rating |
0.3A 50V DC |
|
Contact resistance |
30mΩ max |
|
Insulation resistance |
100MΩ min at 500V DC |
|
Withstand Voltage |
AC 1500V for 1 minute |
|
Lifespan |
10,000Cycles. Unloading 15-18 cycles per min |
|
Practical temperature range |
-25 to 85 degrees Celsius |
|
Certification |
UL,VDE,ENEC,CSA,TUV,CE,EMC,CQC,CCC |
|
[Warm Tips]All information above is for reference only; Particulars of all items are base on individual specification. |
||
Regarding to our products: |
More than 2,000 models of switches and sockets.
Monthly production capacity: 30 million pieces.
MOQ: 1,000pcs, it’s negotiable.
Good quality with competitive price.
We can offer free samples with shipping and taxes pay by the buyer.
Various operation force, height, and color for your choice.
The discount depends on your order quantity.
