Help CenterRHBM-AC,Double Seal,Upper And Down,Rod Pump
Related Products
-
RHBC Rod, Heavy Wall Barrel, Cup Bottom Anchor PumpNegotiableMOQ: 20 Sets -
TH(B)C Tubing, Heavy Wall Barrel ,Cup Type Anchor PumpNegotiableMOQ: 20 Sets
-
TH(B)M Tubing, Heavy Wall Barrel ,Mechanical Anchor PumpNegotiableMOQ: 20 Sets
-
API 11AX RHAC Rod, Heavy Wall Barrel, Cup Top Anchor PumpNegotiableMOQ: 20 Sets
-
API 11AX RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor PumpNegotiableMOQ: 20 Sets
Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff . Oil machinery is our main products, the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling solid control series products and cementing accessories.

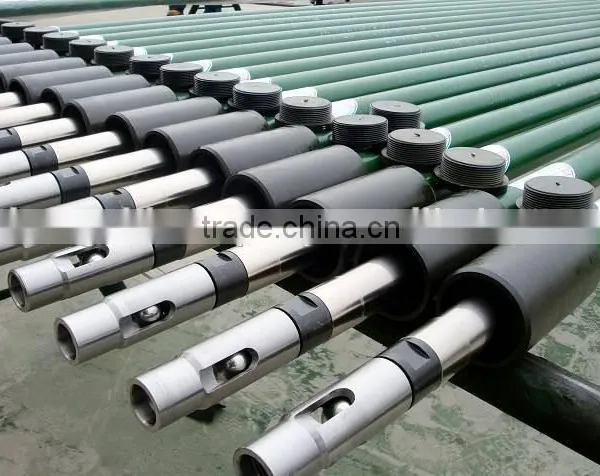

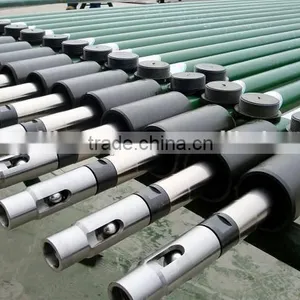

API-RHAC, Rod, Heavy Wall Barrel, Cup Top Anchor Pump
Rod pump are suspended inside the tubing with the support joint ,it is suitable for low temperature of deep well and deviated well drilling, good corrosion resistant effect. easy to operate, economical and practical, it can reduce oil field operation cost by more than 50%. It can be designed according to the customer’s well .
Product description:
Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.
Technical parameter list:
Specification |
Pump diameter (in) |
Barrel length (ft) |
Plunger length (ft) |
Stroke length (ft) |
Extension length (ft) |
Tubing size EUE(in) |
Sucker rod size |
20-125RHAC |
Ø31.75 |
2.1-10.4 |
0.3-8.0 |
1.2-9.0 |
0.3-0.9 |
2-3/8” |
CYJ16 CYJ19 |
25-150RHAC |
Ø38.10 |
2-7/8” |
|||||
25-175RHAC |
Ø44.45 |
2-7/8” |
|||||
30-225RHAC |
Ø57.15 |
3-1/2” |
