Help CenterCALON SWITCH 3 Position DPDT Mini Rocker Switch KCD1-203C-T
Related Products
-
6pins On-off 6P 6A 250V AC Illuminated Rocker Switches DPDT Double Pole Double Throw Rocker Switch KCD1-203C-TUS$ 0.1 - 1MOQ: 1000 Pieces -
4pins/waterproof/on-off/rocker Switch/DPDT/Double Pole Double Throw/ Electrical Switch 250V AC/ Rocker Switch KCD1-104US$ 0.01 - 1MOQ: 1000 Pieces
-
CAON SWITCH 3 Position Rocker SwitchUS$ 0.1 - 1MOQ: 1000 Pieces
-
6PINS DPST Mini Rocker Switch KCD1-202CUS$ 0.1 - 0.12MOQ: 1000 Pieces
-
KCD Series Rocker Switch Mini Rocker Switch IlluminatedUS$ 0.2 - 0.6MOQ: 1000 Pieces
Specifications
6PINScopper contact/silver contact
ON-OFF-ON
6A 250V AC
We specialize in rocker switch for 27years
slide switch,push button switch,rocker switch,tact switch,hook switch,micro switch,leaf switch,DC/AC power jacks etc.
Our main certification:
UL,VDE,ENEC,CSA,TUV,,CE,EMC,CQC,CCC,etc.

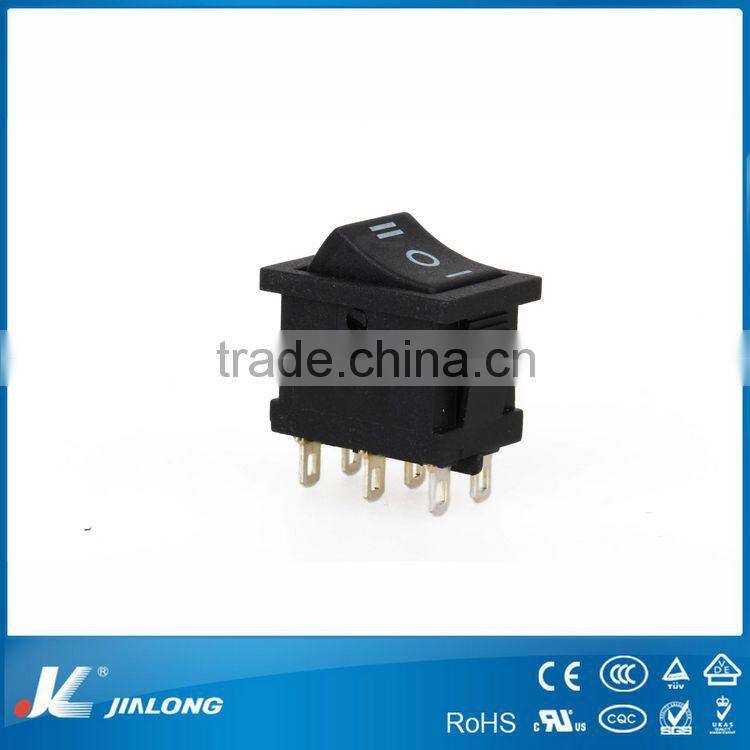

KCD1-203C-T
led switch Rocker Switch(boat switch,illuminated switch)
1. 6PINS
2. ON-OFF or ON-OFF-ON
3. black/wihte body
4. WITH LAMP
5. RoHS
6. flame-retardant materials
Rocker Switch(boat switch,illuminated switch)/ led switch KCD1-203C-T
1)Rating: 6A 250V AC
2)Contact Resistance:≤0.03Ω
3)Withstand Voltage: 1500Vac
4)Insulation Resistance:≥100MΩ
5)Switching Life: 10000-500000 cycles
6)Environmental humidity: 45%-95%
7)Color: optional
PS. Free Samples are available

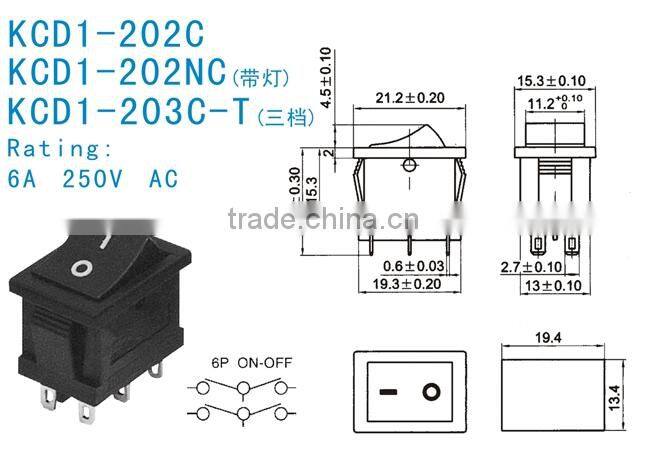

1. Drawing
KCD type Rocker Switch Series
Specification |
||
|
rocker switches |
Specification |
|
Rating |
250V 16A AC |
|
Contact resistance |
0.03 max |
|
Insulation resistance |
100M min |
|
Withstand Voltage |
1500Vac |
|
Lifespan |
10,000-50,000Cycles. |
|
Practical temperature range |
-25 to 85 degrees Celsius |
|
Environmental humidity |
45%-95% |
|
Certification |
UL,VDE,ENEC,CSA,TUV,CE,EMC,CQC,CCC |
|
[Warm Tips]All information above is for reference only; Particulars of all items are base on individual specification. |
||
Regarding to our products: |
More than 2,000 models of switches and sockets.
Monthly production capacity: 30 million pieces.
MOQ: 1,000pcs, it’s negotiable.
Good quality with competitive price.
We can offer free samples with shipping and taxes pay by the buyer.
Various operation force, height, and color for your choice.
The discount depends on your order quantity.
