3 position switch 6pins waterproof momentary switch rocker switch KCD4-203A
- 100000 Piece / Pieces per Month
- shanghai/ningbo
- T/T Credit Card
You May Like
-
mini round red button rocker switch withlight ON-OFF 2pins dia 16.4mm 3A 250V
-
led/4pins/6pins/waterproof/on-on/rocker switch/DPDT/Double pole double throw/ KCD4-202A/16A 250V AC/switch
-
Rocker switch manufacturer
-
4pins 6pins rocker switch with lamp/light illuminated on-on double button DPST big current 6P 16A 250V AC KCD4-202NC-2
-
3pins red light white body 6A illuminated rocker switch for LIQUID VAPORIZER
-
2pins 3pins on-on 3P on-off-on 6A 250V AC rocker switch KCD1-102N
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JL | |
| Model Number | KCD4-203A | Max. Current | 16A | |
| Max. Voltage | 250V | Mechanical Life | 50000 |
Product Description
Our main products:
slide switch,push button switch,rocker switch,tact switch,hook switch,micro switch,leaf switch,DC/AC power jacks etc.
Our main certification:
UL,VDE,ENEC,CSA,TUV,,CE,EMC,CQC,CCC,etc.

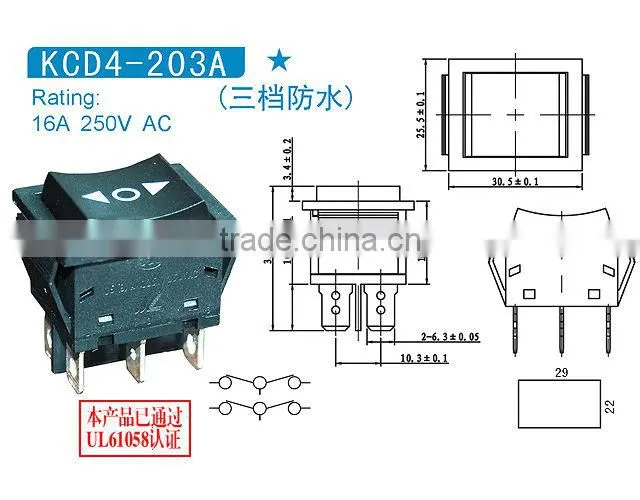

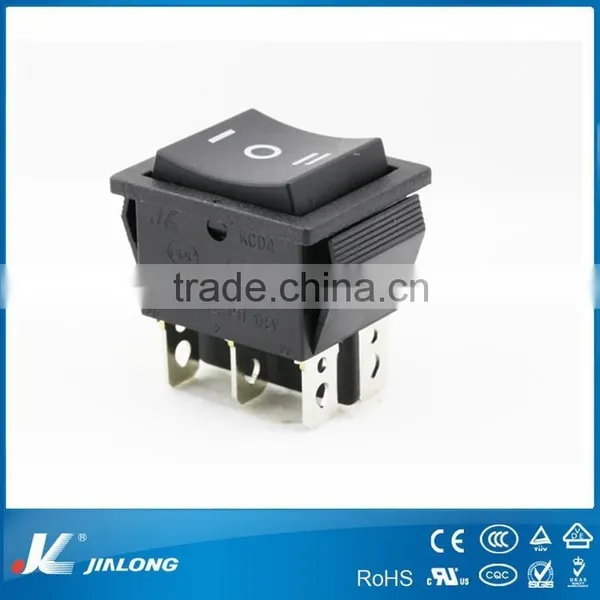

KCD4-203A
led switch Rocker Switch(boat switch,illuminated switch)
1. 6pins
2. ON-OFF-ON
3. waterproof
4. RoHS
5. flame-retardant materials
6. Certificates: CQC CE SGS CB UL

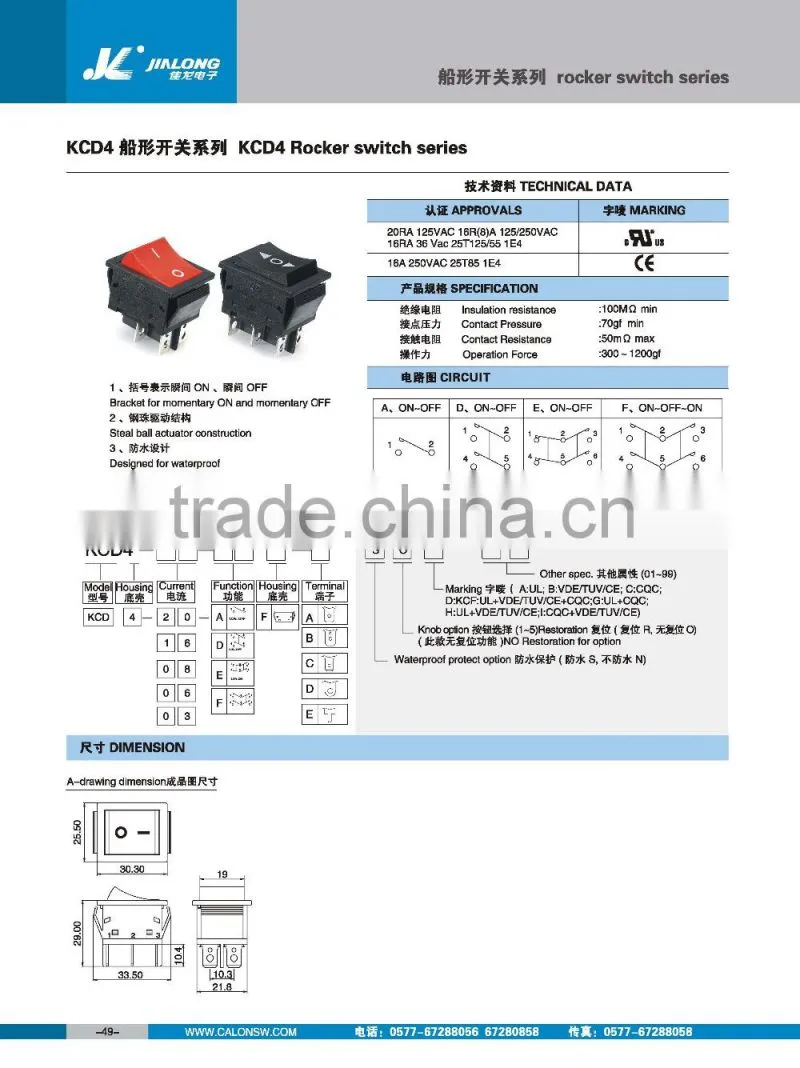

Rocker Switch(boat switch,illuminated switch)/ led switch KCD4-203A
1)Rating: 16A 250V AC
2)Contact Resistance:≤0.03Ω
3)Withstand Voltage: 1500Vac
4)Insulation Resistance:≥100MΩ
5)Switching Life: 10000-500000 cycles
6)Environmental humidity: 45%-95%
7)Color: optional
PS. Free Samples are available
All products are RoHs REACH approved
High quality, stable performance, competitive price, good service.
Warmly welcome to your enquiries.
OEM and ODM orders are also welcomed.
