Low Price 2016 New J23-100 ton Mechanical Power Press Machine/ Sheet Mental Punching Machine With 5 Years Warranty
LVD-CNC JB23 Series Presses is one of the new generation of plate process and developed by our company, The press is for cutting, punching, blanking, bending and light stretching work.
Feature and Characteristics
| 1.C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Steel-welded frame, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application. |
| 2.Wide body frame eliminating vibration for improved ide life and machine, which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple beautiful. |
3.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. |

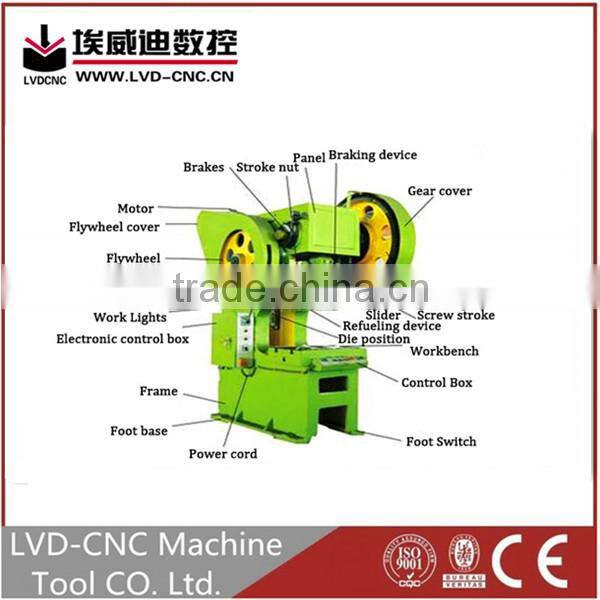

Mainly Components of Low Price 2016 New J23-100 ton Mechanical Power Press Machine/ Sheet Mental Punching Machine With 5 Years Warranty
|
|
| |
Transmission control and brake system
| 1.The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production. |
| 2.Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment. |

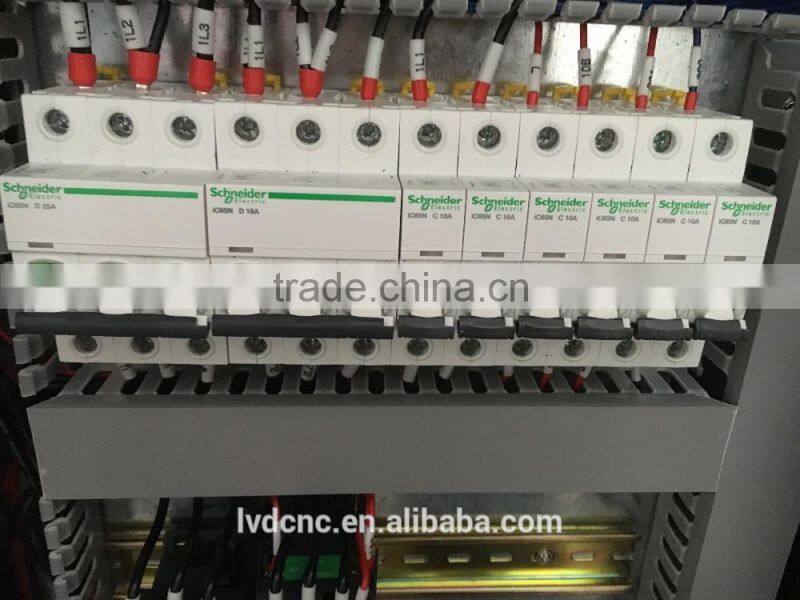

| 3.Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring. |
| 4.Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine. |

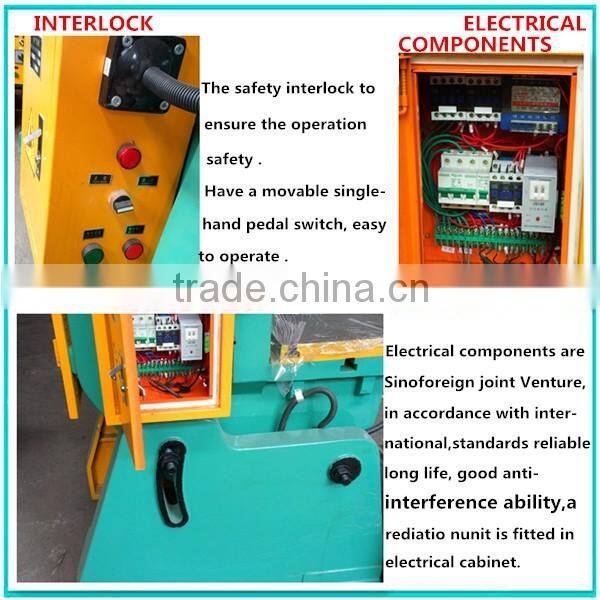

| 5.Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards. |
Ram adjustment and structure
| 1.Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance. |
| 2.Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage. |
Function
| B23 C-frame Inclinable Power Press are widely used in electronics, communications, computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming. |
Parameter of J23-100
| MODEL | J23-100 | |
| Nominal pressure | 1000KN | |
| Slipper Stroke | 130mm | |
| Slipper stroke times | 45min-1 | |
| Max closing height | 380mm | |
| Connecting rod adjuster | 100mm | |
| Distance between slipper center and machine | 280mm | |
| Work bench dimension | Front&Back | 540mm |
| Left&right | 840mm | |
| Diameter of blank-holding hole | Front&Back | 200mm |
| Left&right | 370mm | |
| Diameter | 300mm | |
| Slipper underside bore | Front&Back | 270mm |
| Left&right | 360mm | |
| Size of die handle bore | Diameter | 60mm |
| Depth | 80mm | |
| Pole distance | 380mm | |
| Workbench distance from the ground | 510mm | |
| Thickness of spacer | 100mm | |
| Angle of inclination | 20mm | |
| Motor Power | Power | 7.5KW |
| Round speed | 1440mm-1 | |
| Dimension | Front&Back | 1800mm |
| Left&right | 1360mm | |
| Height | 2850mm | |

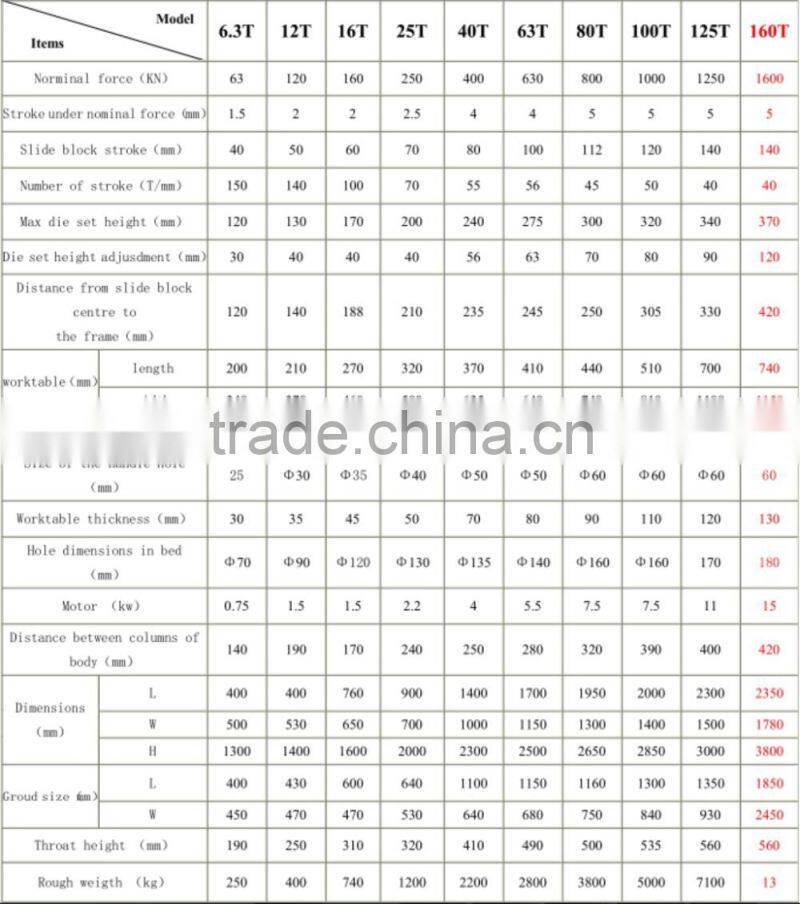

Specifications of J23 Open-Type Mechanical Power Press, a variety of models are available.

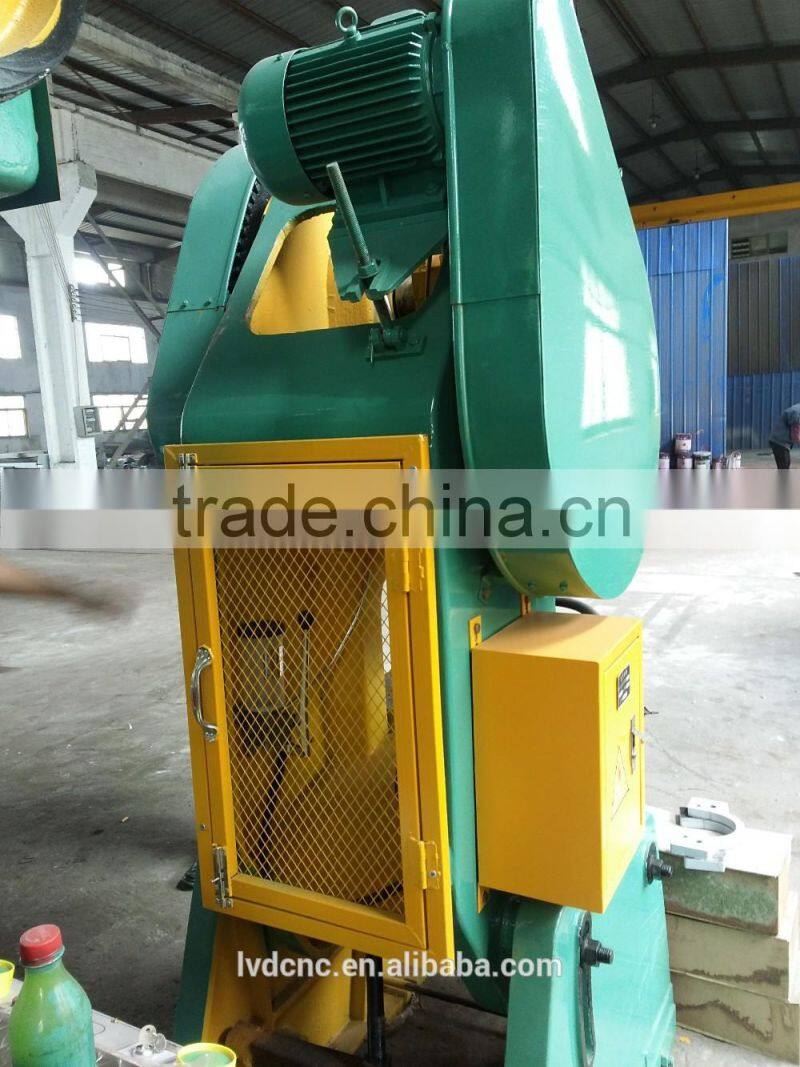

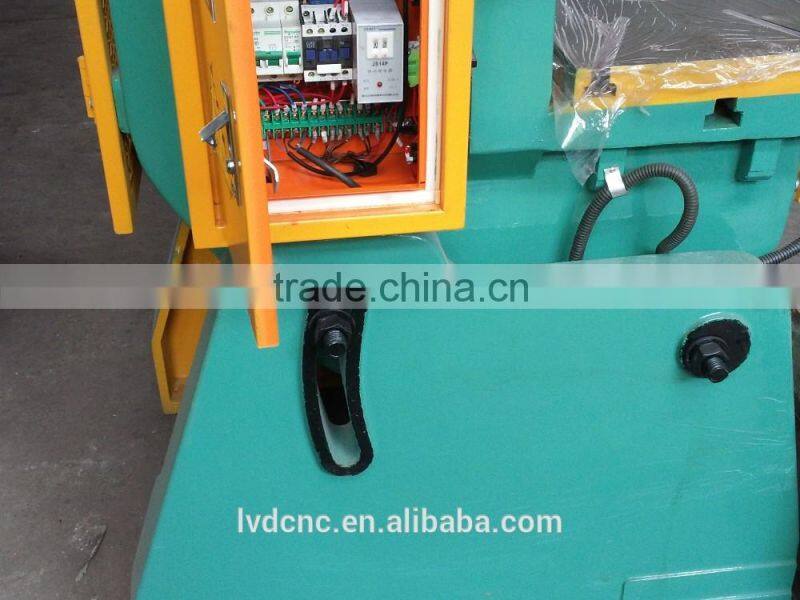

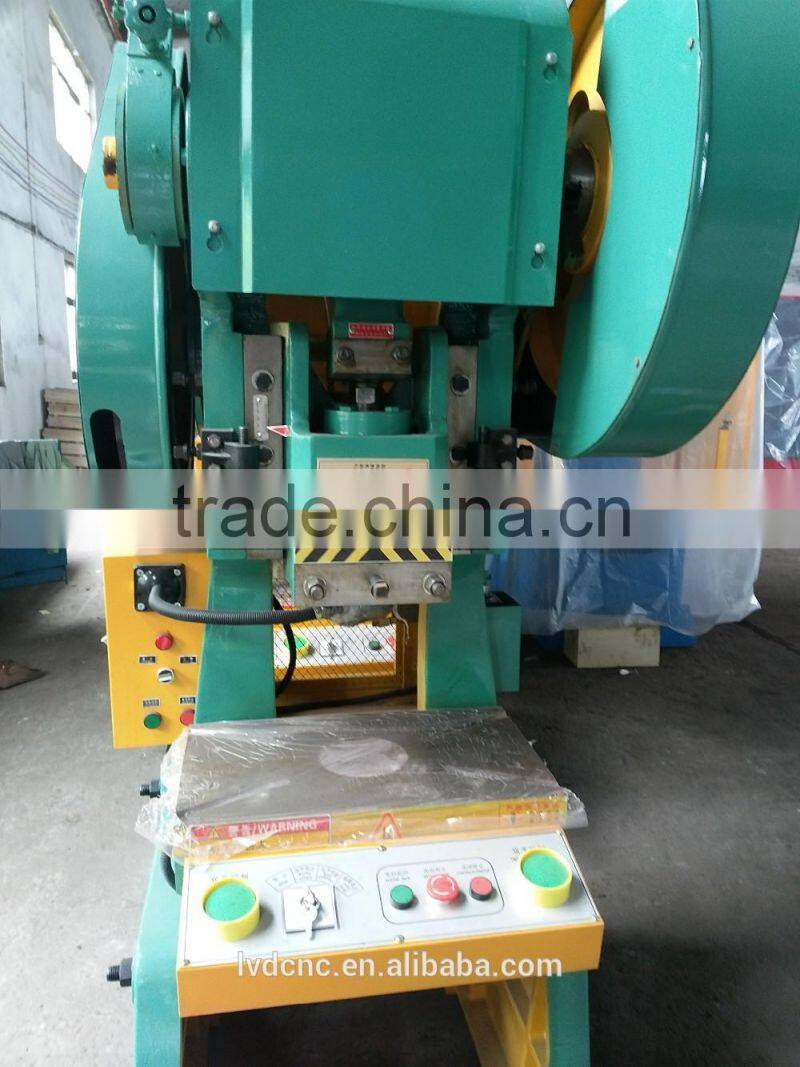

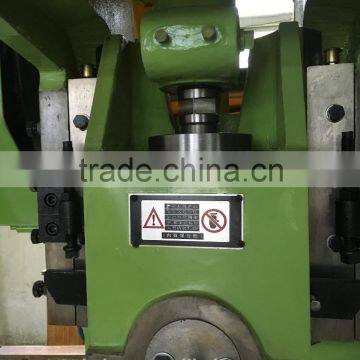

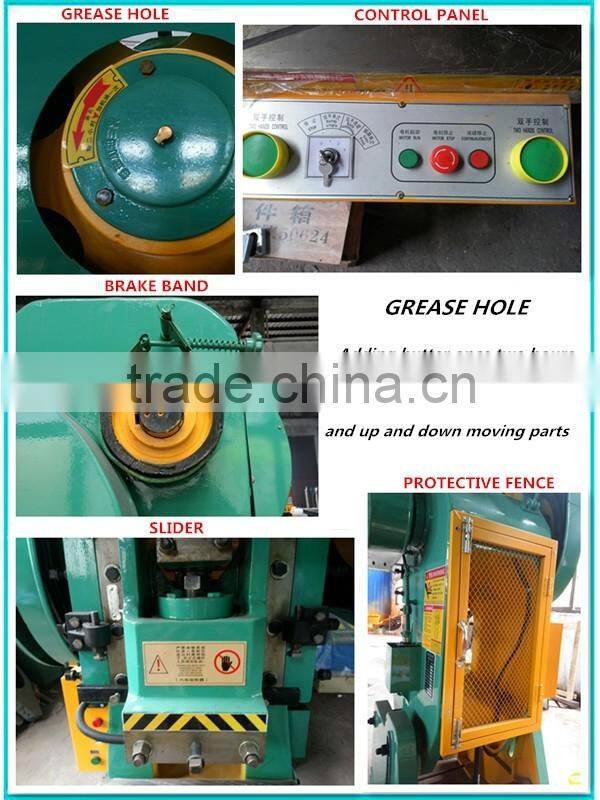

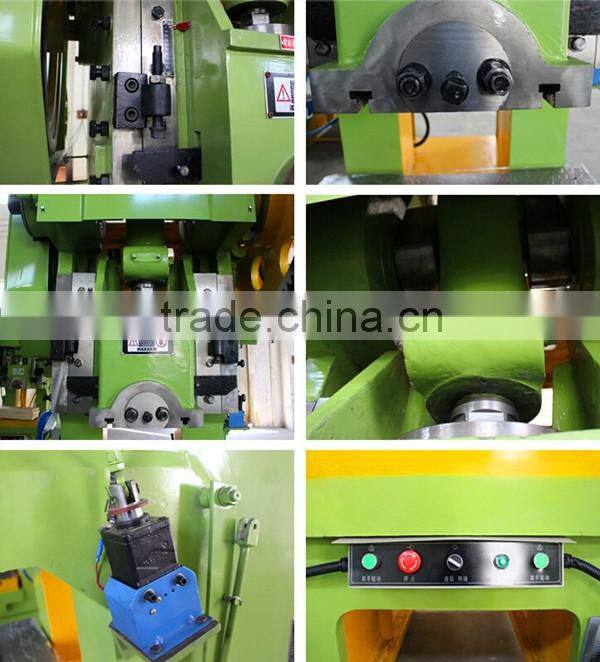

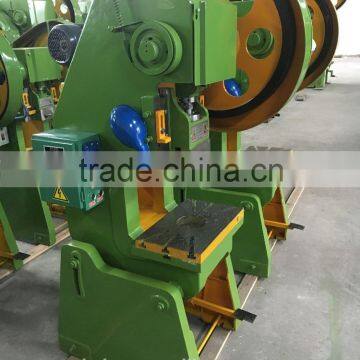

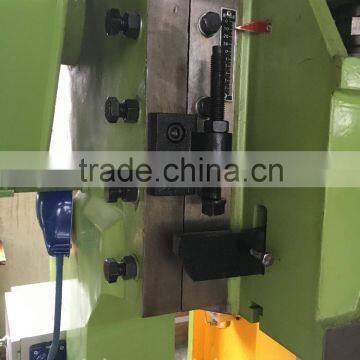

Images of Low Price 2016 New J23-100 ton Mechanical Power Press Machine/ Sheet Mental Punching Machine With 5 Years Warranty
| |
| |

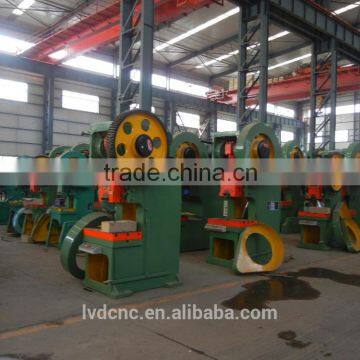

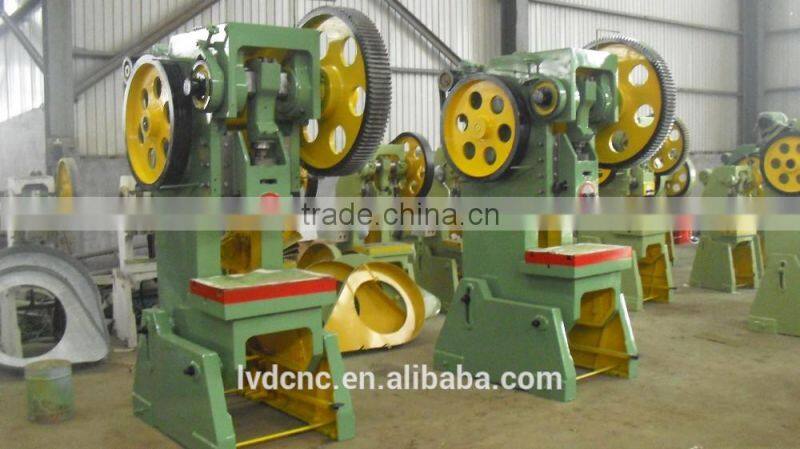

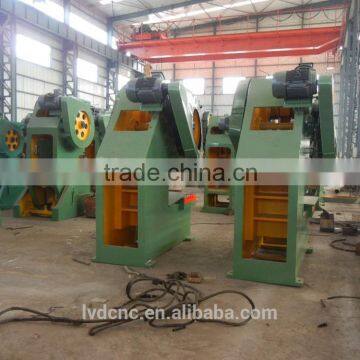

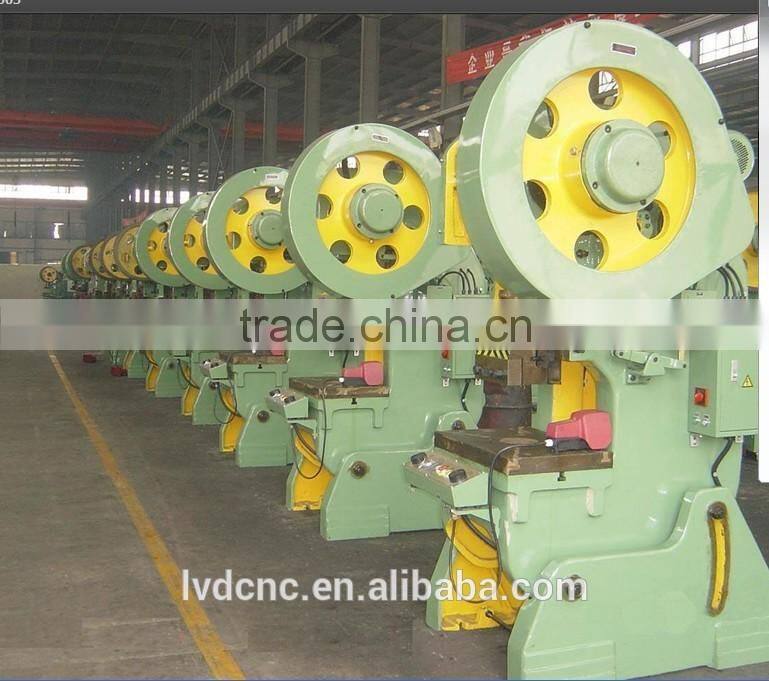

Our Power Press Factory
Low Price 2016 New J23-100 ton Mechanical Power Press Machine/ Sheet Mental Punching Machine With 5 Years Warranty

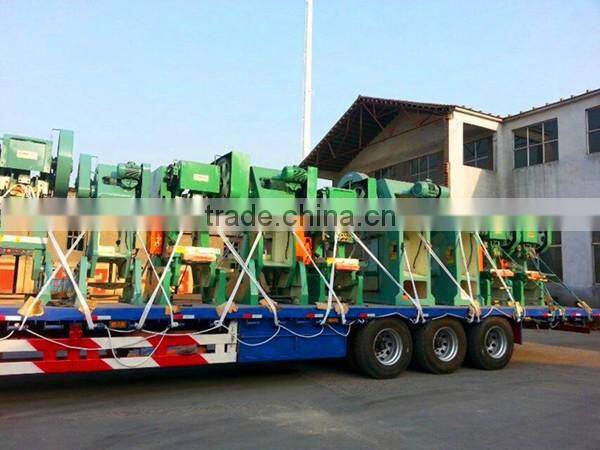

Package Type: wooden package or can be adjust for the machine's safety.
Container Packaging: Wrapped in plastic to protect from getting wet.
| Packaging Details: | 1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied. 2)before loading,stable package,professional and skilled loader reduce damage of product during transport. 3)after loading,our professional documentary staff will follow the order till the product departs from port. |
| Delivery Detail: | 30 days after payment |
Low Price 2016 New J23-100 ton Mechanical Power Press Machine/ Sheet Mental Punching Machine With 5 Years Warranty
- Inquiring&consulting Service:24 hours online to reponse in 2 hours,provide solution in one day and solve complaint in 2 days.
- Technical Sevice: Engineers available to serive machinery overseas. We dispatch technician to customer's factory for installations and preoperation of machines.(costomers only need to pay airfare and hotel)
- Quality Guarantee Sevice:We provide 5 years warranty. We sign the agreement with detailed technical data.
- Long cooperate Serive:A discount for a long cooperate and your visit to our factory is welcome.
Low Price 2016 New J23-100 ton Mechanical Power Press Machine/ Sheet Mental Punching Machine With 5 Years Warranty
ABOUT LVD-CNC
LVD-CNC is totally focused on providing a line of products and support to maximize the productivity of Sheet metal machinery.
For over 16 years, LVD-CNC has specialized in CNC Press Brake, Guillotine and Laser Cutting and Punching to provide a complete sheet metal production workshop and improve accuracy of the productivity.
The company has a global network of over 15 appointed distributors trained to sell and service LVD-CNC machines.
LVD-CNC machines are built to our stringent set of design and quality standards in state-of-the-art manufacturing facilities.
LVD-CNC product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry.
Our products catalogs
- Press Brake Machine click!!!
- Sheering Machine click!!!
- Punching Machine/Power press
- Laser/Plasma cutting Machine
- Tube bending Machine
- Ironworker
- Hydraulic Press Machine
- Moulds and machinery blades
- Others
⇒Are you a factory or trading company?
We are a Amada Press Brake factory.
⇒Where is your factory located? How can I visit there?
Our factory is located in Anhui Maanshan Province(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
⇒How does your factory do regarding quality control?
Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO,BV authentication.
⇒Trade Terms:
1.Payment: T/T,Western Union,MoneyGram,PayPal; 30% deposits;70% balance before deliverying.
2.Delivery Time: 20-60 days
3.MOQ: 1 pcs
⇒Why choose us?
1.We are China Leading Amada Press Brake Manufacturer.
2.Alibaba Assessed 6 years Gold Supplier for Amada Press Brake.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
⇒How to contact us?
Rose Tian(Sale manager)
Moble(Whatsapp): 0086-18355531107
E-mail: rose(at)
Skype: rose-lvdcnc
♥Thanks for your reading,if you are interesting in our products, please feel free to contact us. We will give you best solutions!
