Sand control screens—screened pipe joints positioned in the wellbore directly opposite formation perforations—serve to block out sand while allowing the flow through of oil or water. Halliburton screen technology offers operators every conceivable advantage: precise particle size control, high strength and durability, excellent corrosion resistance, high pressure tolerance, increased containment capacity, superior erosion resistance and excellent backwash efficiency. All this, along with the advantages of automatic verification and real-time manipulation of screen gauge.
Benefits：
•No longer the weakest link in the completion–tolerates high loads
•Reduced risk during installation due to unique screen robustness
•Reduced rig time for installation–like running casing
•Provides a robust sand control solution
•Standardized product for short lead time
•Cost effective

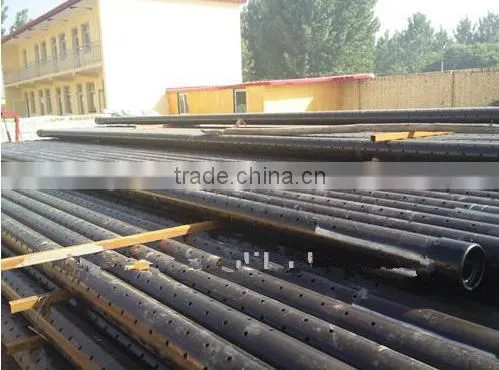

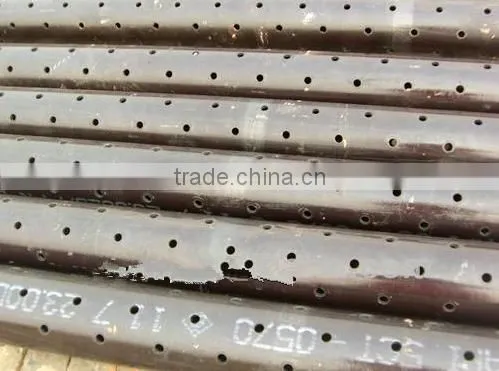

1.ordinary drilling screen pipe：
Ordinary drilling screen pipe is used for simple sand control tool of oil, gas, water wells, connected to the pump, tubing and casing end, for some large size of sand and solid impurities, playing the control effect.

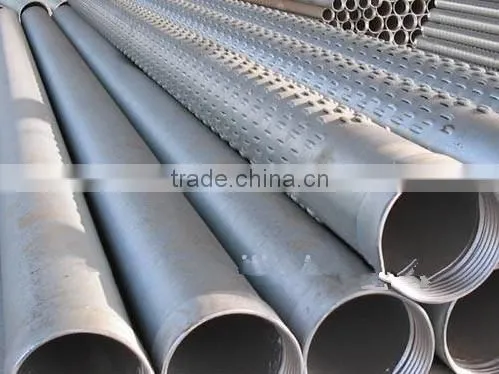

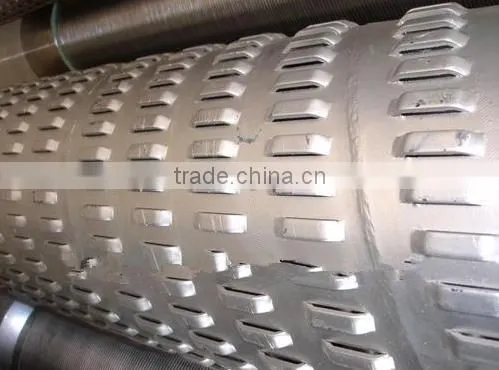

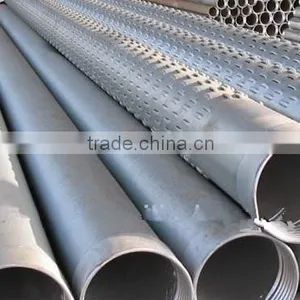

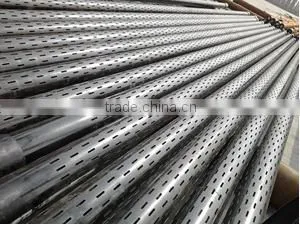

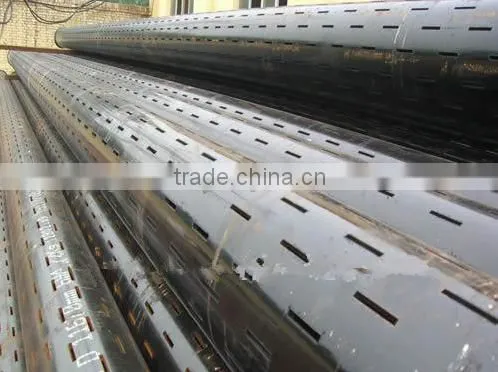

2.laser slotted screen pipe：
Laser slotted screen pipe adopts ontology J55oil pipeline processing, with high strength, not easy to deformation, thus overcoming the "chaos" phenomenon easily appearing in underground process of the wire wrapped screen, effectively improving the sand control effect. This product is suitable for the sand particle size is greater than that of 0.2 mm sand control wells with good verticality cutting edge, smooth cutting edge, no burr, kerf uniform and filtering accuracy being adjusted according to the size of sand formation.

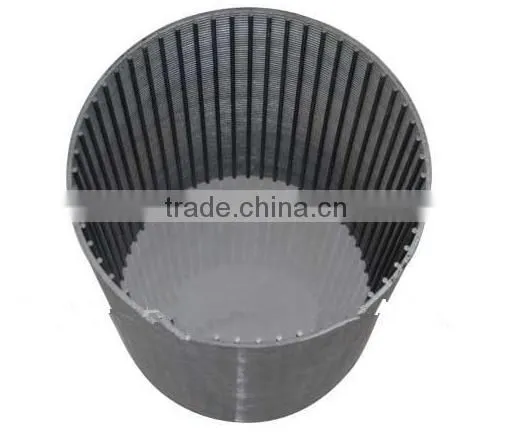

3.wire wrapped screen pipe：
Wire wrapped screen pipe is widely used in oil, gas, water and sand control industry, its position in the water well industry is particularly important, is one of the most widely used in various water filter screen. This product is mainly body joints, wrist, wire winding tube and an inner tube. Liquid flow is from the outside to the inside, through the wire winding tube gap filter via the inner tube holes into the wire wrapped screen cavity. Because the screen section is trapezoidal, the gap is always outside small and inside large, very favorable filtration and washing. Wire wrapped screen length and filtering accuracy can be customized according to requirements. Besides, V type, wedge type and other types are available.

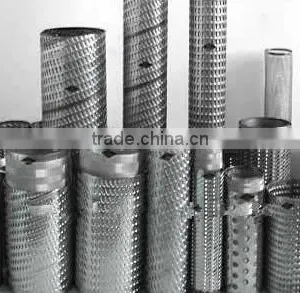

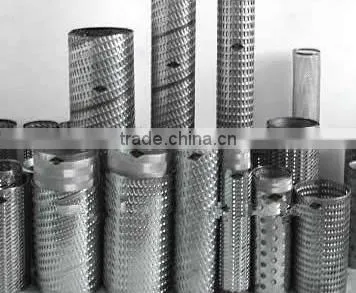

4.multilayer sand control screen：
The sand control filter is mainly composed of central pipe, copper wire cloth filter layer, thole outside protective pipe, using the copper wire cloth filter achieves the purpose of sand control. This product is suitable for land and offshore oil and gas wells, wells, vertical wells, horizontal wells, sidetracking wells as well as steam flooding well.
Excellent anti-corrosive performance ：

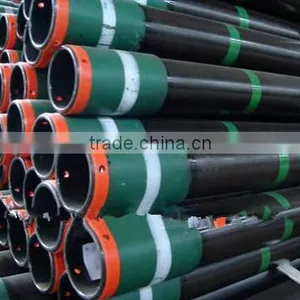

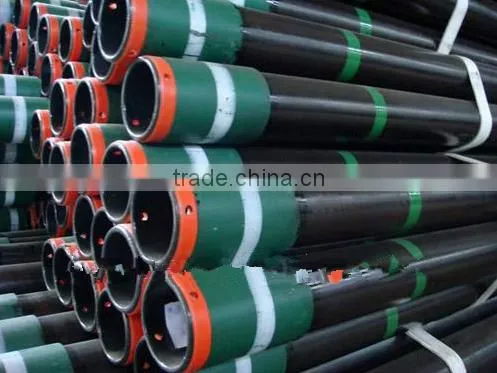

Central tube adopts API standard casing or oil tube. precise punched slotted screen jacket adopts stainless steel 304. Central tube can adopt anti-corrosive casing or oil tube according to special requirements of high concentration Cl- well containing H2S, CO2. Screen shall be resistant to acid.
Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
