Multi-function Ironworker, Twin Head Shearing and Stamping Machine, Universal Combined Punching and Shearing Machine
US$ 3,300 - 6,500
/ Set
1 Set(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Metal Ironworker Machine/iron Worker,q35y-30,20,16(punching and Shearing Machine)
-
Punching and Shearing Machine, Hydraulic Mechanical Ironworker With High Speed
-
Q35Y-16 Small Hydraulic Ironworker Machine, Hydraulic Punching and Shearing Machine
-
Q35Y-16 Joint Hydraulic Punch Machine Hydraulic Iron Worker
-
Metform Dual Cylinder Ironworkers From Anhui
-
Sheet Metal Ironworker Punch Cut Notch and Bend Iron Q35Y
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Anhui, China | |
| Brand Name | LVD-CNC | Model Number | Multi-function ironworker, twin head shearing and stamping machine | |
| Voltage | 220/380V | Power(W) | 4KW | |
| Dimension(L*W*H) | 1640*730*1770mm | Certification | CE or ISO | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Multi-function ironworker, twin head shearing and stamping machine, universal combined punching and shearing machine
Product Description
| Features |
|
| Q35Y series hydraulic ironworker adopt hydraulic driving system. Ironworker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bars, profiled bars, channel steel and joist steel can be cutted, punched and notched on the machines. |
| 1. Shearing Station |
| a. Round & square bar shearing: there are multiple holes for a varity of sizes. Adjustable hold down device is convenient for shearing various sizes of round and square bar, channel, joist, etc. |
| b. Flat bar shearing: large 15" squraing arm with inlaid scale as standard equipment. Special anti-disorted blade for quality cutting. Lower blade has four usage edges. There is screw allow for gap adjust no shim needed. |
c. Angle iron shearing: the angle iron shear has the ability to cut angle iron at 45 degrees & 90 degrees withe diamond shaped blade. e.g. This gives the operator the ability to make a picture frame corner for perfect welds. |
| d. Diamond shaped blade for quality cuts that is minimal material wast. Easily adjustable hold-down device for accurate plate cutting. |
| 2. Puching Station |
| a. Largw viewing window on stripper. |
| b. Swing-away dwsign for easy operation. |
| c. Available unique style allows for large angle iron punching and large channel punching. |
| d. Quick change coupling nut and sleeve for rapid replacement change |
| e. Large two pieces gauging table with rules and stop as standard equipment. |
3. Notching Station |
| a. Unique design for unsurpassed cutting of angle and flat bar. |
| b. Electrical interlock safety guard and three gauging stops for precise positioning. |
| c. with ventilated device for good visibility. |
| d. The notching station also has an oversized table with material stops. |
| 4. Electronic backgauge device |
| a. With 3 supporting feet. |
| b. Fine adjustment assures precision cuts. |
c. Fully protected electrical hardness for safety and reliability. |
| d. Large contact button for high efficiency productivity. |
| Detailed photos about multi-function ironworker, twin head shearing and stamping machine, universal combined punching and shearing machine |
|
| Punching station of multi-function ironworker, twin head shearing and stamping machine, universal combined punching and shearing machine |
|
| Shearing station of multi-function ironworker, twin head shearing and stamping machine, universal combined punching and shearing machine |
|
| Multi-function shearing station of multi-function ironworker, twin head shearing and stamping machine, universal combined punching and shearing machine |
|
| Safety interlock of multi-function ironworker, twin head shearing and stamping machine, universal combined punching and shearing machine |
|
| Electrical components from French scheider |
|

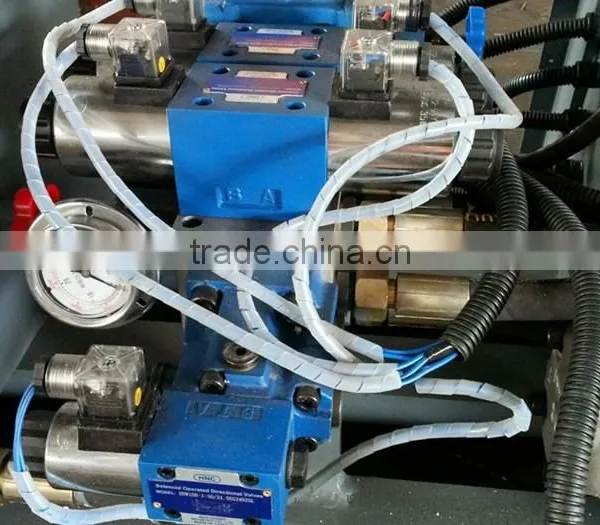

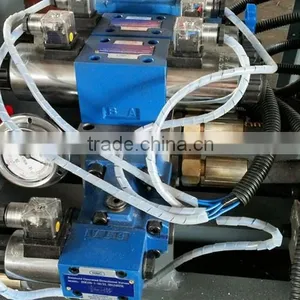

| Hydraulic valve from Taiwan HNC |
|
| Other color multi-function ironworker, twin head shearing and stamping machine, universal combined punching and shearing machine |
|
| Production process and cutting trial |
|
| Technical Parameters and special order configuration |
|
Packaging & Shipping
| If wood is used, it must be heat treated and must comply with U.S. regulations. |
| Container Packaging: Wrapped in plastic to protect from getting wet. |
|
Our Services
| Our Services | |
| Long term cooperation | If we keep a long term cooperation, there will be more discount. |
| Problem solving | We will provide solution in one day. |
| Technical Service | Our technician is available to give your technical helping or how to use our machines. You can also send your technician to our company to learn how to operate machines. |
| Quality Guarantee | We provide two years warranty.We sign the agreement with detailed technical data |
Company Information
| Factory Information |
| Manufacturers: Ma Anshan LVD CNC Machine Tool CO., LTD |
| Brand : LVD-CNC |
| Address: Zhenxi industrial Park, Bowang, Ma Anshan City, Anhui province, China |
| Tel: +86 555-6766881 Fax: +86 555-6766881 Phone: + 86 159 555 36553 (WhatsAPP) |
| E-M-A-I-L: purity(at) |
| Website: http://lvdcnc.en.china.cn/ |
Main Products: CNC Press Brake, Shearing Machine, Power Press Machine, Rolling Machine, Hydraulic Press Machine, Ironworker, Hydraulic Machines, Forging Machine Equipment
|
FAQ
| FAQ |
| a. Where is your factory located? How can I visit there? |
| Our factory is located in Anhui Maanshan Province(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us! |
| b. How does your factory do regarding quality control? |
| "Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO,BV authentication. |
| c. Trade Terms: |
1.Payment: T/T,Western Union,MoneyGram,PayPal;30% deposits;70% balance before deliverying. 3.MOQ: 1 pcs |
| d. Why choose us? |
1. We are China leading hydraulic press manufacturer. 2. Inspected by the Inspection Institution of Bereau Verita Certification. 3. 100% QC inspection before shipment. 4. Best quality and best service with competitive price. |
| e.How to contact us? |
| Send your Inquiry Details in the Blow, Click "Send" Now! |
WELCOME TO CONTACT US! THANK YOU!
