Q35Y hydraulic punch and shear machine/Hydraulic Ironwork machine ironworker
Q35Y series hydraulic ironworkers adopt hydraulic driving system.Iron worker can cut punch all kinds of holes.Various metal plates,square bar,angle steel,round iron,flat bar,profiled bars,channel steel and joist steel can be cutted,punched and notched on the machines.
Detailed function of Q35Y hydraulic punch and shear machine/Hydraulic Ironwork machine ironworker as follow:
1) Robust and accurate steel frame

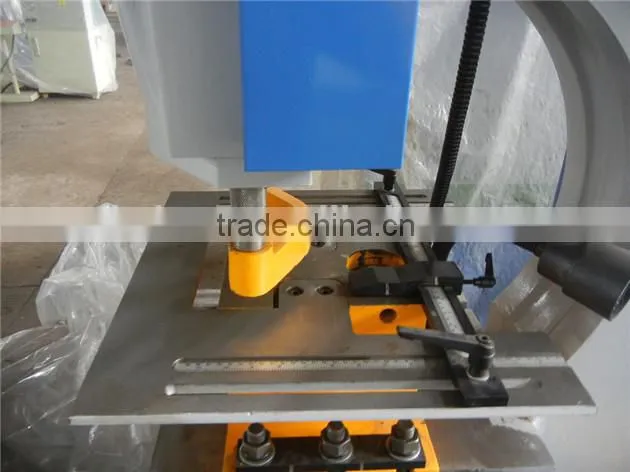

2) Large punch table with scales
3) Removable bolster for punching flanges and channel and beam
4) 2 independent hydraulic cylinders
5) 2 shielded foot controls
6) 2 Separate Die Openings for oversized punching

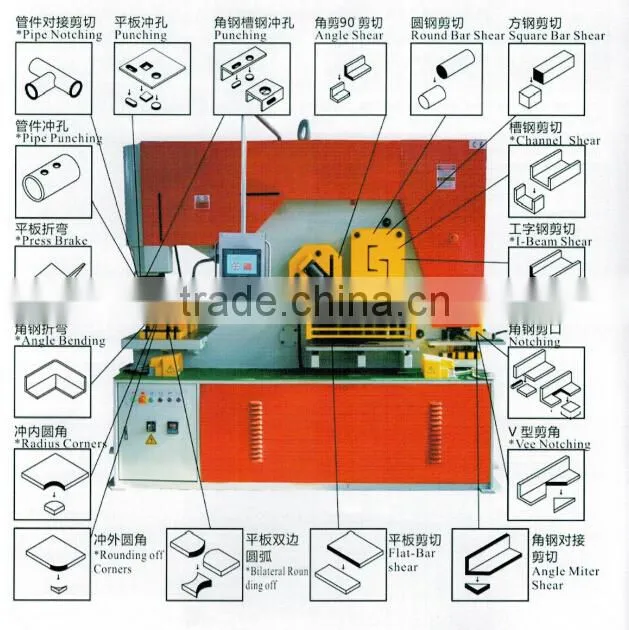

7) 5 working stations for wide applications
8) Power inching on all 5 work stations
9) Plate shear support/table and notching table
10) Adjustable stroke controls with indicators on both cylinders
11) Movable work light as standard
12) Overload protection on hydraulic system
13) Electric back gauge
14) 5 pieces punches and dies (punch die, angel steel, square steel, round iron and a series of shearing die)
15) Other punches and dies can be produced as clients’ requirement.

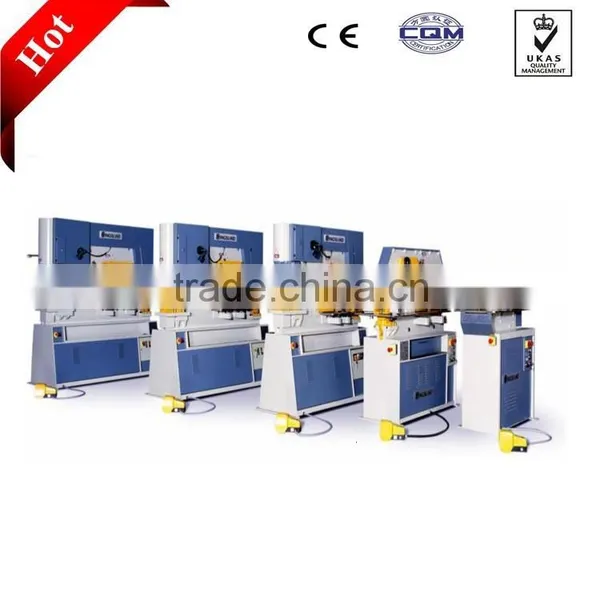

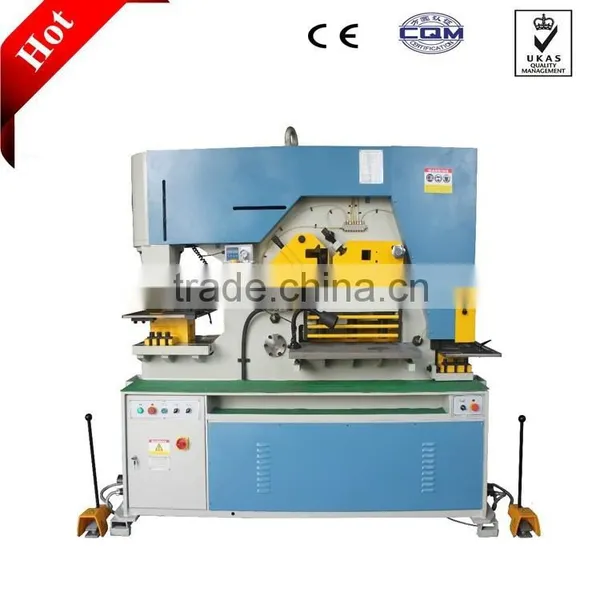

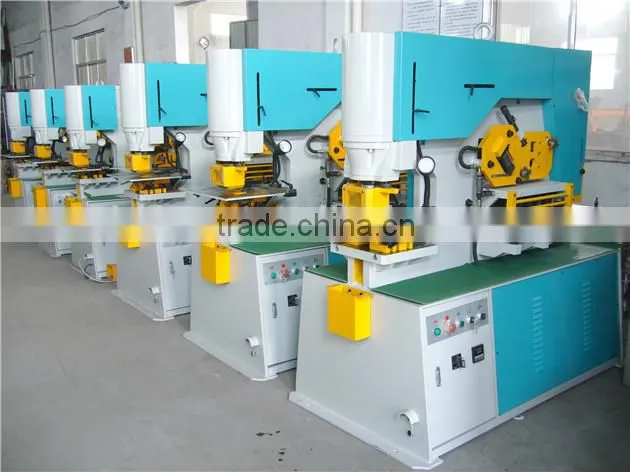

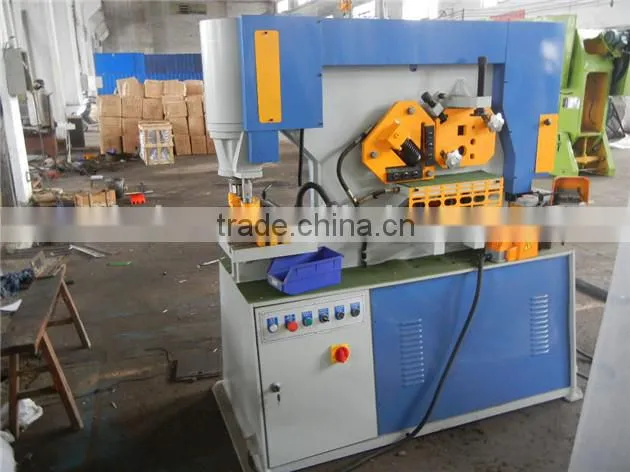

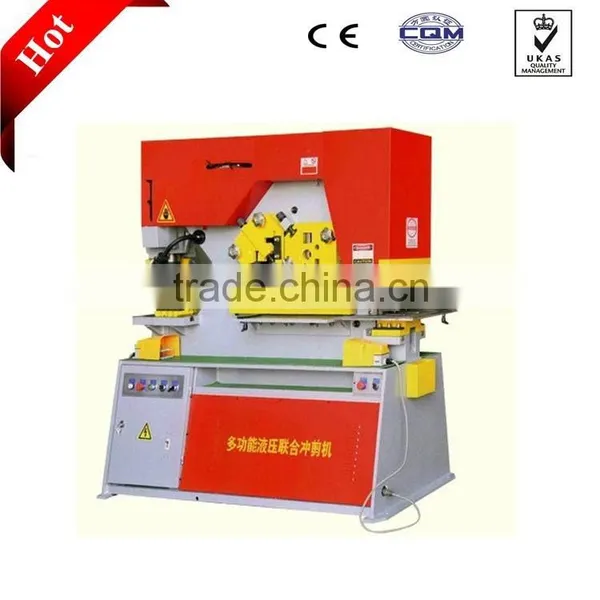

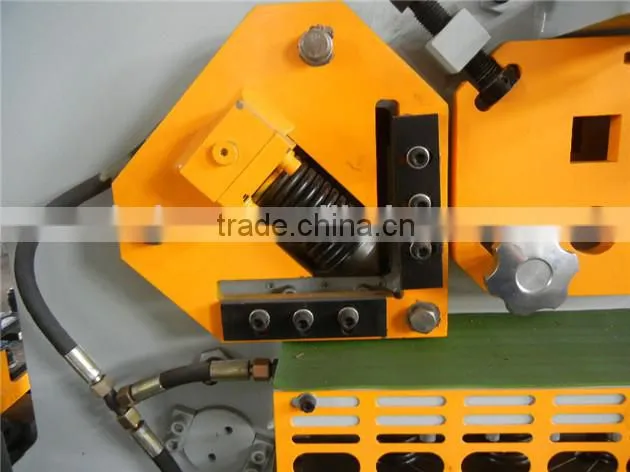

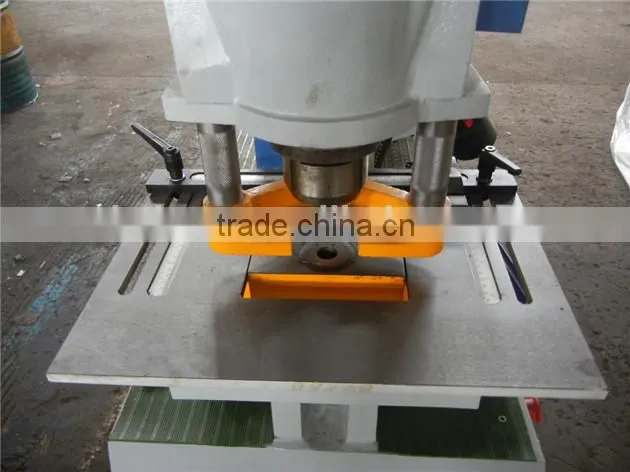

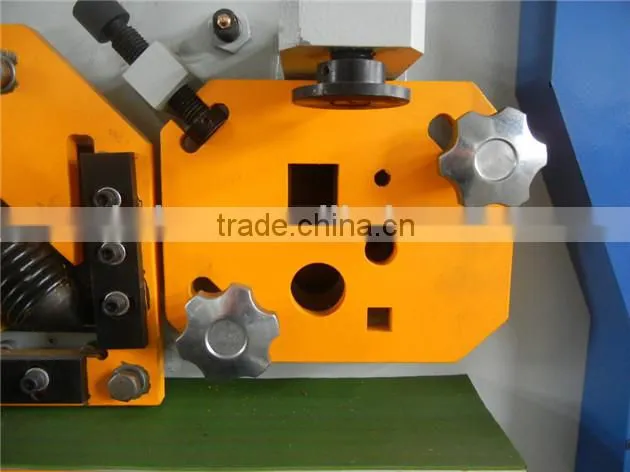

Pictures of the Q35Y Hydraulic Ironworkers:

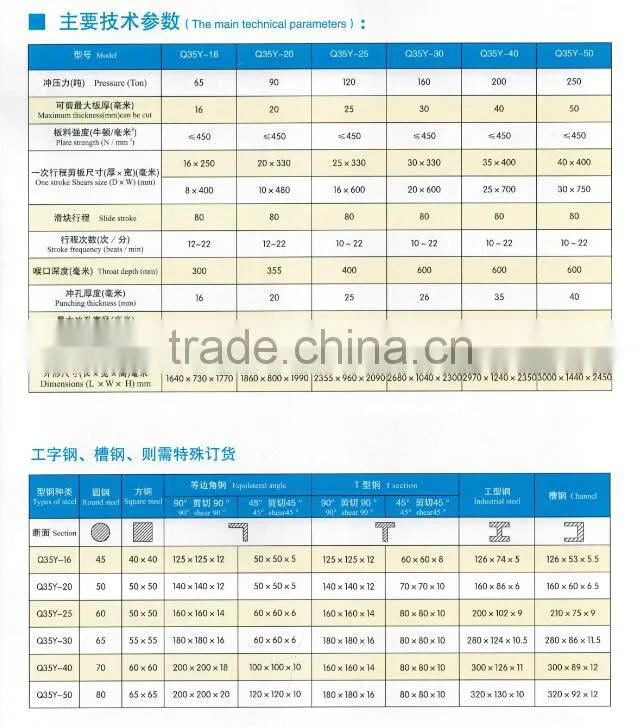

Technical Prameters of Q35Y hydraulic punch and shear machine/Hydraulic Ironwork machine ironworker:
