Q35Y Universal Hydraulic Iron Worker with multifunctional punching bending cutting shearing notching
- 200 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A PayPal
-
Professional High Precision Wide Application J23-25 cnc turret punching machines
-
High Precision Wide Application J23-25 c frame punch press
-
Professional High Precision Wide Application J23-25 hydraulics
-
High Precision Wide Application J23-25 c frame fixed table punching machine
-
Factory Sale High Precision Wide Application J23-25 construction material making machine
-
High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
| Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
| Place of Origin: | Anhui, China | Brand Name: | LVD-CNC | Model Number: | Q35Y-20 |
| Voltage: | 380V | Power(W): | 5.5kw | Weight: | 2000kg |
| Dimension(L*W*H): | 1860*800*1990 mm | Certification: | CE ISO | Warranty: | 5 Years |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Q35Y Universal Hydraulic Iron Worker with multifunctional punching bending cutting shearing notching
Brief Introduction of Q35Y Hydraulic Ironworker
Q35Y series hydraulic ironworkers adopt hydraulic driving system.Iron worker can cut punch all kinds of holes.Various metal plates,square bar,angle steel,round iron,flat bar,profiled bars,channel steel and joist steel can be cutted,punched and notched on the machines.
Detail Function of Q35Y Hydraulic Ironworker
| 1.Shearing Station: |
| a.Round & square bar shearing: there are multiple holes for a varity of sizes. Adjustable hold down device is convenient for shearing various sizes of round and square bar, channel, joist, etc |
| b.Flat bar shearing: large 15" squraing arm with inlaid scale as standard equipment. Special anti-disorted blade for quality cutting. Lower blade has four usage edges. There is screw allow for gap adjust no shim needed.. |
| c.Angle iron shearing: the angle iron shear has the ability to cut angle iron at 45 degrees & 90 degrees withe diamond shaped blade. e.g.This gives the operator the ability to make a picture frame corner for perfect welds. |
| d.Diamond shaped blade for quality cuts that is minimal material wast. Easily adjustable hold-down device for accurate plate cutting. |
| 2.Punching Station: |
| a. Largw viewing window on stripper. |
| b. Swing-away dwsign for easy operation. |
| c. Available unique style allows for large angle iron punching and large channel punc. Fully protected electrical hardness for safety and reliability.ching. |
| d. Quick change coupling nut and sleeve for rapid replacement change |
| e. Large two pieces gauging table with rules and stop as standard equipment. |
| 3. Notching Station: |
| a. Unique design for unsurpassed cutting of angle and flat bar. |
| b. Electrical interlock safety guard and three gauging stops for precise positioning. |
| c. with ventilated device for good visibility. |
| d. The notching station also has an oversized table with material stops. |
| 4. Electronic backgauge device: |
| a. With 3 supporting feet. |
| b. Finb. Fine adjustment assures precision cuts.e adjustment assures precision cuts. |
| c. Fully protected electrical hardness for safety and reliability. |
| d. Large contact button for high efficiency productivity. |

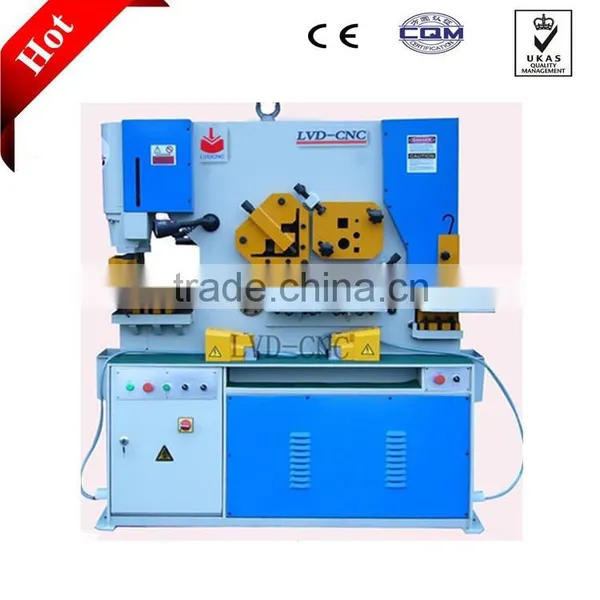

Images of the whole machine
Images of details of machine

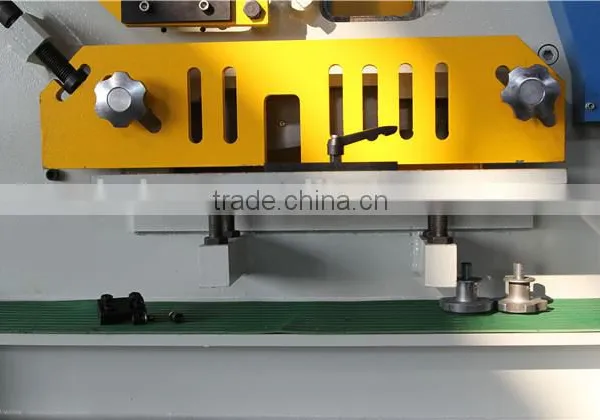

| shearing station | |
| |
| The moulds can be changed as your demands | |
| |
| Punching Station | |
| |
| Notching Station | |
| |
| Hydraulic valve from Taiwan HNC | Electrical components from French scheider |
|
|
Technical Parameters and special order configuration
Q35Y Universal Hydraulic Iron Worker with multifunctional punching bending cutting shearing notching
Package Type: wooden package or can be adjust for the machine's safety.
Container Packaging: Wrapped in plastic to protect from getting wet.
| Packaging Details: | 1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied. 2)before loading,stable package,professional and skilled loader reduce damage of product during transport. 3)after loading,our professional documentary staff will follow the order till the product departs from port. |
| Delivery Detail: | 20 days after payment |
Q35Y Universal Hydraulic Iron Worker with multifunctional punching bending cutting shearing notching
- Inquiring&consulting Service:24 hours online to reponse in 2 hours,provide solution in one day and solve complaint in 2 days.
- Technical Sevice: Engineers available to serive machinery overseas. We dispatch technician to customer's factory for installations and preoperation of machines.(costomers only need to pay airfare and hotel)
- Quality Guarantee Sevice:We provide 5 years warranty. We sign the agreement with detailed technical data.
- Long cooperate Serive:A discount for a long cooperate and your visit to our factory is
- welcome.
Q35Y Universal Hydraulic Iron Worker with multifunctional punching bending cutting shearing notching
About LVD-CNC
| LVD-CNC is totally focused on providing a line of products and support to maximize the productivity of ?Sheet metal machinery. |
| For over 16 years, LVD-CNC has specialized in CNC Press Brake, Guillotine and Laser Cutting and Punching to provide a complete sheet metal production workshop and improve accuracy of the productivity. |
| The company has a global network of over 15 appointed distributors trained to sell and service LVD-CNC machines. |
| LVD-CNC machines are built to our stringent set of design and quality standards in state-of-the-art manufacturing facilities. |
LVD-CNC product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry.
Others products of LVD-CNC 1.Press Brake Machine hot!!! 5.Rolling Machine hot!!!
|
Q35Y Universal Hydraulic Iron Worker with multifunctional punching bending cutting shearing notching
⇒Are you a factory or trading company?
We are a Amada Press Brake factory.
⇒Where is your factory located? How can I visit there?
Our factory is located in Anhui Maanshan Province(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
⇒How does your factory do regarding quality control?
Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO,BV authentication.
⇒Trade Terms:
1.Payment: T/T,Western Union,MoneyGram,PayPal; 30% deposits;70% balance before deliverying.
2.Delivery Time: 20-60 days
3.MOQ: 1 pcs
⇒Why choose us?
1.We are China Leading Amada Press Brake Manufacturer.
2.Alibaba Assessed 6 years Gold Supplier for Amada Press Brake.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
⇒How to contact us?
Rose Tian(Sale manager)
Moble(Whatsapp): 0086-18355531107
E-mail: rose(at)
Skype: rose-lvdcnc
Thanks for your reading, welcome to contact us:)
