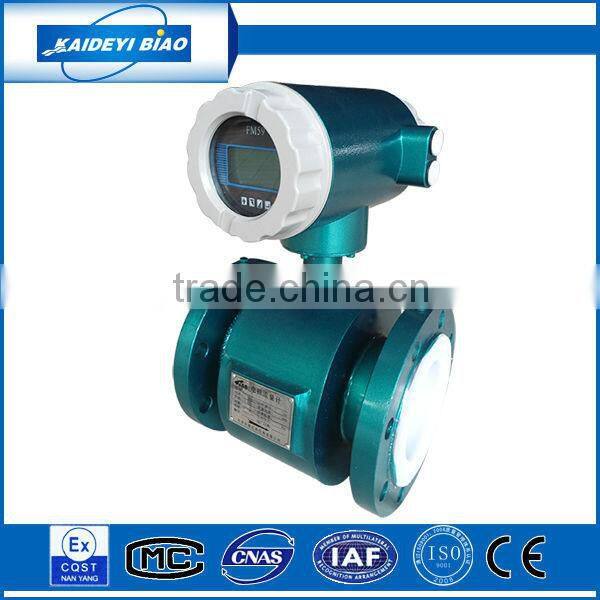

Flange Type Water Elctromagnetic Flowmeter

Specifications

Electromagnetic Flowmeter
1.Media:conductive liquid and slurry
2.Connection:flange
3.MOQ:1 set flow meter
4.Pulse and 4-20mA



Product Name: Flange Type Water Electromagnetic Flowmeter

1.Introduction:



KDLD flange type water electromagnetic flowmeter measuring tool is manufactured with the modern technology of electromagnetic flow, the measuring principle of which is based on the electromagnetic induction law of Farady. It is mainly used to measure the volume flow of conducting liquid and slurry in closed pipeline, applicable to industries like chemical, power supply, metallurgical mine, oil, water supply and drainage, paper making, pharmaceutical, food, etc



2. Specifications:

Item	Specifications
Caliber(mm)	DN10~DN3000
Pressure(MPa)	0.6,1.0,1.6,4.0
Accuracy	±0.5%
Applicable medium	Conductive liquid and slurry
Medium Temperature	≤150°C
Medium Conductivity	≥5μS/cm
Medium Velocity	≤15 m/s
Ambient	Temperature:-25°C~+60°C, Humidity: 5%~90%
Liner Material	Rubber, PTFE, Hard rubber, etc.
Electrode Material	SS316L,Ti,Ta,HB,HC,etc.
Electrode Type	Fixed type(DN150~DN2600);  Blade type(DN300~DN1600)
Flange Material and standard	SS, CS Chinese national standard, ANSI standard, DIN, JSK, etc.
Signal Output	4-20mA; Pulse
Display	LCD display with back light, able to display positive and negative instantaneous and accumulative flow
Communication	RS485, Modbus, RS232, HART, Profibus-DP
Power Supply	AC 85-265V, 45-63Hz, power≤20W;  DC 11-40V; lithium battery(3.6V)
Protection Grade	IP65(convertor), IP67/68(sensor)
Explosion- proof Grade	Exdm2CT4, md2BT4
Available Form	Compact/Remote
