15" Retail Store Commodity Bar Code Reader Advertising Player

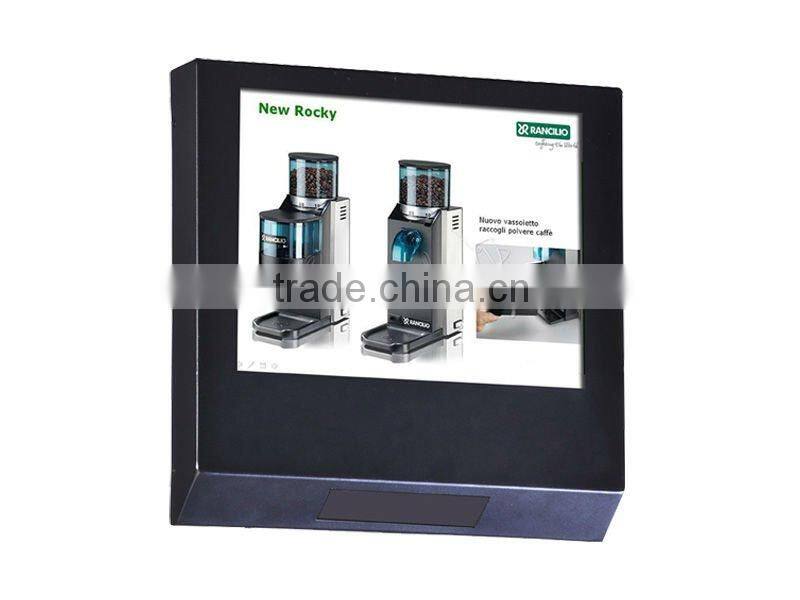

15" Retail Store Commodity Bar Code Reader Advertising Player thumbnail-1
15" Retail Store Commodity Bar Code Reader Advertising Player photo-1
US$ 230 - 263 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM or Amberdigital
Model Number:
AD1506BS
Contact Supplier Request Quote Chat Now
Southern Stars Enterprises Co Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM or Amberdigital
Model Number AD1506BS
Type TFT
Application Indoor
Panel Size 304.1 (W) * 228.1 (H) (mm)
Max Resolution 1024 x 768 (H*V)
Viewing Angle 75°/75°/50°/60°(U/D/L/R)
Pixel Pitch 0.099 (W) * 0.297 (H) (mm)
Color 262K/16.7M (6bit/6bit+Hi-FRC)
Contrast Ratio 450:1
Brightness 450cd/m2
Response Time 6/19 ms
Input Voltage AC100V-240V (50HZ-60HZ)

Specifications

1. Play commodities' file/ads by scanning bar code
2. Lots of bar code standards supported
3. Timer function & auto upgrade

15" Retail Store Commodity Bar Code Reader Advertising Player15" Retail Store Commodity Bar Code Reader Advertising Player



Main Function

1. Play and replay mp4 movie, mp3 music and digital photos automatically; Built-in 15 inch TFT LCD screen, with tempered glass protection and metal housing
2. Bar code reader is specially designed for commodity bar code. Scan a bar code and the player will play the corresponding file content such as an advertising video
3. Many barcode data and corresponding files can be stored in the CF or SD card, and customers can get information instantly
4. The player will loop-play a pre-determined single file or loop-play all files after current file playing is completed
5. Play from: -Compact Flash card (CF or SD card) -USB flash drive -Built-in memory
6. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card, no need to use a computer
7. Timer function: the player powers on / off automatically everyday at the time pre-set;
    It can also automatically play and non-stop replay within the pre-set time frame (for long hours)
8. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
9. Theft-protection device effectively prevent the player and CF or SD card from being stolen in public place
10. Audio output: 2 X built-in high quality stereo speakers
11. Equipped with different brackets for supermarket shelf, wall mounting or standing on table top; Very easy to install

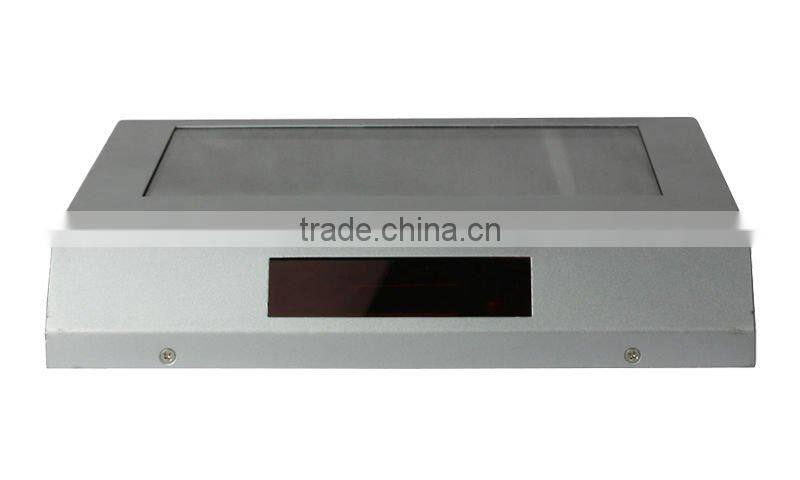

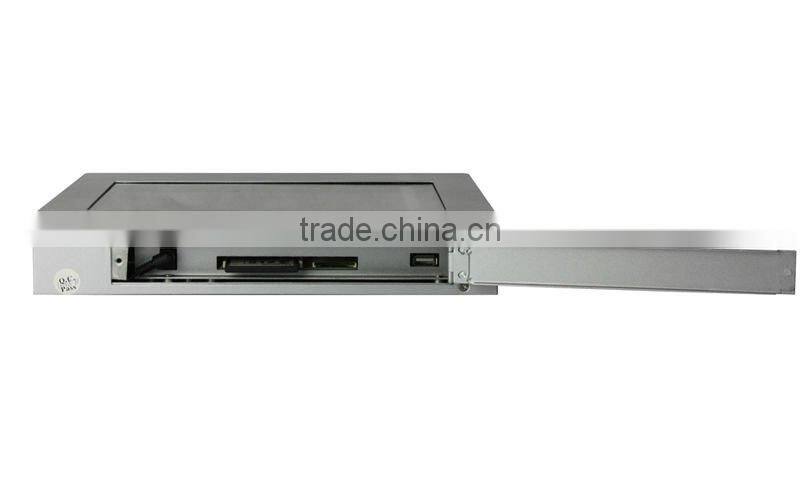

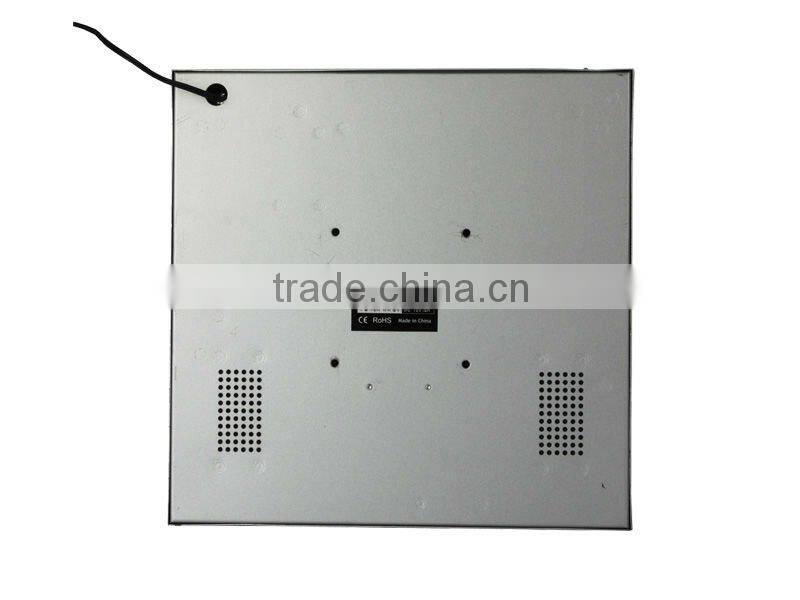

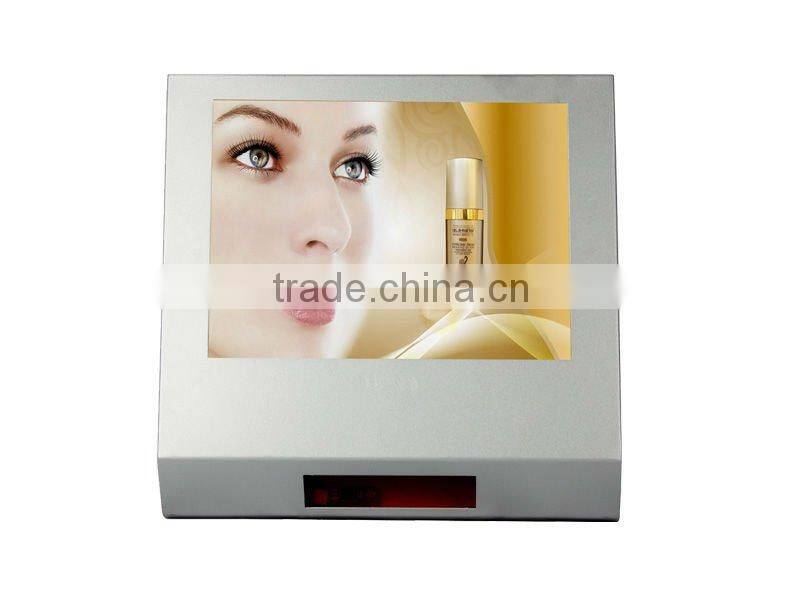

Images of Various Angles:

15" Retail Store Commodity Bar Code Reader Advertising Player 15" Retail Store Commodity Bar Code Reader Advertising Player 15" Retail Store Commodity Bar Code Reader Advertising Player15" Retail Store Commodity Bar Code Reader Advertising Player 15" Retail Store Commodity Bar Code Reader Advertising Player

List of Technical Specifications for AD1506BS
Model AD1506BS
LCD Screen LCD Size: 15 Inch
Panel Size: 304.1 (W) * 228.1 (H) (mm)
Pixel Pitch: 0.099 (W) * 0.297 (H) (mm)
Screen Ratio: 4:3
Max. Resolution: 1024 x 768 (H*V)
Brightness: 450cd/m2
Color: 262K/16.7M (6bit/6bit+Hi-FRC)
Contrast Ratio: 450:1
View Angle: 75°/75°/50°/60°(U/D/L/R)
Response Time 6/19 ms
Support Formats Video: MPEG1 (VCD), MPEG4
Audio: MP3, WMA
Picture: JPEG
Play From Memory Flash: CF or SD Card, Max. 4GB
Built-in Flash Memory: Optional, confirm before production
USB:  USB 1.0  (Host)
Installation VESA: Yes/Optional
75 * 75 mm
Desk Stand: N/A
Self Bracket: Yes/Optional w/ Self Bracket
Wall Mounting Bracket: Yes/Optional w/ Wall Mounting Multi-angle Bracket
Bar code scan parameters Scan width: 80mm
Effective scan distance:  10mm-60mm
Tilt adjustment: 5 ° -70 ° (± 5 °)
Distortion tolerance: 5 ° -60 ° (± 5 °)
Others Remote Controller Distance: 4-5m
Input Voltage: AC100V-240V (50HZ-60HZ)
Power Supply: DC5A, 60W (MAX)
Speaker:  Built-in 2x2W high quality stereo loudspeakers
Working Temperature: 0°C-45°C
Storage Temperature: -20°C- 60°C
Working Humidity: 20%-80%
Storage Humidity: 10%-95%
Casing: Metal
Body Size: 373(L) * 277(W) * 43(H) (mm)
Body Weight: 3.8 (kg)

Bar Code Standards:

Standard Compatible Compatible (default)
UPC / EAN / JAN V V
EAN128 Code V
Code 39 V V
Code 39Full ASCII V
Code 32 / Italian Pharmacy V
Code 128 V V
CODABAR / NW7 V V
Interleave 25 V V
Industrial 25 V
Matrix 25 V
MSI / PLESSEY V
Telepen V
Code 93 V
Code 11 V
China Postage V
Code 26 V
LCD25 V
GS1 DataBar 0mnidirectional V
GS1 DataBar Limited V
GS1 DataBar Expanded V

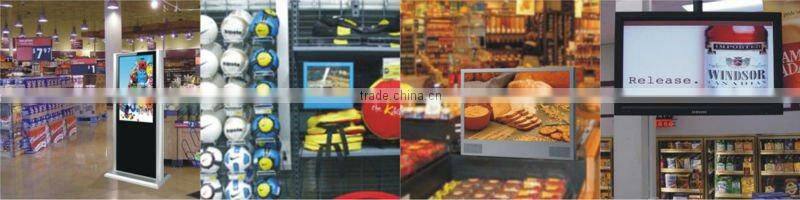

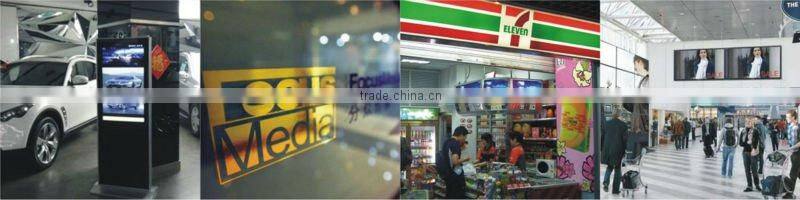

Application Field:
Our players are widely used in Business Organizations, Financial Organizations, Non-profit Organizations, Public Places,
Real Estate Property, Entertainments, etc.

Application field (A-Z):
Airport, Apartments, Auto dealerships, Banks, Bars, Beauty shops, Bookstores, Colleges and Universities, Clubs, Casinos,
Chain shops, Commercial buildings, Convention centers, Corporate Communications, Country clubs, Department stores,
Cruise Ships, Exclusive agency, Exhibition halls, Fitness Clubs, Fitness halls, Gas stations, Golf and Country Clubs,
Golf course, Hospital, Hotels, HR market, Insurance companies, Internet bars, Large-scale shopping malls, Libraries,
Large-scale sales, Lottery centers, Model rooms, Museums, Medical facilities, Massage rooms, Movie theaters, Offices,
Offices buildings, Parks, Pharmacy, Post offices, Property brokers, Public venues, Restaurants, Real Estate Listings,
Retail Stores, Schools, Ski Resorts, Stadiums, Sports Complexes and Arenas, Star-rated hotels, Supermarket, Stations,
Subway, Toll stations, Telecommunications, Ticket agencies, Tourist Resorts, Train & bus stations, Travel agencies, Villas

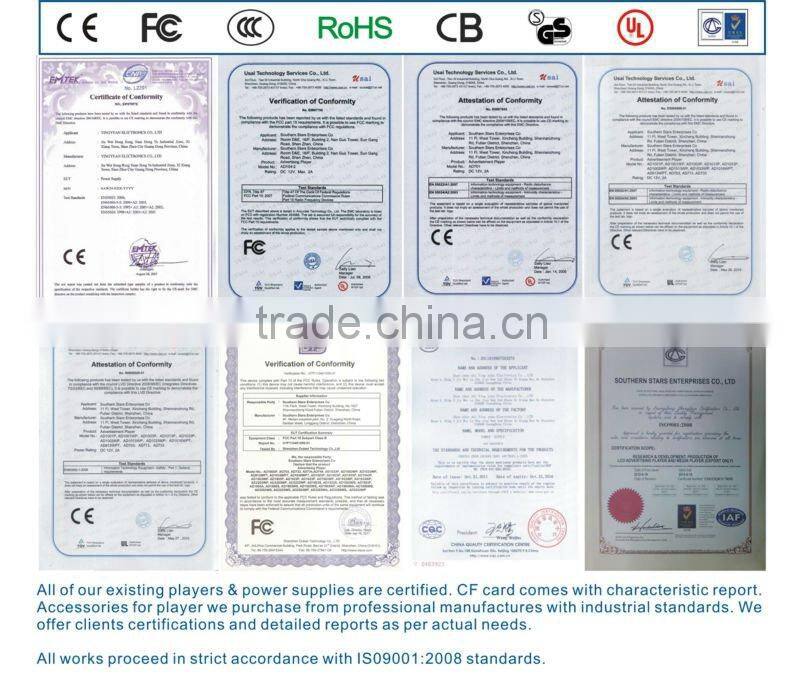

Certifications:

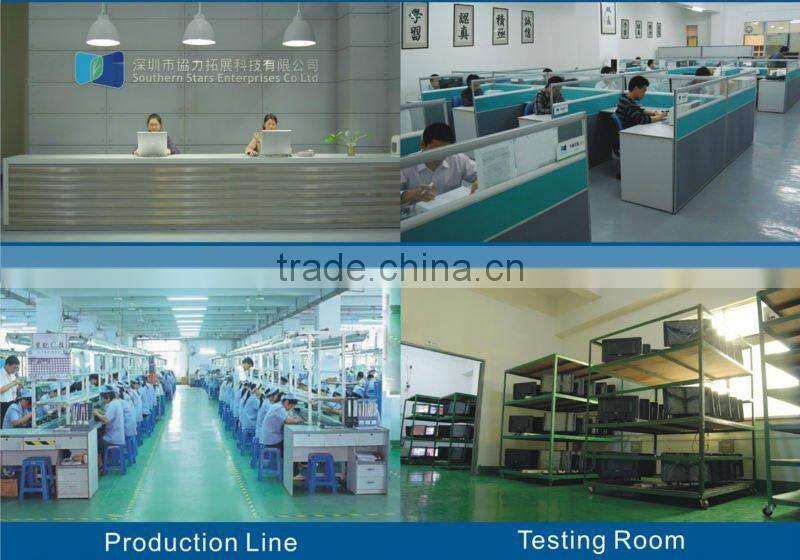

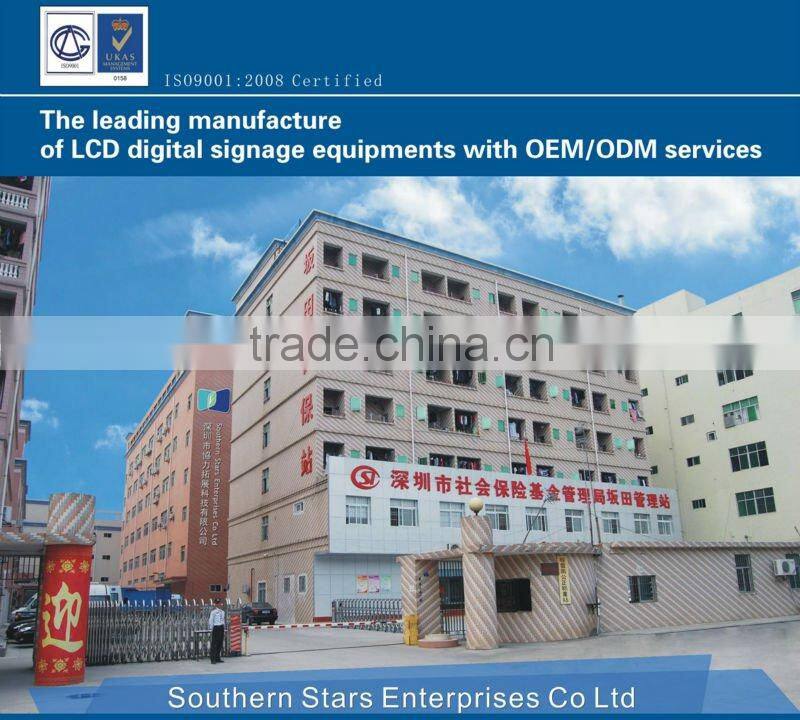

15" Retail Store Commodity Bar Code Reader Advertising Player Factory:

15" Retail Store Commodity Bar Code Reader Advertising Player15" Retail Store Commodity Bar Code Reader Advertising Player15" Retail Store Commodity Bar Code Reader Advertising Player
