Barcode Scanner With Display 7-15inch
US$ 220 - 249
/ Piece
1 Piece(Min. Order)
- Shenzhen or Hongkong
- T/T Credit Card PayPal
You May Like
-
7'' Retail Pos Lcd Advertising Display With Bar Code Scanner
-
Barcode Scanning Digital Signage, Useful for Supermarket Promotional Advertisement
-
15'' tv Digital Signage With Bar Code Scan
-
7'' Bar Code Scan Retail Pos Lcd Advertising Display
-
LCD Advertising Media Player 7" With Built-in Barcode Reader
-
LCD Advertising Player POS Player Media Player 7" With Built-in Barcode Reader
Product Details
| Place of Origin | Guangdong, China | Brand Name | FlintStone or OEM | |
| Model Number | AD1506BS | Type | TFT | |
| Application | Indoor | Panel Size | 15inch | |
| Max Resolution | 1024 x 768 (H*V) | Viewing Angle | 75°/75°/50°/60°(L/R/U/D) | |
| Pixel Pitch | 0.297 (W) * 0.297 (H) (mm) | Color | 262K/16.7M (6bit/6bit+Hi-FRC) | |
| Contrast Ratio | 450:1 | Brightness | 450cd/m2 | |
| Response Time | 6/19 ms | Input Voltage | AC100V-240V (50HZ-60HZ) |
Product Description
Specifications
1. 15 inch TFT lcd2. long time play and auto replay
3. easily upgrade by usb drive
4. barcode reader, timer
5. certificates

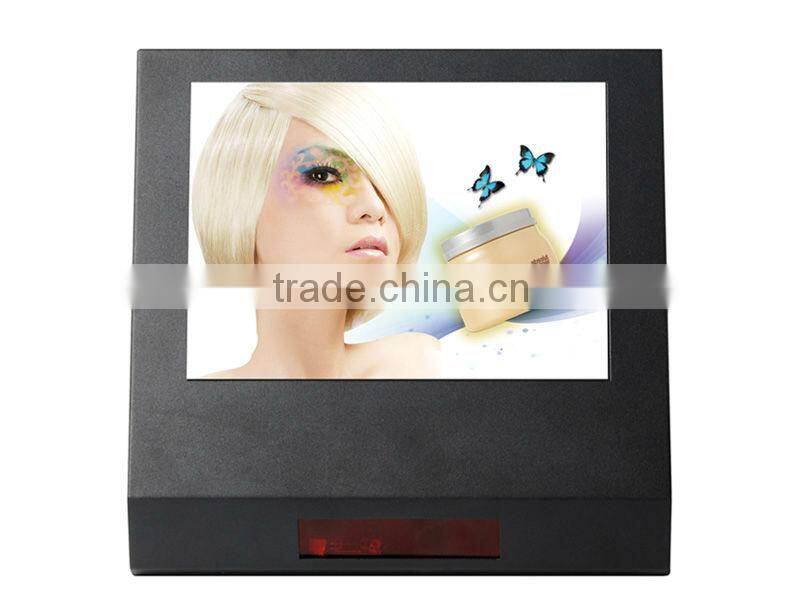

barcode scanner with display 7-15inch

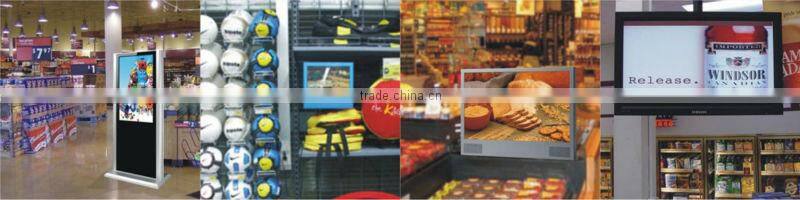

15 inch barcode scan advertising player, suitable for supemarket, chain store, retail shop, media company, convenience store, airport, bus station, etc.
scanner area
Key functions:
1. Scan a bar code and the player will play the corresponding file content such as an advertising video.
2. Many barcode data and corresponding files can be stored in the CF card, and customers can get information instantly.
3. Change contents of the memory card by simply inserting an USB flash drive.
4. Automatic play and replay for long hours.
5. Timer function (automatic power on/off).
6. The player will loop-play a pre-determined single file or loop-play all files after current file playing is completed.

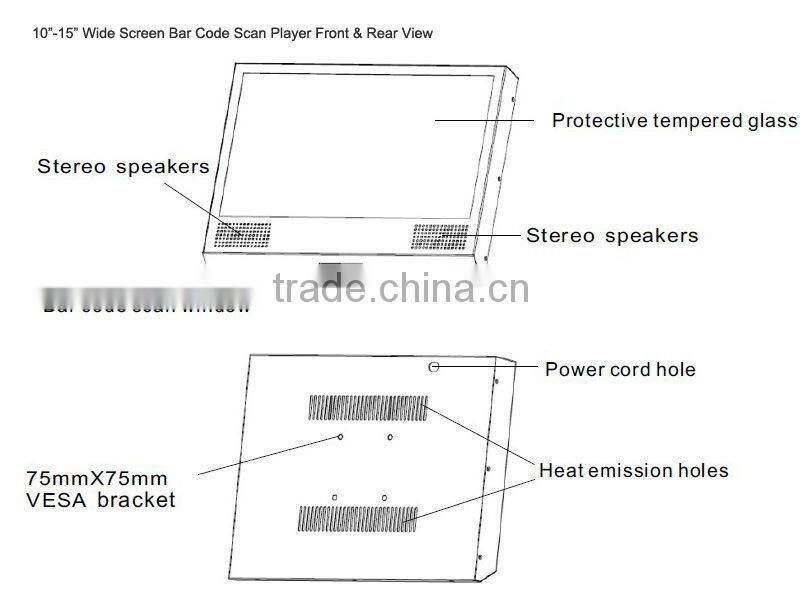

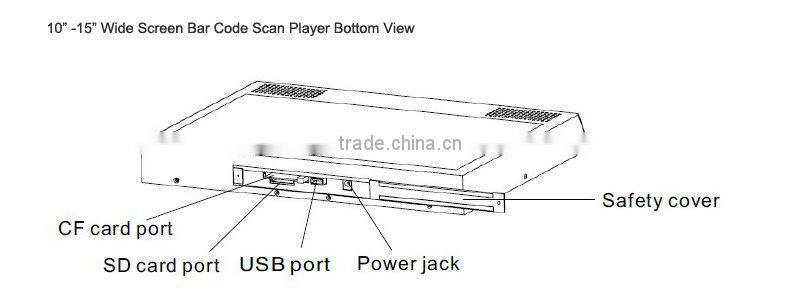

drawing

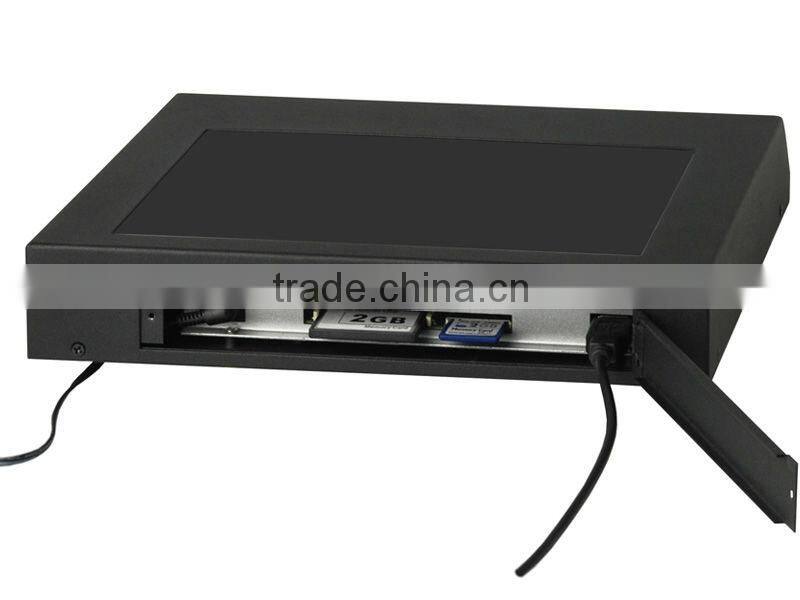

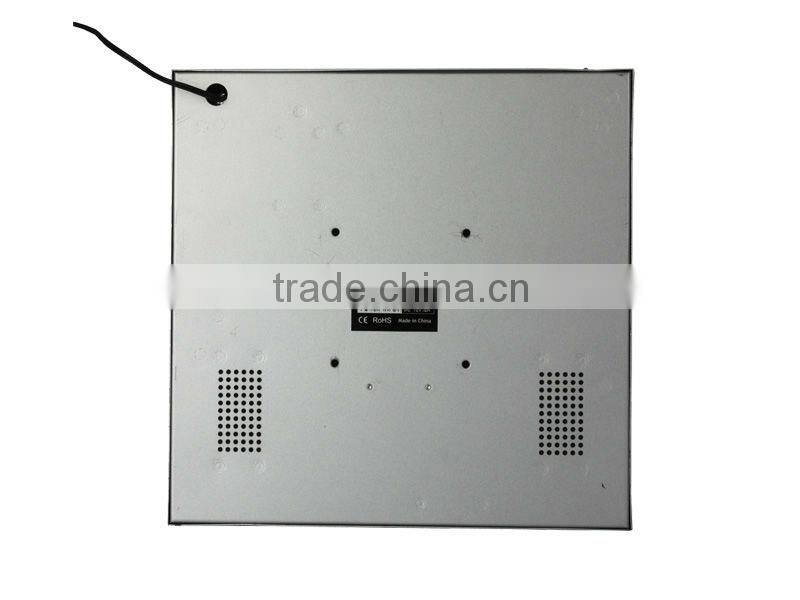

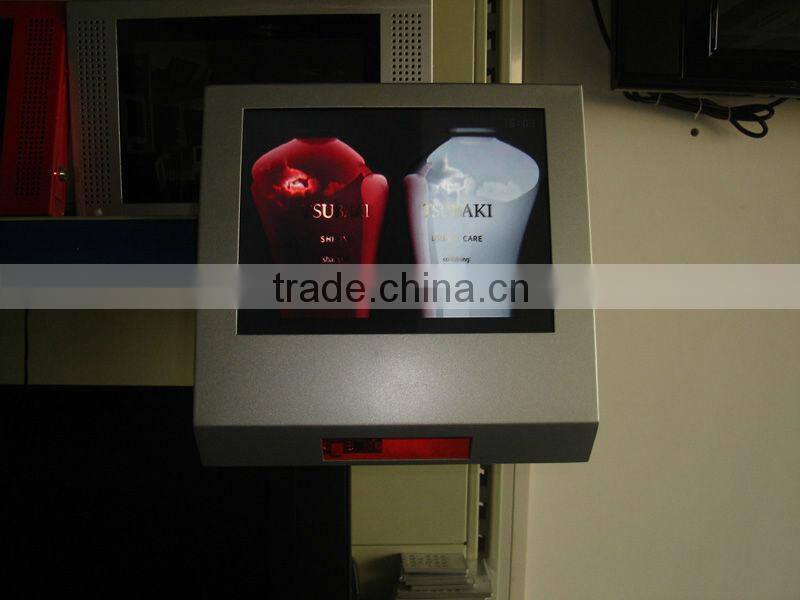

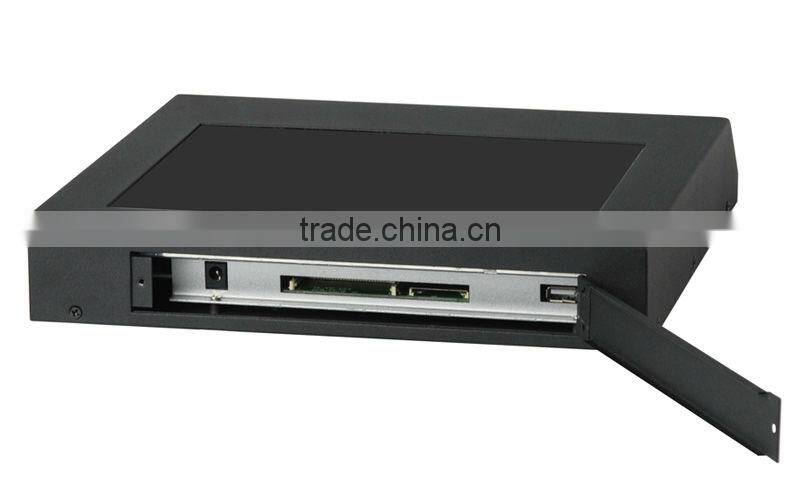

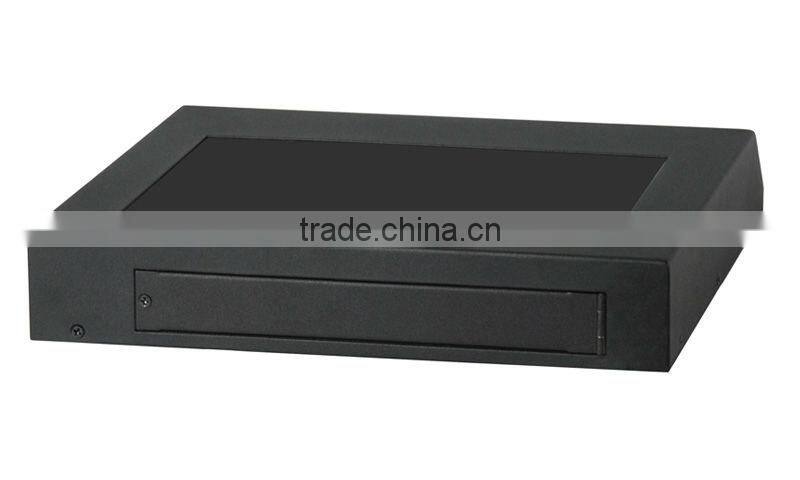

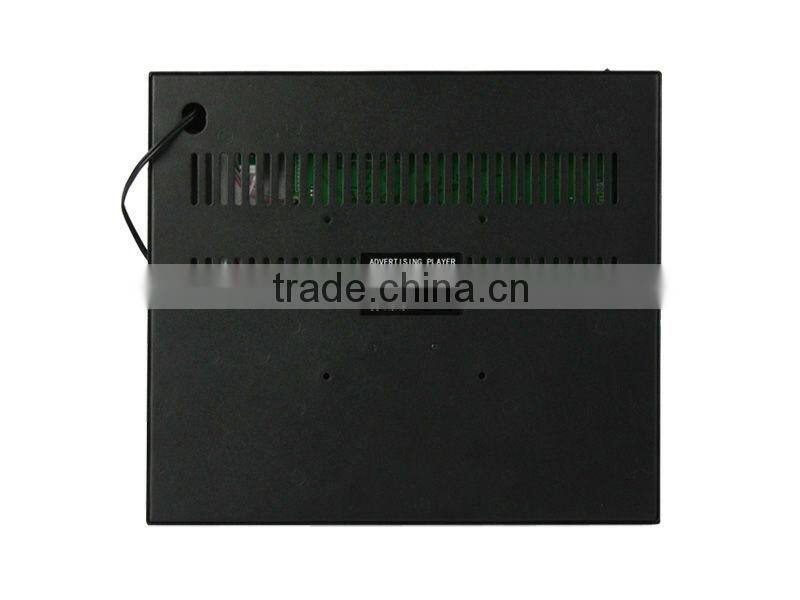

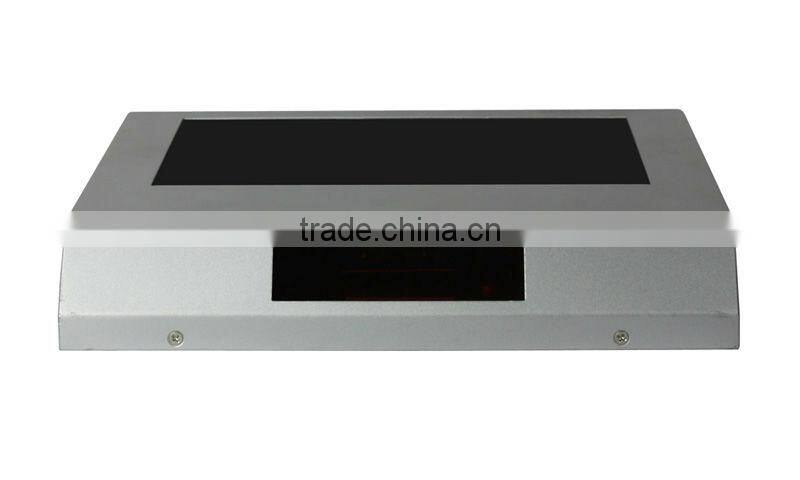

physical sample for your reference:

Main features:
1. Built-in 15" (4:3) TFT LCD screen.
2. Metal housing, with tempered glass covering the LCD screen.
3. Bar code reader is specially designed for commodity bar code.
4. Play from:
--Compact Flash card (CF card) or SD card
--USB flash drive
--Compact Flash card (CF card) or SD card
--USB flash drive
5. Update contents of the memory card by simply inserting an USB flash drive, no need to take out the memory card, no need to use a computer.
6. Timer function: the player powers on / off automatically everyday or every week at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame.
7. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing.
8. Theft-protection device effectively prevent the player and CF card or SD card from being stolen in public place.
9. Audio output: 2 built-in high quality stereo speakers.
10. Equipped with different brackets for supermarket shelf, wall mounting or standing on table top.
11. Very easy to install.
| LCD Screen | LCD Size: | 15 Inch |
| Active Area: | 304.1 (W) * 228.1 (H) (mm) | |
| Pixel Pitch: | 0.297 (W) * 0.297 (H) (mm) | |
| Screen Ratio: | 4:3 | |
| Resolution: | 1024 x 768 (H*V) | |
| Brightness: | 450cd/m2 | |
| Color: | 262K/16.7M (6bit/6bit+Hi-FRC) | |
| Contrast Ratio: | 450:1 | |
| View Angle: | 75°/75°/50°/60°(L/R/U/D) | |
| Response Time | 6/19 ms | |
| Support Formats | Video: | MPEG1 (VCD), MPEG4 |
| Audio: | MP3, WMA | |
| Picture: | JPEG | |
| Play From | Memory Flash: | CF or SD Card, Max. 8GB |
| USB: | USB 1.0 (Host) | |
| Installation | VESA: | Yes/Optional 75 * 75 mm |
| Desk Stand: | N/A | |
| Self Bracket: | Yes/Optional w/ Self Bracket | |
| Wall Mounting Bracket: | Yes/Optional w/ Wall Mounting Multi-angle Bracket | |
| Bar code scan parameters | Scan width: | 80mm |
| Effective scan distance: | 10mm-60mm | |
| Tilt adjustment: | 5 ° -70 ° (± 5 °) | |
| Distortion tolerance: | 5 ° -60 ° (± 5 °) | |
| Remote Controller Distance: | 4-5m | |
| Input Voltage: | AC100V-240V (50HZ-60HZ) | |
| Power Supply: | DC4A, 48W (MAX) | |
| Speaker: | Built-in 2x2W high quality stereo loudspeakers | |
| Working Temperature: | 0°C-45°C | |
| Storage Temperature: | -20°C- 60°C | |
| Working Humidity: | 20%-80% | |
| Storage Humidity: | 10%-95% | |
| Casing: | Metal | |
| Body Size: | 373(L) * 277(W) * 43(H) (mm) | |
| Body Weight: | 4 (kg) |
Your special needs, like printing logo, loading videos to CF/SD card, buying extra accessories, are also available.
