Specifications

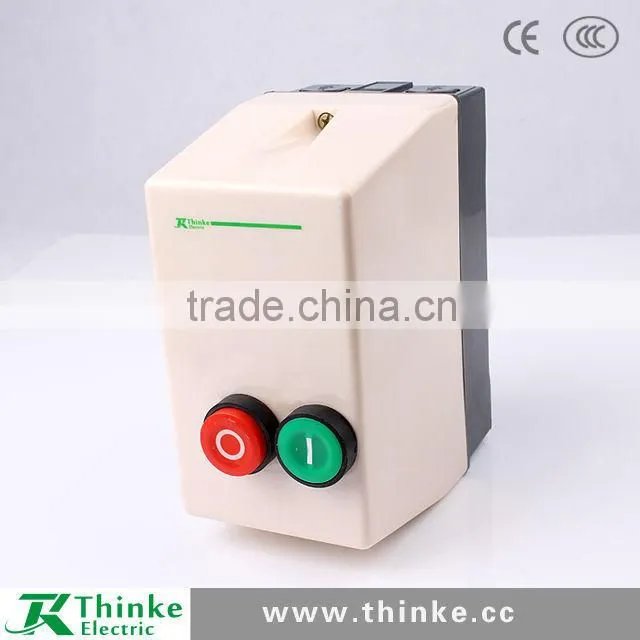

LE1 D Magnetic Motor Starterfessional manufacturer
2.easy to use, fast reaction
3.good price
Welcome,my friend!
Glad to introduce LE1 D Magnetic Motor Starter and our company to you. If you have any questions, please don't hesitate to ask me.
Product details
Application
Auto LE1D magnetic starter is mainly applied in circuit of AC 50 or 60Hz, voltage up to 660V for far distance
making and breaking circuit and frequently starting and controlling motor. It has the features of small volume,
light weight, low power consumption, high efficiency, safe and reliable performance etc.
Technology parameter
| Type | Maximum power AC3 dutyke kw/v | Rated current |
Type of enclosure |
Code number | Suitable thermal relay |
||||||
| 220 | 380 | 415 | 440 | 500 | 660 | LL (Long Life) |
NL(3) (Normal life) |
||||
| LE1-D09 | 2.2 | 4 | 4 | 4 | 4 | 4 | 9A | IP42 | LE1-D094 | LR2 D1312 | |
| IP65 | LE1-D093 | LR2 D1314 | |||||||||
| LE1-D12 | 3 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 12A | IP45 | LE1-D124 | LE1-D094 | LR2 D1316 |
| IP55 | LE1-D123 | LE1-D093 | |||||||||
| LE1-D18 | 4 | 7.5 | 9 | 9 | 10 | 10 | 18A | IP42 | LE1-D188 | LE1-D124 | LR2 D1321 |
| IP55 | LE1-D185 | LE1-D123 | |||||||||
| LE1-D25 | 5.5 | 11 | 11 | 11 | 15 | 15 | 25A | IP42 | LE1-D258 | LE1-D188 | LR2 D1322 |
| IP55 | LE1-D255 | LE1-D185 | LR2 D2353 | ||||||||
| LE1-D32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32A | IP55 | LE1-D325 | LE1-D258 | LR2 D2355 |
| LE1-D255 | |||||||||||
| LE1-D40 | 11 | 18.5 | 22 | 22 | 22 | 30 | 40A | IP55 | LE1-D405 | LE1-D325 | LR2 D3353 |
| LR2 D3355 | |||||||||||
| LE1-D50 | 15 | 22 | 25 | 30 | 30 | 33 | 50A | IP55 | LE1-D505 | LE1-D405 | LR2 D3357 |
| LR2 D3359 | |||||||||||
| LE1-D65 | 18.5 | 30 | 37 | 37 | 37 | 37 | 65A | IP55 | LE1-D655 | LE1-D505 | LR2 D3361 |
| LE1-D80 | 22 | 37 | 45 | 45 | 55 | 45 | 80A | IP55 | LE1-D805 | LE1-D655 | LR2 D3363 |
| LR2 D3365 | |||||||||||
| LE1-D95 | 25 | 45 | 45 | 45 | 55 | 45 | 95A | IP55 | LE1-D955 | LE1-D805 | LR2 D3365 |

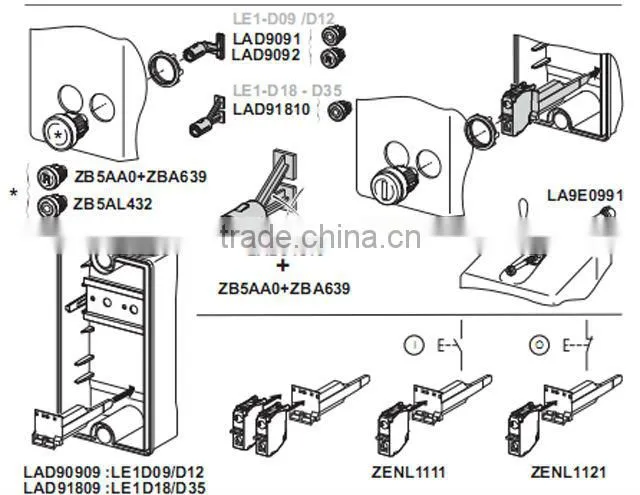

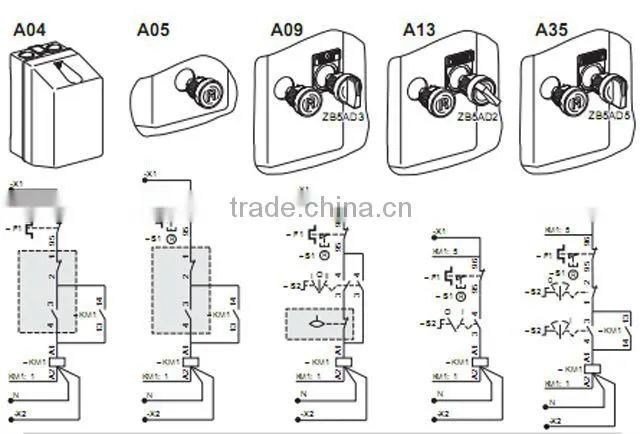

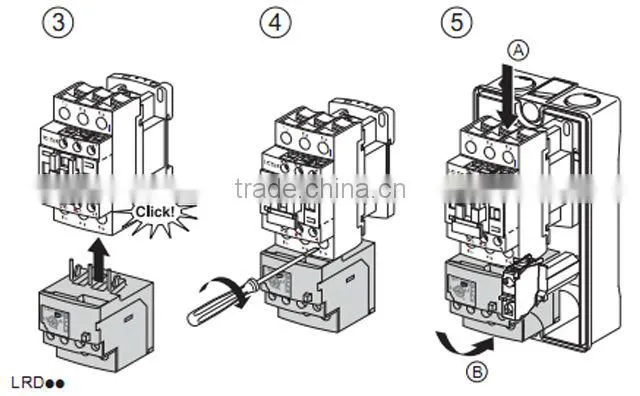

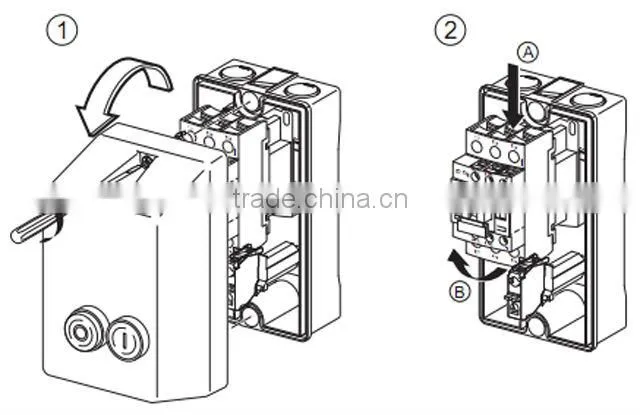

Diagrammatic drawing
