Home > Products > AC Contactor > LC1-K12 CJX2-K12 AC Contactor AC 24V

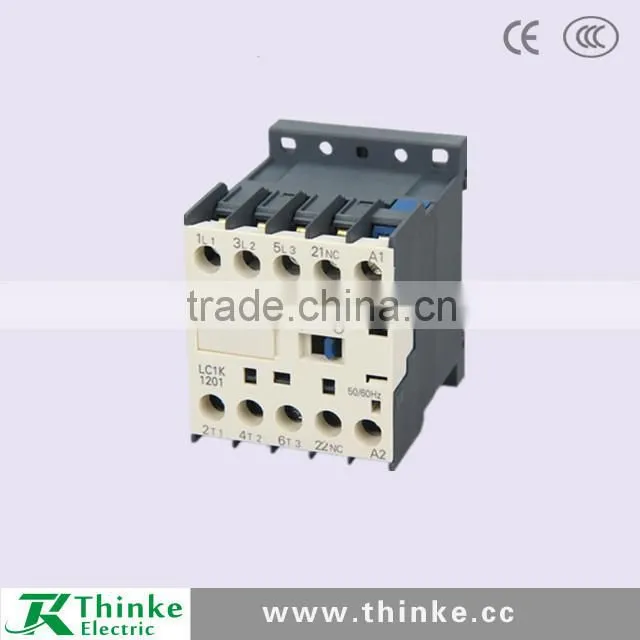

LC1-K12 CJX2-K12 AC Contactor AC 24V
- 300000 Piece / Pieces per Month
- Ningbo
- Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | THINKE/OEM | Model Number: | LC1-K1201 |
Electricity Type: | AC | Number of Pole: | 3 | Phase: | 3 |
Main Circuit Rating Voltage: | Other, 24V 36V 48V 110V 127V 220V 380V 440V 660V | Main Circuit Rating Current: | Other, 12A |
Product Description
Welcome, my friend!
Glad to introduce LC1-K12 CJX2-K12 AC Contactor AC 24V and our company to you. If you have any questions, please don't hesitate to ask me.
Product details
Application
LC1-K12 CJX2-K12 AC Contactor AC 24V is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 16A, to connect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flashover design, with multi-function combination, small volume, and reliable performance. They are perfect replacement for France TE LC1-K, LC1-E series products, can be widely applied to magnify/switch signal in micro-electronic interface.
Technology parameter
Type | Rated working current A(380V) | AC-3 use group | Contact data(1) | ||||
Control power KW | |||||||
220V | 380/415V | 440/500V | 660V | ||||
LC1-K06 | 6 | 1.5 | 2.2 | 3 | 3 | 3P+NC | 3P+NO |
LC1-K09 | 9 | 2.2 | 4 | 4 | 4 | 3P+NC | 3P+NO |
LC1-K12 | 12 | 3 | 5.5 | 5.5 | 4 | 3P+NC | 3P+NO |
LC1-K16 | 16 | 3 | 7.5 | 7.5 | 4 | 3P+NC | 3P+NO |
Specification type | LC1-K06 | LC1-K09 | LC1-K12 | LC1-K16 | |||
Use group under AC-3 | 6 | 9 | 12 | 16 | |||
Rated working current(Ie)A | 5 | 7.5 | 10 | 12 | |||
Conventional thermal current(Ith)A | 16 | 20 | 20 | 20 | |||
Rated working voltage (Ue)V | 380, 660 | ||||||
Rated insulltion voltage(Ui)V | 690 | ||||||
AC-3 (6Ie Ie) | Electrical life(time) | 0.5×106 | |||||
Operation frequency h-1 | 1200 | ||||||
AC-3 (6Ie Ie) | Electrical life(time) | 10×104 | |||||
Operation frequency h-1 | 300 | ||||||
Mecnical life | 3×106 | ||||||
Auxiliary contact | Conventional thermal current | 6A | |||||
Electrical life (times) | AC-15(360VA) | 0.5×106 | |||||
DC-13(13W) | |||||||
Coil specification | Rated control voltage(Us) | AC:12,24,45,110,220,380 DC:12,24,45,110,220 | |||||
Pick-up voltage | AC:0.85~1.1Us DC:0.85~1.1Us | ||||||
Releasing voltage | AC:0.1~0.75Us DC:0.2~0.75Us | ||||||
Coil power VA | Pick-up | 40 | |||||
Releasing | 4 | ||||||
Consumption | 1.2W | ||||||
pick-up time | 6~18ms | ||||||
Releasing time | 5~23ms | ||||||
Power factor | Making 0.8 Breaking0.3 |
