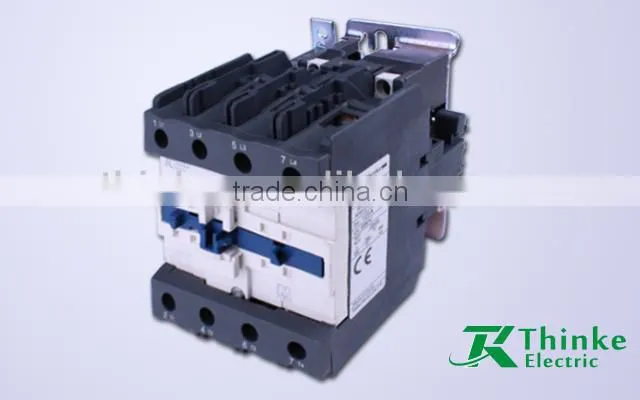

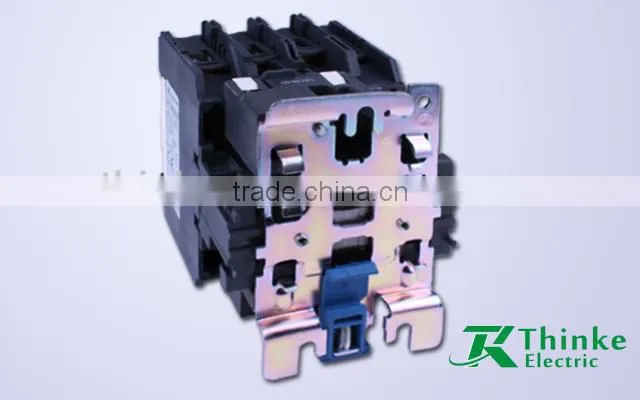

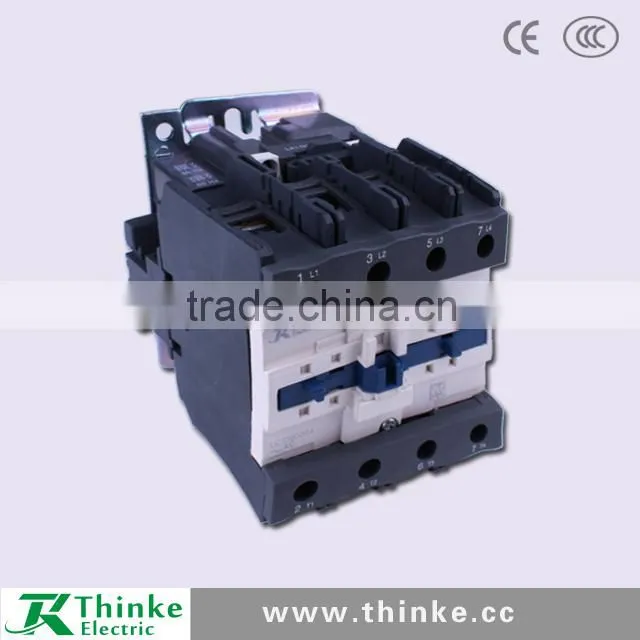

LC1D80008 China Suppliers 3 Phase 4 Poles Contactor

LC1D80008 China Suppliers 3 Phase 4 Poles Contactor thumbnail-1
LC1D80008 China Suppliers 3 Phase 4 Poles Contactor thumbnail-2
LC1D80008 China Suppliers 3 Phase 4 Poles Contactor thumbnail-3
LC1D80008 China Suppliers 3 Phase 4 Poles Contactor photo-1
LC1D80008 China Suppliers 3 Phase 4 Poles Contactor photo-2
LC1D80008 China Suppliers 3 Phase 4 Poles Contactor photo-3
US$ 17 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Thinke/OEM
Model Number:
LC1-D80008
Contact Supplier Request Quote Chat Now
Wenzhou Thinke Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Thinke/OEM
Model Number LC1-D80008
Electricity Type AC
Number of Pole 4
Phase 3
Main Circuit Rating Voltage Other, 24V 36V 48V 110V 127V 220V 380V 415V 440V
Main Circuit Rating Current Other, 80A



Welcome,my friend!



Glad to introduce LC1D80008 China Suppliers 3 Phase 4 Poles Contactor and our company to you. If you have any questions, please don't hesitate to ask me.







Product details

 LC1D80008 China Suppliers 3 Phase 4 Poles Contactor



 LC1D80008 China Suppliers 3 Phase 4 Poles Contactor

 LC1D80008 China Suppliers 3 Phase 4 Poles Contactor





Application







LC1D80008 China Suppliers 3 Phase 4 Poles Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.







Technology parameter











Type No. of Poles    Aux.Contact

 Max. Resistive Current,

 le AC1 (A)

Max. Inductive Current,

le AC3 (A)
NO NC NO NC
LC1-D098       2 2 1 1 20 9
LC1-DT20       4 0 1 1 20 9
LC1-D128       2 2 1 1 25 12
LC1-DT25       4 0 1 1 25 12
LC1-D188       2 2 1 1 32 18
LC1-DT32        4 0 1 1 32 18
LC1-D258       2 2 1 1 40 25
LC1-DT40       4 0 1 1 40 25
LC1DT80A3    4 0 0 0 80 50
LC1-D40004    4 0 0 0 60 40
LC1-D40008    2 2 0 0 60 40
LC1-D50004   4 0 0 0 80 50
LC1-D50008   2 2 0 0 80 50
LC1-D65004   4 0 0 0 80 65
LC1-D65008    2 2 0 0 80 65
LC1-D80004   4 0 0 0 125 80
LC1-D80008   2 2 0 0 125 80
LC1-D95004   4 0 0 0 125 95
LC1-D95008   2 2 0 0 125 95
