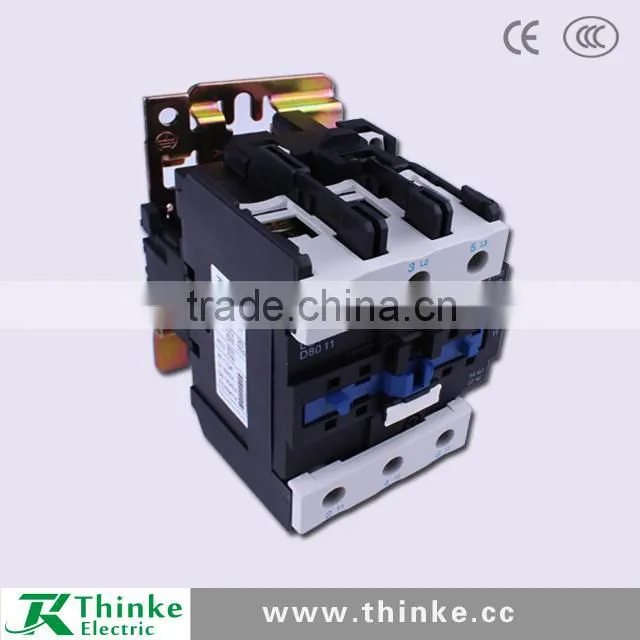

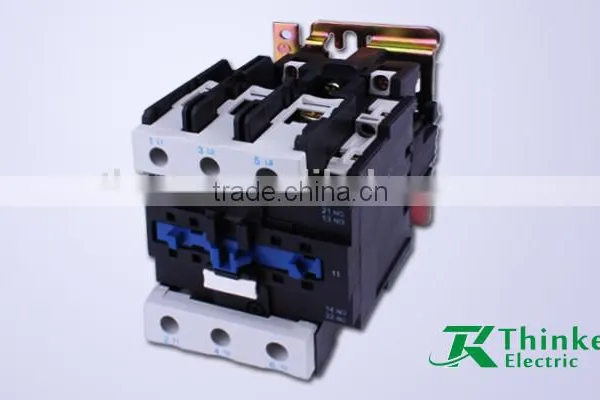

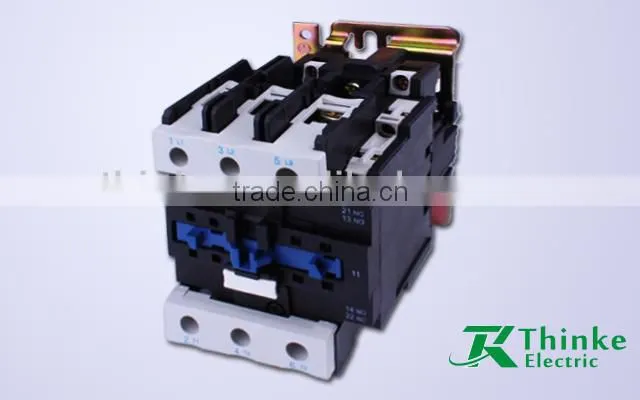

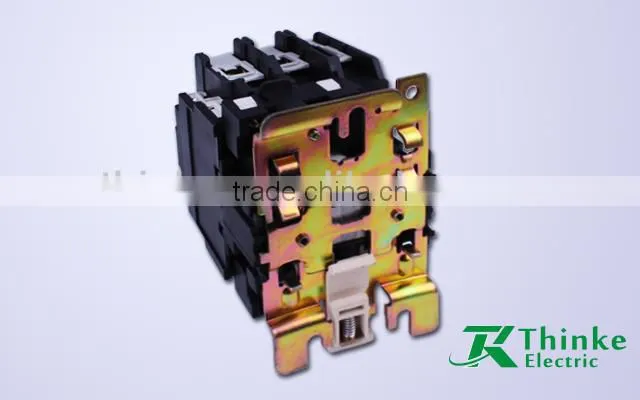

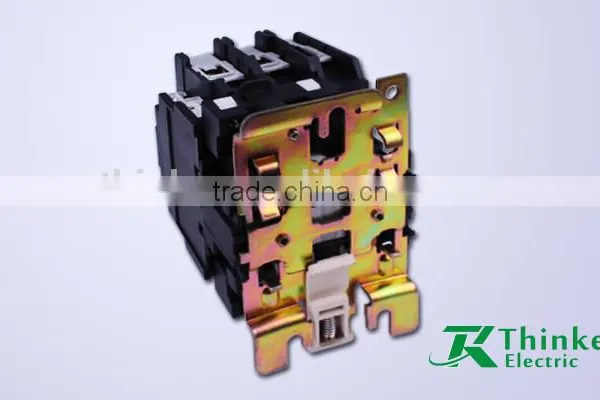

LC1 D8011 80 Amp AC Contactor

LC1 D8011 80 Amp AC Contactor thumbnail-1
LC1 D8011 80 Amp AC Contactor thumbnail-2
LC1 D8011 80 Amp AC Contactor thumbnail-3
LC1 D8011 80 Amp AC Contactor photo-1
LC1 D8011 80 Amp AC Contactor photo-2
LC1 D8011 80 Amp AC Contactor photo-3
US$ 7.4 - 26 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Thinke or OEM
Model Number:
LC1-D8011
Contact Supplier Request Quote Chat Now
Wenzhou Thinke Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NIngbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Thinke or OEM
Model Number LC1-D8011
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, 24V 36V 48V 110V 127V 220V 380V 440V 660V
Main Circuit Rating Current Other, 80A

Welcome, my friend!



Glad to introduce LC1 D8011 80 amp AC Contactor and our company to you. If you have any questions, please don't hesitate to ask me.







Product details







 LC1 D8011 80 amp AC ContactorLC1 D8011 80 amp AC ContactorLC1 D8011 80 amp AC Contactor











Application







LC1 D8011 80 amp AC Contactor is suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~300A under AC3 duty. It is mainly used for making/breaking electric circuits at a long distance & for frequent starting/stopping & controlling A.C. Motors. It is used in combination with thermal relay to compose a magnetic motor starter.








Technology parameter











Type

Rated
insulation

voltage(V

Conventional
thermal

current(A)

Rated
operation

current(A)

 Control power(kw)

No .of

contacts

Installation

 Method
220V 380V 415V 440V 660V
LC1-0910 660 20 9 2.2 4 4 4 5.5 3P+1NO

1with two

 screws
235mm din

rail
LC1-0901 660 3P+1NC
LC1-1210 660 20 12 3 5.5 5.5 5.5 7.5 3P+1NO
LC1-1201 660 3P+1NC
LC1-1810 660 32 18 4 7.5 9 9 9 3P+1NO
LC1-1801 660 3P+1NC
LC1-2510 660 40 25 5.5 11 11 11 15 3P+1NO
LC1-2501 660 3P+1NC
LC1-3210 660 50 32 7.5 15 15 15 18.5 3P+1NO
LC1-3201 660 3P+1NC
LC1-4011 660 60 40 11 18.5 22 22 30 3P+NO+NC

1with three

screws
 275mm

 0r

35mm din

 rail
LC1-5011 660 80 50 15 22 25 30 33
LC1-6511 660 80 65 18.5 30 37 37 37
LC1-8011 660 125 80 22 37 45 45 45
LC1-9511 660 125 95 25 45 45 45 45
