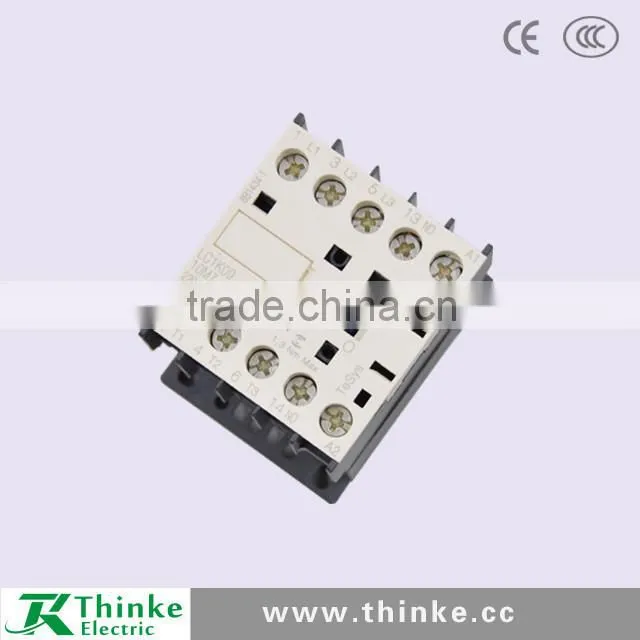

LC1-K09 New Miniature 220V Coil AC Contactor

LC1-K09 New Miniature 220V Coil AC Contactor thumbnail-1
LC1-K09 New Miniature 220V Coil AC Contactor photo-1
US$ 2.9 - 4 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
THINKE/OEM
Model Number:
LC1-K0910
Contact Supplier Request Quote Chat Now
Wenzhou Thinke Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name THINKE/OEM
Model Number LC1-K0910
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, 24V 36V 48V 110V 127V 220V 380V 440V 660V
Main Circuit Rating Current Other, 9A

Welcome, my friend!



Glad to introduce LC1-K09 New Miniature 220V Coil AC Contactor and our company to you. If you have any questions, please don't hesitate to ask me.







Product details







  LC1-K09 New Miniature 220V Coil AC Contactor









Application







LC1-K09 New Miniature 220V Coil AC Contactor is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 16A, to connect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flashover design, with multi-function combination, small volume, and reliable performance. They are perfect replacement for France TE LC1-K, LC1-E series products, can be widely applied to magnify/switch signal in micro-electronic interface.








Technology parameter











Type Rated working
current A(380V) 		AC-3 use group Contact
data(1)
Control power KW
220V 380/415V 440/500V 660V
LC1-K06 6 1.5 2.2 3 3 3P+NC 3P+NO
LC1-K09 9 2.2 4 4 4 3P+NC 3P+NO
LC1-K12 12 3 5.5 5.5 4 3P+NC 3P+NO
LC1-K16 16 3 7.5 7.5 4 3P+NC 3P+NO
Specification type LC1-K06 LC1-K09 LC1-K12 LC1-K16
Use group under AC-3 6 9 12 16
Rated working current(Ie)A 5 7.5 10 12
Conventional thermal current(Ith)A 16 20 20 20
Rated working voltage (Ue)V 380, 660
Rated insulltion voltage(Ui)V 690
AC-3
(6Ie Ie) 		Electrical life(time) 0.5×106
Operation frequency h-1 1200
AC-3
(6Ie Ie) 		Electrical life(time) 10×104
Operation frequency h-1 300
Mecnical life 3×106
Auxiliary
contact 		Conventional thermal current 6A
Electrical life
(times) 		AC-15(360VA) 0.5×106
DC-13(13W)
Coil
specification 		Rated control voltage(Us) AC:12,24,45,110,220,380
DC:12,24,45,110,220
Pick-up voltage AC:0.85~1.1Us DC:0.85~1.1Us
Releasing voltage AC:0.1~0.75Us DC:0.2~0.75Us
Coil power VA Pick-up 40
Releasing 4
Consumption 1.2W
pick-up time 6~18ms
Releasing time 5~23ms
Power factor Making 0.8 Breaking0.3
