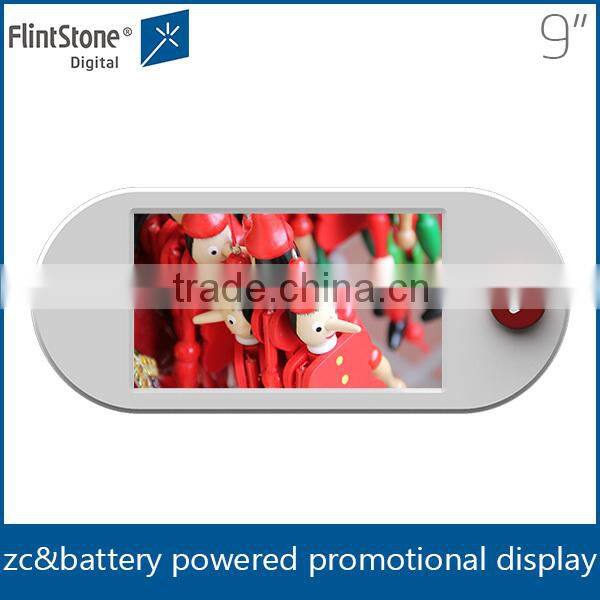

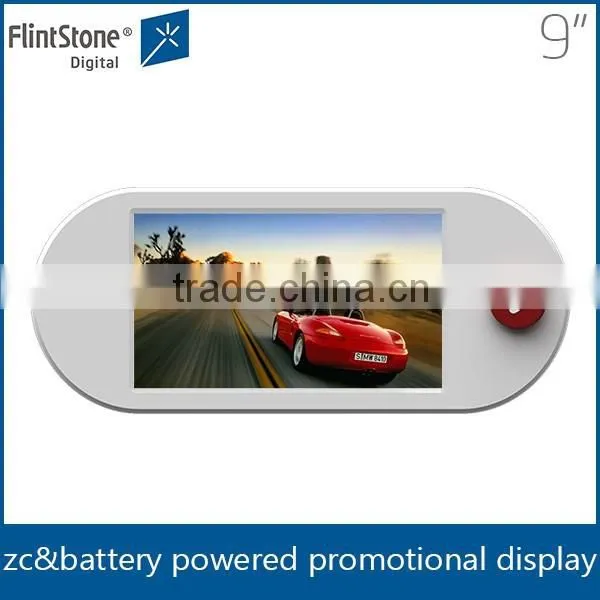

Flintstone 9 inch flexible transparent lcd display, transparent lcd display box

Specifications

9" transparent lcd display
1.timer function
2.battery power
3.update contents automatically
4.CE/FCC

Flintstone 9 inch flexible transparent lcd display, transparent lcd display box





key features



1.Industrial-grade design, heavy-duty built for non-stop loop-playing 24-7-365.

2. Real energy-conserving and environment-protective. Play programs by pressing the play button when in need. The player remains in the shutdown state when no viewer presses.

3. Powered by rechargeable lithium battery pack, supports 24 hours non-stop play and replay. Portable and very convenient for users.

4. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive

5. Function keys on the player can be disabled or enabled



main functions



1. Play mp4 movie and digital photos; Built-in 9 inch TFT LCD screen, with Acryl protection; easy-to-install on supermarket shelves, tabletop, car and taxi, etc.

 2. Play from:

     --Secure digital card (SD card)

 3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card

 4. Support both built-in battery and AC power supply

 5. 7 Function keys on the player can be disabled or enabled

 6. Timer function(Not commonly used): the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame

 7. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing

 8. Theft-protection device effectively prevent the battery and SD card from being stolen in public place

 9. Audio output: 2 X built-in high quality stereo speakers

 10. With professional easy-to-use stand set; hang on shelf or stand on table



specification



Model	AD905BB
LCD Screen	LCD Size:	9 Inch
	Active Area:	198.0 (W) * 111.696 (H) (mm)
	Pixel Pitch:	0.0825(W) * 0.2327 (H) (mm)
	Screen Ratio:	16:9
	Resolution:	800 x 400 (H*V)
	Brightness:	200cd/m2
	Color:	16.7M
	Contrast Ratio:	500:1
	View Angle:	70°/70°/50°/70°(L/R/U/D)
	Response Time	10/15ms
Support Formats	Video:	MPEG1 (VCD), MPEG2 (DVD), MPEG4 (DIVX, XVID, DX50)
	Picture:	JPEG
	Video Decode Maximum Resolution:	720 × 480P
Play Mode	Press the play button
Battery	Play duration:	24 hours
	Stand-by duration:	60 hours
	Single lithium battery size:	Diameter: 18mm, length:65mm
	Single lthium battery capability:	3.7V/2200MA

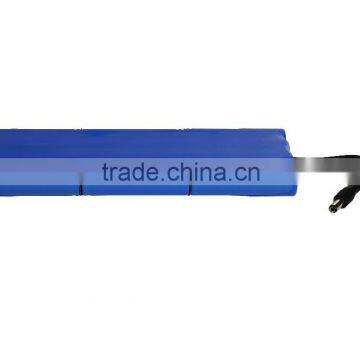

	Lithium battery pack size:	199 (L) * 74 (W) * 18.5 (H) (mm)
	Lithium battery pack capability:	7.4V/13.2AH
Play From	Memory Flash:	SD Card, Max. 8GB
	Built-in Flash Memory:	Optional, confirm before production
	USB:	High speed USB 2.0  (Host)
Installation	VESA:	Yes/Optional w/ various kinds of VEVA convertors/Hang eyelets
	Desk Stand:	Yes/Optional w/ Desktop Bracket
	Self Bracket:	Yes/Optional w/ Self Bracket
	Wall Mounting Bracket:	Yes/Optional w/ Wall Mounting Multi-angle Bracket
Others	Speaker:	Built-in 2x1.5W/8R high quality stereo loudspeakers
	Working Temperature:	0°C-40°C
	Storage Temperature:	-20°C-60°C
	Working Humidity:	20%-80%
	Storage Humidity:	10%-95%
	Casing:	Plastic
	Body Size:	350(L) * 147(W) * 58(H) (mm)
	Body Weight:	1.5 (kg)



Application:

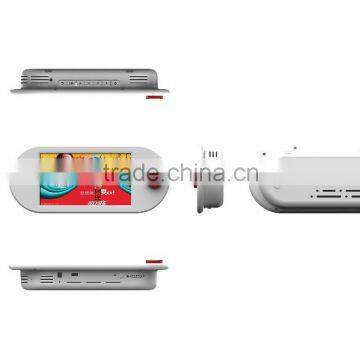

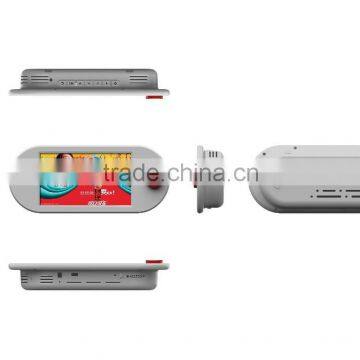

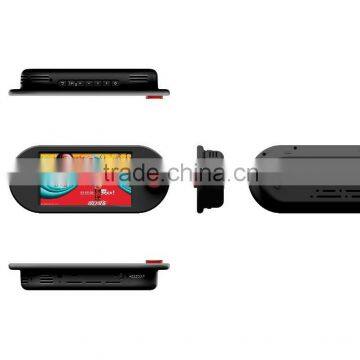

Product images:

Certification:







Who are we?

Southern Stars Enterprises Co Ltd has focused on the original R&D, electronic and functionality designing and manufacturing of over 60 models of HEAVY DUTY digital signage equipments and system with various special functions.
Since our establishment in 1996, Southern Stars  has been relentlessly striving to achieve excellent quality level, going to great length to tackle any tiny quality defects. We provide most durable and stable long hour working digital signage players to the world market of commercial usage; we also provide heavy duty while user-friendly internet digital signage system (with CMS system) and to satisfy our customers with specialist consultancy and sincere service.





Our Main market:



We are ready to serve you !





Trade Terms:

1.    Payment methods: we accept T/T, PayPal , L/C , Western Union

2.    Production lead time: 3-4 working days for sample, about 25 working days for massive order.

3.    We offer 12 months of quality warranty.

Payment method:



Packing:



Why choose us?

 1.      With 9 years of experience in this field, we truly understand your need for heavy duty ad players; all our products are industrial-grade designed, heavy-duty built for non-stop loop-playing video and picture 24 / 7 / 365. They are durable, stable, solid and tough like a rock.

2.      All our products go through 72 hours of high temperature aging test before delivery; defective rate is less than 0.1%. We are the only one manufacturer to apply this rigorous testing method.

3.      We always deliver on time as we promised;

4.      We are proud to be appointed supplier for many Fortune 500 companies, such as Bosch, ICI Dulux, Toys”R”Us, Siemens, etc. We are THE pro; let us serve you with our professional experiences and specialties.

Contact us now!

...
