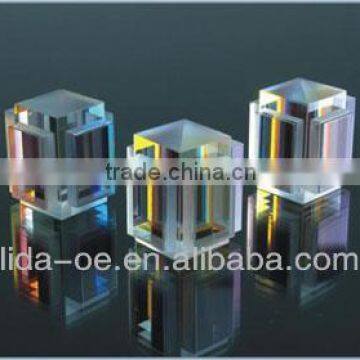

Help CenterX-cube Prism 32x32x30mm
US$ 10 - 80
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
LIDA
Model Number:
32X32X30
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40/20 Surface Quality X-cube Prism 20x20x17mm With AR CoatingUS$ 30 - 80MOQ: 100 Pieces -
TIR Prism With AR Coatin LDTIR0021US$ 3 - 15MOQ: 100 Pieces
-
TIR PrismUS$ 5 - 20MOQ: 100 Pieces
-
Big Size Optical Fingerprint Prism for Four Fingers Scanner 103S800US$ 10 - 50MOQ: 100 Pieces
-
TIR Prism for DLP ProjectorUS$ 3 - 15MOQ: 100 Pieces
Place of Origin
Henan, China
Brand Name
LIDA
Model Number
32X32X30
Material
H-K9L
Surface Quality
40/20
Dimension Tolerance
±0.02mm
Angle Tolerance
±3"
Flatness
Lambda/10
Specifications
Its main function is to transfer R,G,B three primary color images, and combine them as a total chromatic image.Principle and function:
Its main function is to transfer R,G,B three primary color images, and combine them as a total chromatic image, then pass through the lens assembly projecting onto the screen.
Specfication:
| Material | Optical glass,Fused silica, etc |
| Dimension Tolerance | ±0.02mm |
| Angular Accuracy | ±3" |
| Surface Quality | 20/10 |
| Surface Accuracy | λ/10 |
| Clear aperture | >90 |
| Coating | Reflective Coating, Polarizing Coating, AR Coating,Dichroic Coating, Filtering Coating, Phase Coating. |
1. Outer dimension:50×50×50~10×10×10,accuracy:±0.1.
2. Surface form N=0.5~1
3. Angle of Reflective surface:±10″
4. Mismatch controled within:1μm
5. Width of combined center reticle : 7μm
6. Refractive index of 4 prisms bonded together within 0.00005.
7. Coating characteristic: 420nm~680nm,Blue Rs(avg.)>95%,Green Tp(avg.)>97.5%,Red Rs(avg.)>95%,Difference of two coating surface within 3nm.
Production line:
