Help Center720P HD MJPEG USB2.0 Camera Module With 3.6mm Board Lens SB102H-L36
Related Products
-
2014 Hot Saling!! 720P H.264 MJPEG USB2.0 CMOS Board Camera Module With 8mm Board Lens SB103H-L80US$ 45 - 80MOQ: 10 Pieces -
5mm Photocells in Hermetic Packing PhotoresistorUS$ 0.4 - 1MOQ: 100 Pieces
-
720P HD MJPEG USB Camera Module With 8mm Board Lens SB102H-L80US$ 20 - 60MOQ: 10 Pieces
-
720P HD MJPEG USB Camera Module With 2.8mm Board Lens SB102H-L28US$ 20 - 60MOQ: 10 Pieces
-
2014 New Arrival! OV 7725 CMOS USB Camera Module With Microphone SB101E-L28 With 2.8 mm Board LensUS$ 15 - 30MOQ: 100 Pieces
Specifications
USB camera module1.High speed USB 2.0 interface;
2.720P CMOS sensor for high quality image;
3.Advanced MJPEG compression
General Description
The 720P HD USB2.0 CMOS board camera module(model:SB102H) is ideal for many
applications like security systems, portable video system,video phones, industrial
machine monitoring and toys. It use high quality image sensors made by OmniVision ,
one of the world leaders in this fieldof electronics.
It use MJPEG compression technology to reach high frame rate video output.
The HD USB2.0 camera module is designed for consumer items ,equipment manufacturers, experimenters and hobbyists.
Applications
Car and ship control, electrical equipment,oil field equipment,industrial equipment, remote site monitoring, environmental monitoring, car tracking system etc.
Features
720P CMOS sensor for high quality image and low power consumption.
High speed USB 2.0 interface for high resolution PC camera interface.
Active pixel technology for sharp image and accurate color reproduction.
Superior low light performance – ideal for any lighting condition.
Advanced MJPEG compression technology
Super small outline and thin profile for embedded applications.
High frame rate
High quality and changeable lens for true to life undistorted color image.
Bus powered with low power consumption – ideal for portable equipment.
Camera with UVC.
Support embeded system
Parameters
Image Sensor
OmniVision1/4” Color CMOS image sensor OV9712
Effective Pixels
1280 (H) x 720 (V) pixels
Signal Output
Serial data for USB standard compliant 2.0 and 1.1
Output format
YUV/M-JPEG ,
Frame Rate
MJPEG 60 fps @ 640 x 480
Operating System
Linux 2.6.26 or above, Windows XP SP2or above, Android, Windows CE
High quality lens for true to life undistorted color image
Superior low light performance – ideal for any lighting condition.
Operating temperature
-30°C-65°C
Power Consumption
50mA

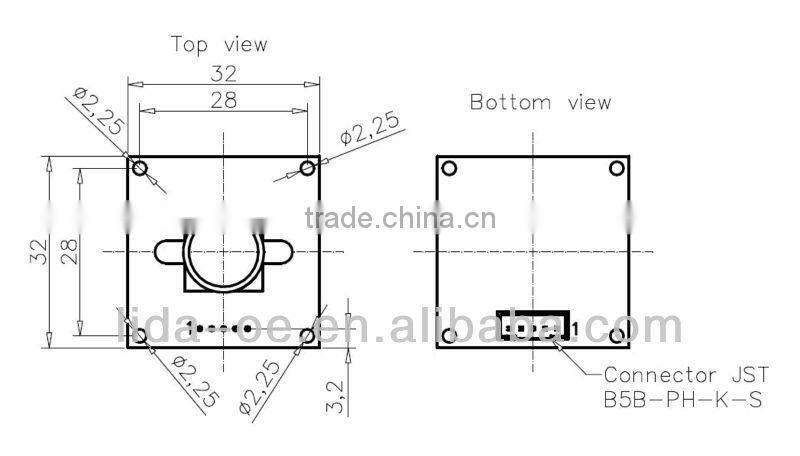

Dimensions (mm)
32mm*32mm

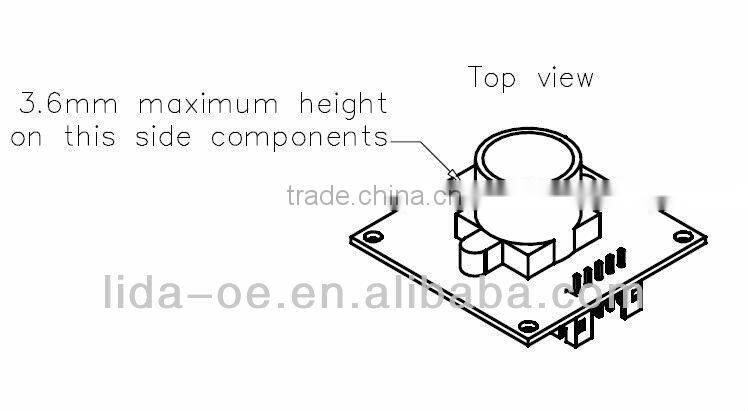

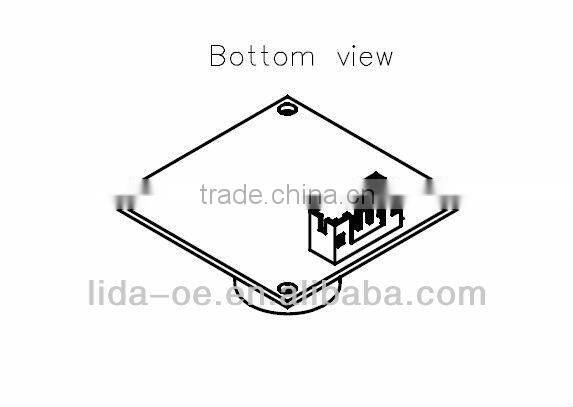

Board Layout
USB Interface
Connecting the Device to USB

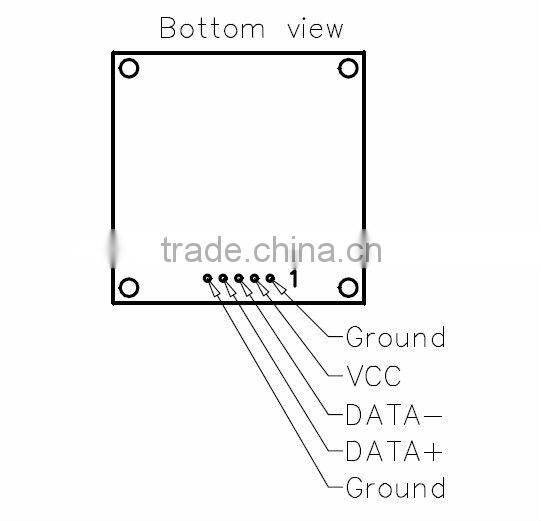

Pin-outs:
