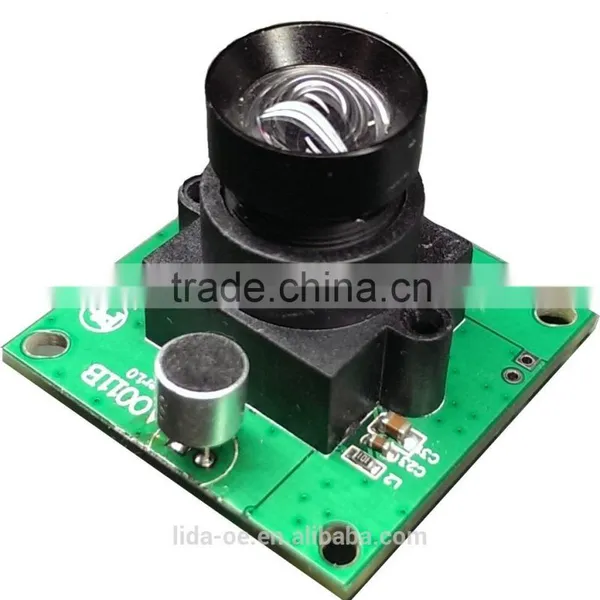

Help CenterOV 7725 CMOS USB Camera Module With Microphone SB101E-L36 With 3.6 mm Board Lens
Related Products
-
20mm Photocells With Wide Dynamic Range PhotoresistorUS$ 1 - 2MOQ: 100 Pieces -
720P HD MJPEG USB Camera Module With 6mm Board Lens SB102H-L60US$ 20 - 60MOQ: 10 Pieces
-
720P HD MJPEG USB Camera Module With 2.8mm Board Lens SB102H-L28US$ 20 - 60MOQ: 10 Pieces
-
720P HD MJPEG USB Camera Module With 6mm Board Lens SB102H-L60US$ 20 - 60MOQ: 10 Pieces
-
C429-L36 JPEG Compression VGA Camera Module WITH IR-CUT Filter Mounted on Sensor & 3.6mm LensUS$ 18 - 25MOQ: 100 Pieces
Specifications
USB camera module1.High speed USB 2.0 interface
2.High quality image CMOS sensors
3.High frame rate with UVC
4. micphone
General Description
The low cost USB CMOS board camera module(model:SB101E) is ideal for many
applications like security systems, portable video system,video phones, industrial
machine monitoring and toys. It use high quality image sensors made by OmniVision,
one of the world leaders in this fieldof electronics.
The USB camera module are not designed as consumer items but are ideal forequipment manufacturers, experimenters and hobbyists.
Applications
Car and ship control, electrical equipment,oil field equipment,industrial equipment, remote site monitoring, environmental monitoring, etc.
Features
CMOS VGA sensor for high quality image and low power consumption.
High speed USB 2.0 interface for high resolution PC camera interface.
Active pixel technology for sharp image and accurate color reproduction.
Superior low light performance – ideal for any lighting condition.
Super small outline and thin profile for embedded applications.
High frame rate– deliver 30 fps in VGA.
High quality lens for true to life undistorted color image.
Bus powered with low power consumption – ideal for portable equipment.
UVC for use in Linux, Windows XP SP2 or above.
Camera with UVC.
Parameters
Image Sensor
1/4” Color CMOS image sensor OV7725
DSP
AV318S
Effective Pixels
640 (H) x 480 (V) pixels
Signal Output
Serial data for USB standard compliant 2.0 and 1.1
Performance
30 fps @ 640 x 480
Operating System
O/SWindows XP , VISTA,win7 and Linux
UVC
Windows XP SP2 or above
Operating temperature
0°C-65°C
Power Consumption
50mA
Dimensions (mm)
32mm*32mm
Audio
Support single and differential microphone input,
Audio output format: 48KHz(16B).
ISO full high bandwidth audio endpoint.
Support mute and volume control.
Support for USB audio class driver.
Built-in mono sound SAR ADC PGA (24 decibels),
a preamplifier (20dB) bias circuit.
Board Layout
USB Interface
Connecting the Device to USB
Pin-outs:
