FAJS Carburetor 19600.060/10550.174

FAJS Carburetor 19600.060/10550.174 thumbnail-1
FAJS Carburetor 19600.060/10550.174 thumbnail-2
FAJS Carburetor 19600.060/10550.174 thumbnail-3
FAJS Carburetor 19600.060/10550.174 thumbnail-4
FAJS Carburetor 19600.060/10550.174 thumbnail-5
FAJS Carburetor 19600.060/10550.174 thumbnail-6
FAJS Carburetor 19600.060/10550.174 photo-1

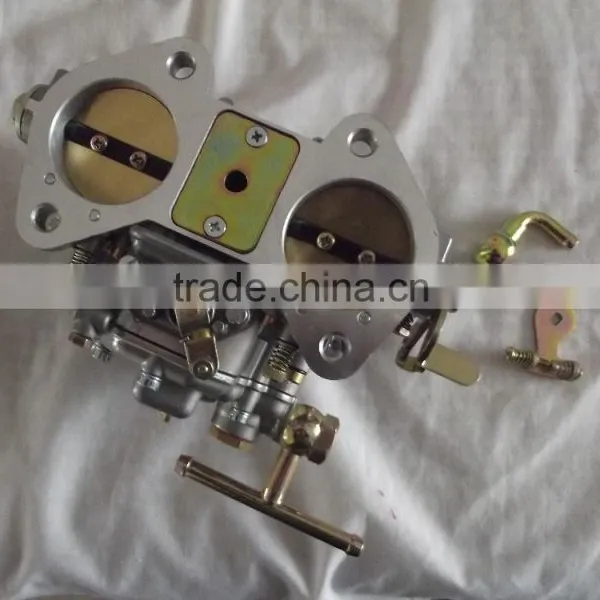

FAJS Carburetor 19600.060/10550.174 photo-2

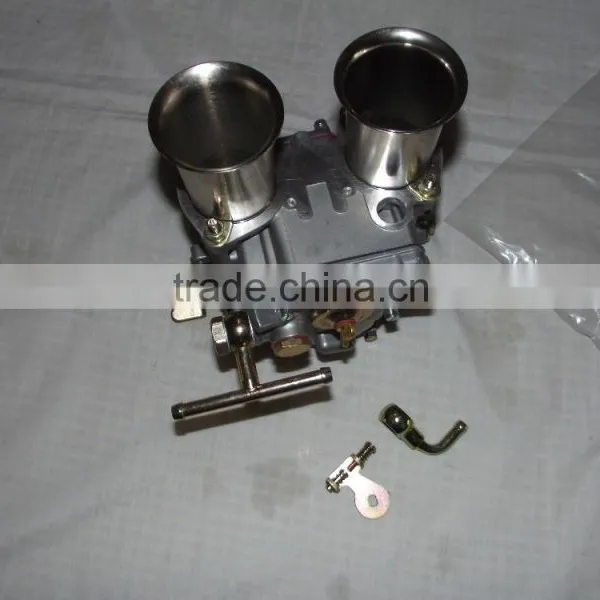

FAJS Carburetor 19600.060/10550.174 photo-3

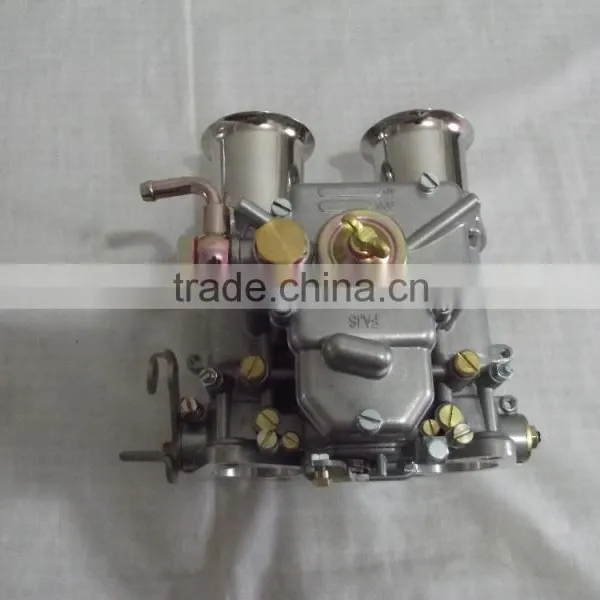

FAJS Carburetor 19600.060/10550.174 photo-4

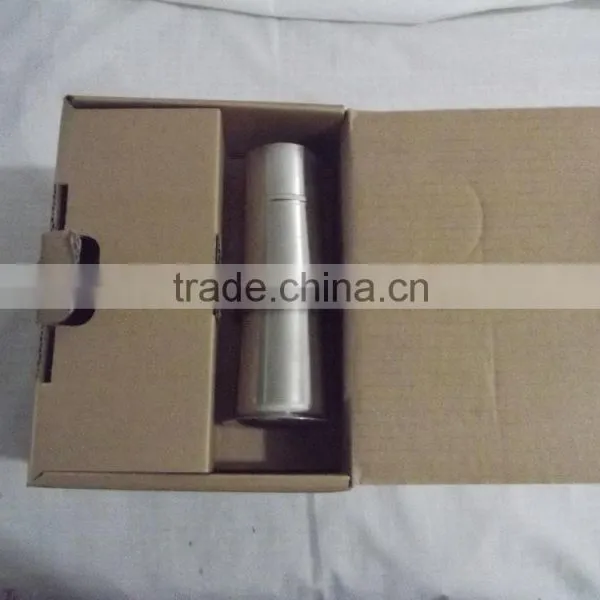

FAJS Carburetor 19600.060/10550.174 photo-5
FAJS Carburetor 19600.060/10550.174 photo-6
US$ 135 - 151 MOQ: 12 Parcels
Key Specifications
Get Latest Price
Type:
Carburetor
Size:
45MM
Car Make:
Porsche,Beetle,Chevrolet Nova/ Chevelle/ Camaro/ Impalas
Contact Supplier Request Quote Chat Now
Jilin FAJS Automobile Accessory Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Carburetor
Size 45MM
Car Make Porsche,Beetle,Chevrolet Nova/ Chevelle/ Camaro/ Impalas
OE NO. 19600.060
Place of Origin Italy
Brand Name weber
Model Number 19600.060
Warranty 1 Years

Specifications

Weber carburetor40/ 45DCOE 19600.060/10550.174

  • FAJS carburetor 19600.060/10550.174FAJS carburetor 19600.060/10550.174FAJS carburetor 19600.060/10550.174

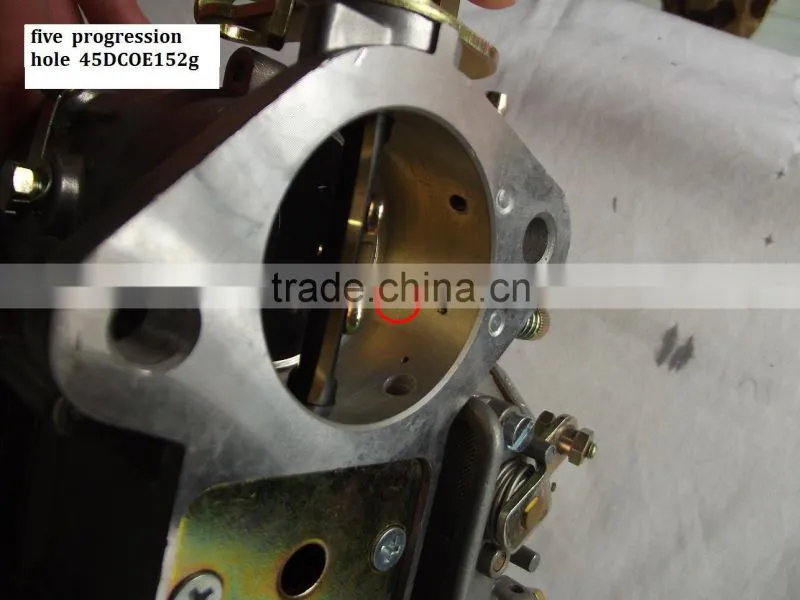

 FAJS carburetor 19600.060/10550.174

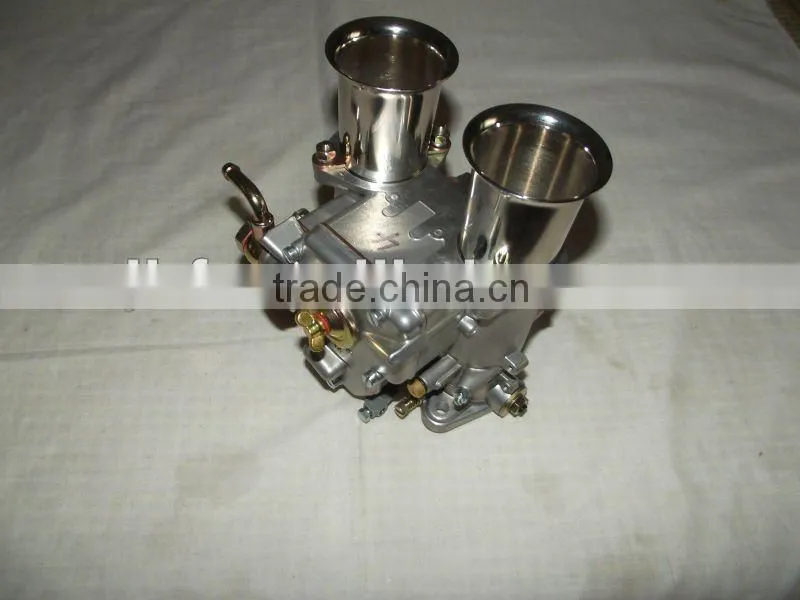

FAJS carburetor 19600.060/10550.174



FAJS 40/45 DCOE - PERFORMANCE, ADAPTABILITY, AND BEAUTY!

The 40/45mm Weber DCOE – a legendary performer in European Grand Prix racing, is a study in superb design and craftsmanship. One of our most versatile carburetor models, DCOE carburetors are available from FAJS in either 40 or 45mm bore and throttle plate diameter. The "DCOE" suffix indicates that this is a high-performance, 2-barrel side draft carburetor.

The DCOE carburetor architecture is simple and elegant, with no metering rods, power valves, rubber seals or plastic parts. It features a brass accelerator pump and floats, and its throttle shaft rides in precision roller bearings. Our DCOE carburetors can be set up to work with nearly any engine by virtue of interchangeable venturi and a host of precision tuning parts. Superb throttle response, torque, and horsepower output are the hallmarks of these excellent carbs.

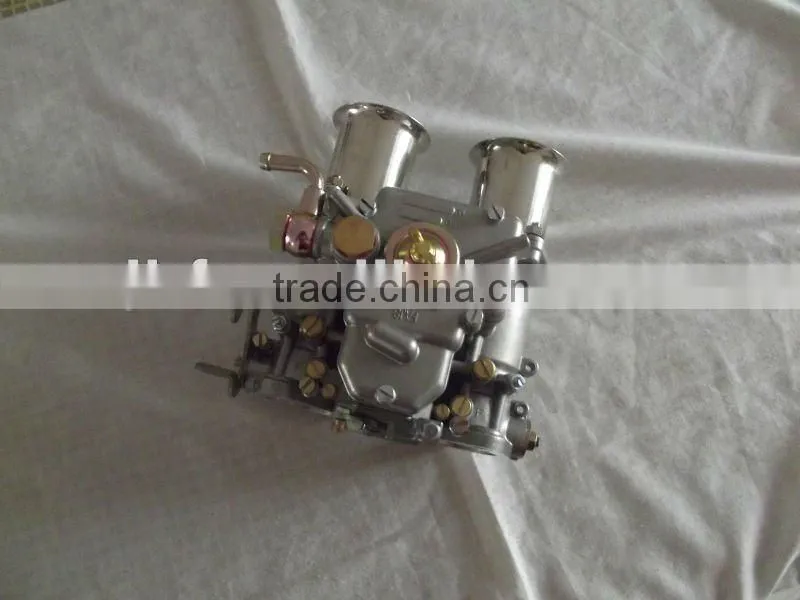

FAJS carburetor 19600.060/10550.174

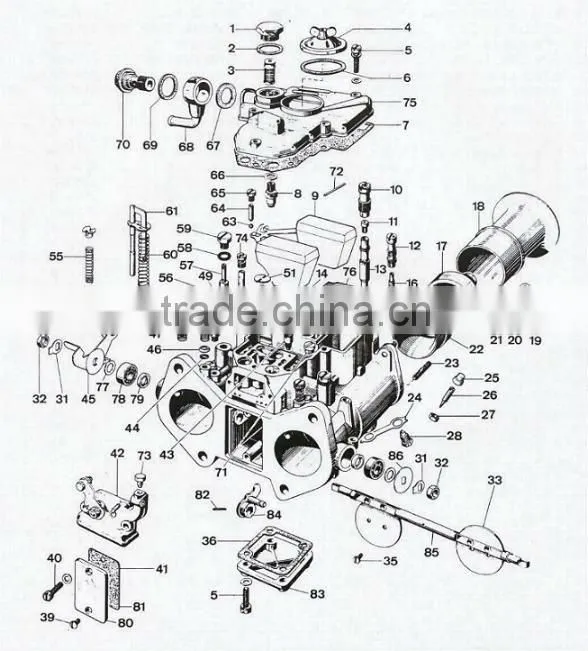

Fig Qty Description Part Number Fig Qty Description Part Number
1 1 Filter Cover 61002.010 46 2 Cup Washer 58000.006
2 1 Filter Cover Gasket 41530.024 47 3 Spring 47600.007
3 1 Filter Element 37022.010 48 2 Vacuum Screw 64590.008
4 1 Jet Inspection Cover 32376.003 49 2 Pump Jet Gasket 41535.021
5 9 Screw 64700.001 50 1 Spring 47605.012
6 1 Jet Inspection Cover Gasket 41550.002 51 1 Spring Plate 52210.006
7 1 Top Cover Gasket 41715.011 52 1 Throttle Stop Screw 64625.012
8 1 Needle Valve 79503.200 53 1 Pump Plunger 58602.003
9 1 Float (plastic) 41030.034 54 2 Starter Valve 64330.003
10 2 Emulsion Tube Holder 52580.001 55 2 Starter Valve Spring 47600.105
11 2 Air Corrector Jet 77401.* 56 2 Idle Mixture Screw 64750.003
12 2 Idle Jet Holder 52585.006 57 2 Pump Jet 76801.*
13 2 Emuslion Tube 61450.* 58 2 Pump Jet Oring 41565.009
14 1 Stud 64955.007 59 2 Pump Jet Cover 61015.008
15 2 Main Jet 73401.* 60 1 Pump Rod Spring 47600.064
16 2 Idle Jet *.* 61 1 Pump Rod 10410.015
17 2 Auxillary Venturi 69602.450 62 2 Starter Jet 75507.085
18 2 Air Horn 52840.001 63 2 Pump Valve Ball 58300.003
19 4 Air Horn nut 34705.004 64 2 Stuffing Ball 52730.001
20 4 Waasher 55525.010 65 2 Retaining Screw 58070.008
21 4 Air Horn Tab 521550.012 66 1 Neddle Valve Gasket 83102.100
22 2 Main Venturi 72116.* 67 1 Fuel Union Gasket 41530.031
23 4 Stud 64955.110 68 1 Fuel Union 10536.035
24 2 Lock Washer 34710.003 69 1 Fuel Union Gasket 41530.024
25 2 Cap 14945.003 70 1 Fuel Union Bolt 12715.008
26 2 Air Bypass Screw 64750.002 71 2 Inspection Cover 61015.009
27 2 Lock Nut 34705.001 72 1 Float Pin 52000.001
28 2 Locking Screw 64830.006 73 1 Cable Clamp 64605.017
31 2 Lock Washer 55520.004 74 2 Starter Air Jet 77505.150
32 2 Throttle Shaft Nut 34710.003 75 1 Top Cover 31734.197
33 2 Throttle Plate 64005.044 76 1 Plate 52130.003
35 4 Throttle Plate Screw 64520.027 77 2 Washer 55510.128
36 1 Cover Gasket 41640.001 78 2 Bearing 32650.001
39 2 Screw 64750.009 79 2 Oring 41575.019
40 2 Screw 64700.004 80 1 Inspection Cover 52135.024
41 1 Pump Cover Gasket 41640.021 81 1 Gasket 41640.021
42 1 Cold Start Unit 32556.018 82 1 Pin 58445.001
43 1 Pump Exhaust Valve 79701.040 83 1 Cover 32374.008
44 2 Idle Mixture Screw Oring 41565.002 84 1 Pump Cam 45082.005
45 1 Throttle Lever 45048.007 85 1 Throttle Shaft 10005.438
86 1 Washer 55555.010

* Please see Calibrated Parts Listing

Weber 45 DCOE Initial Settings for MGB

45 DCOE Initial Settings
Main Venturi 36 ? Auxillary Venturi 5.0 mm
Main Jet 1.85 mm Air Corrector Jet 1.60 mm
Emulsion Tuber F16 Idle Jet 0.60/F8
Needle Valve 2.25 mm (spring loaded) Pump Jet 0.60
Pump Exhaust Valve 40 ? Float/Cover Gasket Level 5 mm *
Chokes 40.0 mm
* When the level between the float and cover gasket is measured, it is important that the float is allowed to hang vertically. A false reading will be obtained if the lid is held horizontally.
