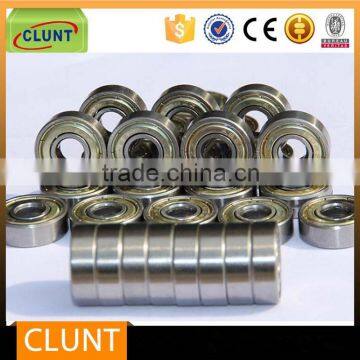

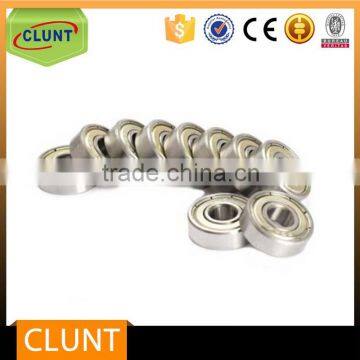

bike bearing 608 ZZ 608 RS/2RS ball bearings sizes 8*22*7
What is the specifications of Deep groove ball bearings?
Deep groove ball bearings are the most typical rolling bearings with the characteristics of simply designed structures,convenience in operation and extensive application.They are designed as non-separable bearings.The raceways in both of the rings are in arc groove form which can carry radial load and double directions axial load. They are of features of low friction factor, and high limit rotational speed and they can be applied in the situations where high rotational speed and low noise and low vibration are required. Applications of these bearings can be found in automobiles, machine tools, motors, instruments, construction machinery, railway vehicle, agricultural machinery and other special machinery.
| Brand | CLUNT | ||||
| Place of Origin | Shandong, China | ||||
| Model | bearing 608 | ||||
| Principal dimensions | d | 8mm | |||
| D | 22mm | ||||
| Radial Play (Clearance): | C2, C0, C3, C4, C5 | ||||
| Designation | skateboard bearing 608 | ||||
| Tolerance | P0, P6,P5,P4,P2 | ||||
| Material | Bearing steel, Stainless steel, ceramic | ||||
| Delivery time | 3-7 days after payment | ||||
| Transport term | TNT,DHL,SF,UPS, Air or by sea | ||||
| Vibration | Z1V1, Z2V2, Z3V3 | ||||
| basic rated dynamic load | 5.9 KN | ||||
| basic rated static load | 7.8 KN | ||||
| speed | 24000 r/min | ||||
| limit speed | 32000 r/min | ||||
| Type | Deep groove ball bearing | ||||
| Service | OEM/ODM/CUSTOMIZED | ||||
| Bearing features | High precision, specially for skateboard, low noise, long life, low vibration |
||||
6000 series deep groove ball bearings
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
| 6008 | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
6200 Series Miniature Deep Groove Ball Bearing
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.680 | 32000 | 40000 | 0.0050 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.0080 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.400 | 26000 | 34000 | 0.0130 |
| 628 | 8 | 24 | 8 | 0.3 | 4.00 | 1.590 | 24000 | 32000 | 0.0170 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.960 | 22000 | 30000 | 0.0190 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.10 | 2.390 | 19000 | 26000 | 0.0300 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.10 | 2.750 | 18000 | 24000 | 0.0360 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.600 | 17000 | 22000 | 0.0460 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.60 | 4.600 | 16000 | 20000 | 0.0650 |
| 6204 | 20 | 47 | 14 | 1.0 | 12.80 | 6.650 | 14000 | 18000 | 0.1070 |
| 6205 | 25 | 52 | 15 | 1.0 | 14.00 | 7.850 | 12000 | 16000 | 0.1250 |
| 6206 | 30 | 62 | 16 | 1.0 | 19.50 | 11.300 | 10000 | 13000 | 0.2010 |
6300 Series Miniature Deep Groove Ball Bearing
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 6300 | 10 |
35 | 11 | 0.6 | 8.2 |
3.5 |
18000 |
24000 |
0.053 |
| 6301 | 12 | 37 | 12 | 1.0 | 9.7 | 4.2 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1.0 | 11.4 | 5.45 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1.0 | 13.5 | 6.55 | 15000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
6800 Series Miniature Deep Groove Ball Bearing
| N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 685 | 5 |
11 | 3 | 0.15 | 0.715 |
0.282 |
35000 |
45000 |
0.0011 |
| 686 | 6 | 13 | 3.5 | 0.15 | 1.08 | 0.44 | 33000 | 42000 | 0.0019 |
| 687 | 7 | 14 | 3.5 | 0.15 | 1.17 | 0.505 | 31000 | 40000 | 0.0021 |
| 688 | 8 | 16 | 4 | 0.2 | 1.61 | 0.715 | 29000 | 38000 | 0.0031 |
| 689 | 9 | 17 | 4 | 0.2 | 1.72 | 0.82 | 28000 | 36000 | 0.0032 |
| 6800 | 10 | 19 | 5 | 0.3 | 1.83 | 0.925 | 26000 | 34000 | 0.005 |
| 6801 | 12 | 21 | 5 | 0.3 | 1.92 | 1.04 | 22000 | 30000 | 0.006 |
| 6802 | 15 | 24 | 5 | 0.3 | 2.08 | 1.26 | 20000 | 28000 | 0.007 |
| 6803 | 17 | 26 | 5 | 0.3 | 2.23 | 1.46 | 19000 | 26000 | 0.008 |
| 6804 | 20 | 32 | 7 | 0.3 | 4 | 2.47 | 17000 | 22000 | 0.019 |
| 6805 | 25 | 37 | 7 | 0.3 | 4.3 | 2.95 | 15000 | 19000 | 0.022 |
| 6806 | 30 | 42 | 7 | 0.3 | 4.7 | 3.65 | 13000 | 17000 | 0.026 |
| 6807 | 35 | 47 | 7 | 0.3 | 4.9 | 4.05 | 11000 | 15000 | 0.029 |
6900 Series Deep Groove Ball Bearing
| N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 693 | 3 |
8 | 3 | 0.15 | 0.56 |
0.18 |
44000 |
52000 |
0.0006 |
| 694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 38000 | 47000 | 0.0018 |
| 695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 34000 | 43000 | 0.0024 |
| 696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 32000 | 40000 | 0.0038 |
| 697 | 7 | 17 | 5 | 0.3 | 1.61 | 0.715 | 30000 | 38000 | 0.0052 |
| 698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 28000 | 36000 | 0.0073 |
| 690 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 27000 | 34000 | 0.0082 |
| 6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 25000 | 32000 | 0.009 |
| 6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 20000 | 28000 | 0.011 |
| 6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 19000 | 26000 | 0.016 |
| 6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 18000 | 24000 | 0.018 |
| 6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
| 6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 14000 | 18000 | 0.042 |
| 6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 12000 | 16000 | 0.048 |
| 6907 | 35 | 55 | 10 | 0.3 | 9.55 | 6.85 | 10000 | 14000 | 0.074 |
Great bearings must be checked by the following process:length measuring instrument,
bearing vibration measurer,angle neasuring instrument ,profile measurement,roughness
measurement,metallographic examination,roundness measurement,and bote bearing.
Product Uses
Applications of bearings can be found in automobiles, machine tools, motors,instruments, construction machinery, railway vehicle, agricultural machinery ,windmill and other special machinery.
We work hard to meet all of our customer's demands and we are committing
to provide you the better service and shopping experience with us.
Our goal is to provide our customers with great quality and service.
There aren't the best,only better!
Service |
OEM service |
Deliver time |
Normally ready goods in stock |
Package |
Standard exported package or according to our costomers' requirement |
Port |
Shanghai, Qingdao, Guangzhou |
Payment terms |
A:TT,West Union |
B:Paypal (5% commission for your account) |
Q;Why do we choose your company?
A: Our company has been a professional bearing manfacture for 1o year. We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price.
Q;What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q;What is your payment term?
A: Our payment term include T/T, Western Union, Paypal etc.
Q;Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first
Q:What is your MOQ?
A: For common bearing model number, our MOQ is 1pc.
If you have any questions,welcome to contact Amy yu
|
|
CLUNT BEARING As a bearing manufactury, we bear quality! |
|
Name |
Amy yu |
|
Adress |
210 room,international trade building,Cheng Yang,Qingdao,China |
|
|
||
Mob |
+86-18863969965 |
|
Skype |
Cluntbearing05 |
|
