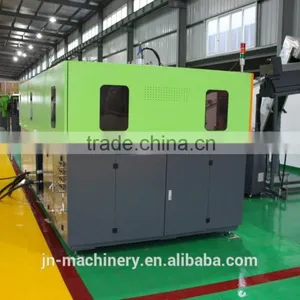

Help CenterJN-5L-2C Full Automatic Edible Oil Blow Molding Machine
Related Products
-
JN-4000 Small Plastic Blow Molding MachineUS$ 39000.00 - 39000.00MOQ: 1 Set -
JN-4000 Plastic Blow Molding MachineUS$ 39000.00 - 39000.00MOQ: 1 Set
-
Extrusion Blow Molding Machine With 120LUS$ 30,000 - 50,000MOQ: 1 Set
-
JN-4000 Water Bottle Blow Molding MachineUS$ 39000.00 - 39000.00MOQ: 1 Set
-
JN-2000 PET Bottle Blow Molding MachineUS$ 23000.00 - 23000.00MOQ: 1 Set
Product Description |
| Servo driver moving system |
| Certification:ISO and CE |
Full automatic |
|

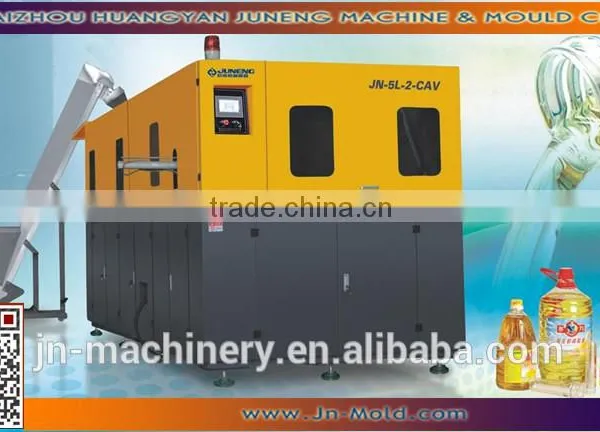

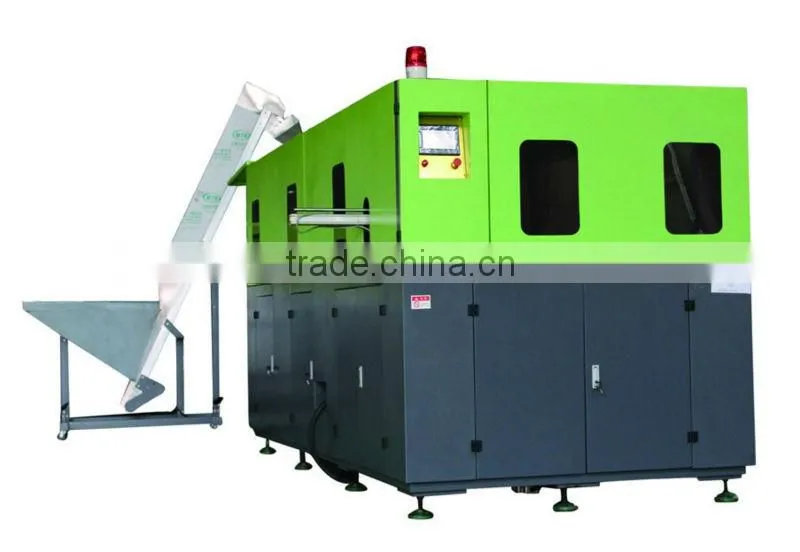

SPECIFICATIONS FOR JN-5L-2C
| ||||
| clamping system | Number of cavity cavities | 2 | calmpingunit kg | 48000 |
| mold stroke mm | 200 | stretch stroke mm | 360 | |
| bottem stroke mm | 50 | cavity pitch mm | 200 | |
| heating pitch mm |
75 | number of holder pcs | 66 | |
| container | max. container volume itr | 5 | max.neck diameter mm | 45 |
| max. preform height mm | 140 | max. container diameter mm | 180 | |
| max. container height mm | 360 | |||
| theoreticaloutput b.p.h | 1200 | |||
| electrical system | heating oven units | 3*2 | number of clamp pcs | 36 |
| heating power kw | 36 | installed power kw | 40 | |
| voltage voltage | 220v/380v/3phase | |||
| Aie system | operating pressure kg/cm² | 7 | power kw | 44 |
| blowing pressure mpa | 3.5 | high pressure air l/min | 5600 | |
| chiller system | temperature ℃ | 10-15 | pressure mpa | 0.3-0.5 |
| flow rate l/min | 90 | heating power hp | 5 | |
| machine | machine dimension (L*W*H) (m) | 3.8*2.2*2.2 | machine weight kg | 5000 |
| Production process |

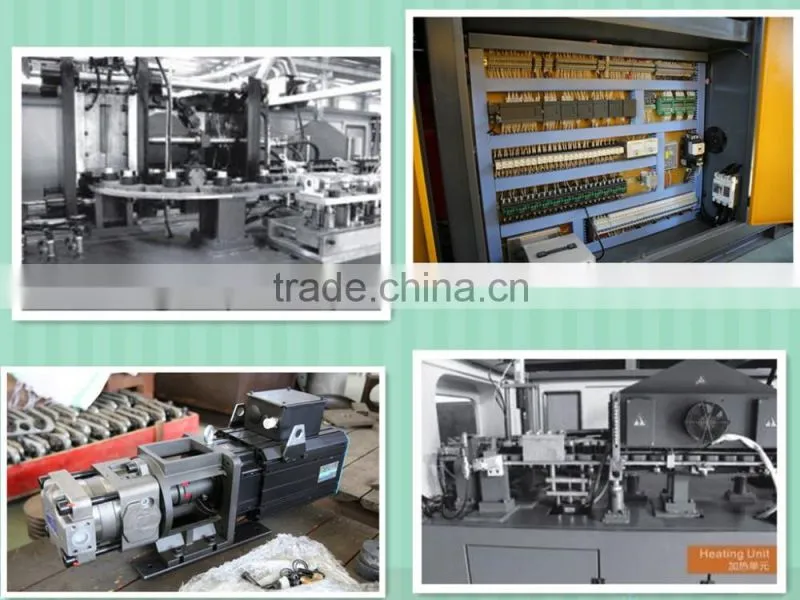

| Product details |
On the basis of our rich experience in stretch field , we all adopt high quality accessories,and in accordance with the requirement of customers ,we can supply machines with the standard configuration, the medium configuration and high configuration.
Characteristic
- Use screw bar of servo driver moving syatem
- Automatic feeding heating and blowing with air recycle.
- Patented preform feeding system for easy and safe.
- Heating system for each lamp adjustment and constant votage control system
- Touch screen human-machine interface for easy operation.
- Modular component design for easy maintance.
- Compact design for effective usage of fllor space.
- Intelligent flow control with high pressure valve
Application:

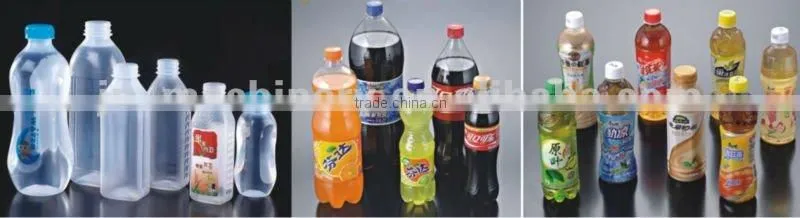

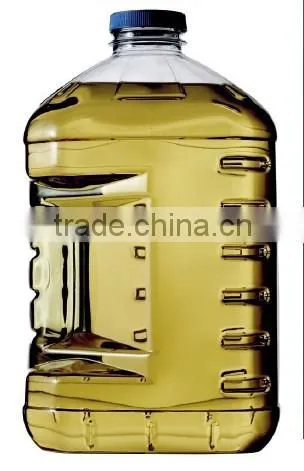

Suitable for PET ,pp bottle with any shapes for oil , CSD ( Carbonic Soft Drink), Beverage ,Mineral Water, Pesticide, Cosmetic, Jar etc containers.
Capacity:
Bottles from 50mililiter to 5 liter
Material:

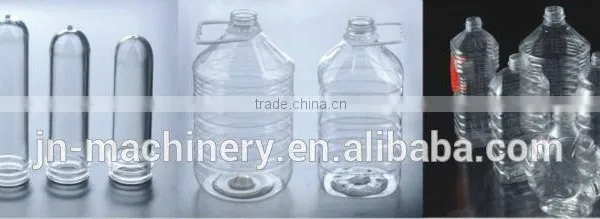

Preform
Products Features:
- Bottles produced never leakage
- Save cost of production
- High productivity automatically
TAIZHOU HUANGYAN JUNENG MACHINE MOULD CO.,LTD. located in Huanyan Zhejiang----the Town of Mold. We have more than 20 years' experience in manufacturing the productions of HDPE Extrusion Blow Molding machines, PET stretch blow molding machine and assistant bottle cap moulds and have earned a good reputation with our customers.
| Our certification |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing Details :
Inside : film and bubble wrap
Outside : standard wooden case
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery Details : 30-50 days after payment.
| Q1: Are you a factory or trading company? |
| A:We are a factory. |
Q2:Is it OK to print my logo on led light product? |
| A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. |
| Q3:Do you offer guarantee for the products? |
| A: Yes, we offer 1 years warranty to our products. |
| Q4:How to proceed an order for machine? |
| A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. |
| 5Q: What is your terms of payment ? |
| A:30% T/T in advance ,balance before shippment. |
| 6Q: Where is your factory located? |
| A:Juneng Machine Mould Co.,Ltd. located in Huangyan,Zhejiang ---The Town of Mould.We are warmly welcome you to visit us. |
Dear Friend, thanks for visiting our website, If you have another question, pls feel free to contact us as below:
