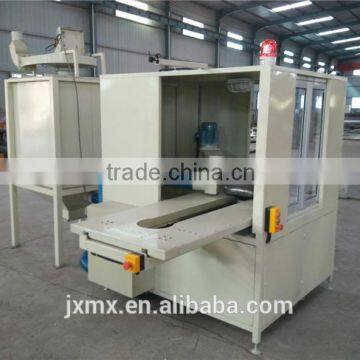

TV Set Automatic CRT Cutting Machine

                              TV set Automatic CRT Cutting Machine

Mainly processed Size: 14 "to 33" TV waste, waste computer. the processing time is about 30 seconds /pc.

Features:

• Quickly cut CRT into funnel and panel, capacity up to 80 units per hour
• Multiple functions including removing steel belt, funnel and panel separting and glass operating
• Easy to operate, low malfunction rate, reduced maintenaince cost
• Environmental protective
• automatic, safe and reliable.

The biggest size of CRT monitor that can be cut is 14- 33 inch.

After removing steel belt/explosion-proof belt, operator places the CRT on the cutting table making the CRT center just

Facing the vacuum adsorption device, then start vaccum adsorption device to fasten the CRT, at the same time infrare

Is automatically open shooting to the CRT as a reference line for cutting, after that the operator will press height adjust

Button to slightly move up/down the CRT according to the infrared reference line. After all these done, start cutting

Process by press a button, a cutting wheel cuts the CRT as per the infrared line, 25 secondes later, funnel and panel are separated.
