OBT- 6350 Public Address Amplifier/One Channel PA Power Amplifier/350W Power Amplifier :

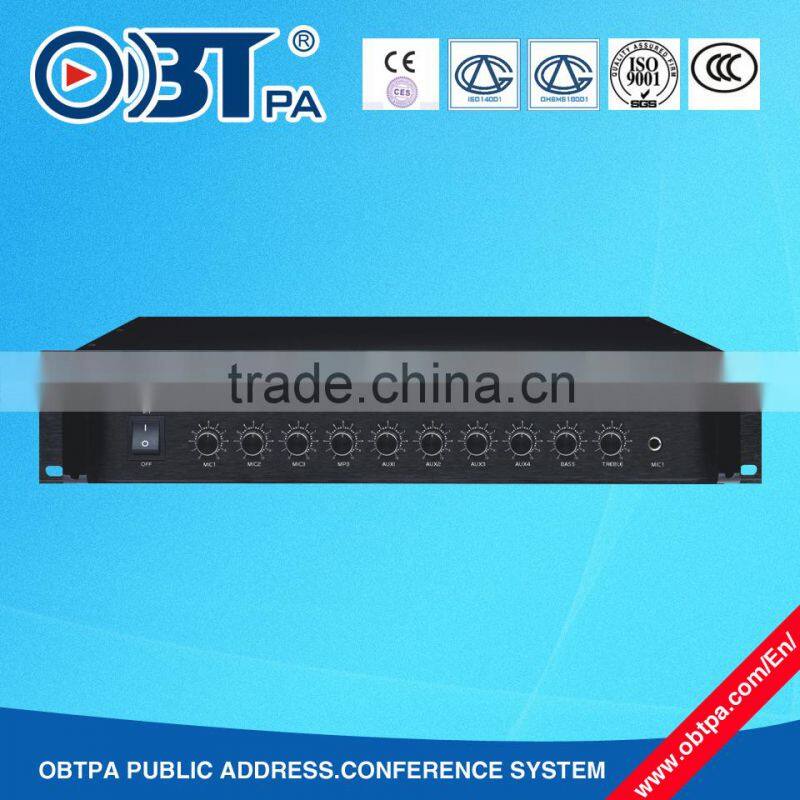

Product picture
Application:
Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,
Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.
Features:
1.5U standard 19-inchindustrial chassis (only 60W) and 2U standard 19-inch industrial chassis (only 150W, 250W, 350W, 450W, 550W, 650W) design;
3 channels of mics, 2 channels of audio inputs, an auxiliary audio output;
Built-in MP3 player, with USB and SD interface, there are three commonly used function keys: PRE / / NEXT / PLAY / STOP;
2 channels of Mic Line Inputs (sensitivity of MIC2/MIC3 channel line input is 775mv);
Mic 1 has the highest priority, the other channels have second priorities;
Mic 1-3, Aux 1-2 have volume control knob and treble, bass tonecontrol knob;
Technical Parameters:
Model |
OBT-6060B |
OBT-6090 |
OBT-6150 |
OBT-6250 |
OBT-6350 |
OBT-6450 |
OBT-6550 |
OBT-6650 |
||
Rated Power Output |
60W |
90W |
150W |
250W |
350W |
450W |
550W |
650W |
||
Speaker Outputs |
70V, 100V & 4~16Ω |
|||||||||
|
Input Sensitivity & Impedance |
MIC 2, 3 Line Input: 775mV/10KΩ, Unbalanced RCA Screw Input |
|||||||||
AUX 1,2,3,4: 350mV/10KΩ, Unbalanced RCA Screw Input | ||||||||||
|
Output Sensitivity & Impedance |
MI× OUT: 1000mV/470Ω, Unbalanced RCA Screw Output |
|||||||||
Overloadsourceelectromotive force |
MIC 1, 2, 3: >12dB |
|||||||||
MIC1,2, 3 Line Input: >12dB, Unbalanced RCA Screw Input | ||||||||||
AUX 1,2,3,4: >20dB, Unbalanced RCA Screw Input | ||||||||||
MP3: >20dB, Unbalanced Input | ||||||||||
Tone |
Bass:±10dB at 100Hz |
|||||||||
Treble:±10dB at 10KHz | ||||||||||
Frequency Response |
50Hz~16KHz(+1dB, -3dB) |
|||||||||
S/N Ratio |
MIC 1, 2, 3: 66Db; AUX 1,2,3,4: 80dB |
|||||||||
THD |
1KHz 0.5%, 1/3 Output Power Consumption |
|||||||||
Muting Function |
MIC 1 overrides other input signals |
|||||||||
0-30 dB adjustable | ||||||||||
Crosstalk |
≤50dB |
|||||||||
Cooling |
Forced air from front to rear, start built-in fan when radiator temperature reaches 45 degrees |
|||||||||
Protection |
Over heat, over load & short circuit |
|||||||||
Power Supply |
AC220V/50Hz |
|||||||||
Power Consumption |
100W |
150W |
260W |
450W |
700W |
950W |
1200W |
1600W |
||
Weight |
6Kg |
11.48Kg |
11.78Kg |
13.3Kg |
16.7Kg |
17.8Kg |
19.45Kg |
20.6Kg |
||
Dimensions |
525×525×170mm |
|||||||||
Material |
Black aluminum panel, SPCC cold rolled chassis |
|||||||||
Lead time:
Sample: In stock
Mass production: 5 working days
Company Pictures 1 for office:
Company Pictures 2 for workshop:
Certification 1 for License and Pantents:
Certification 2 for Products:
Real Projects Connection Diagram:
