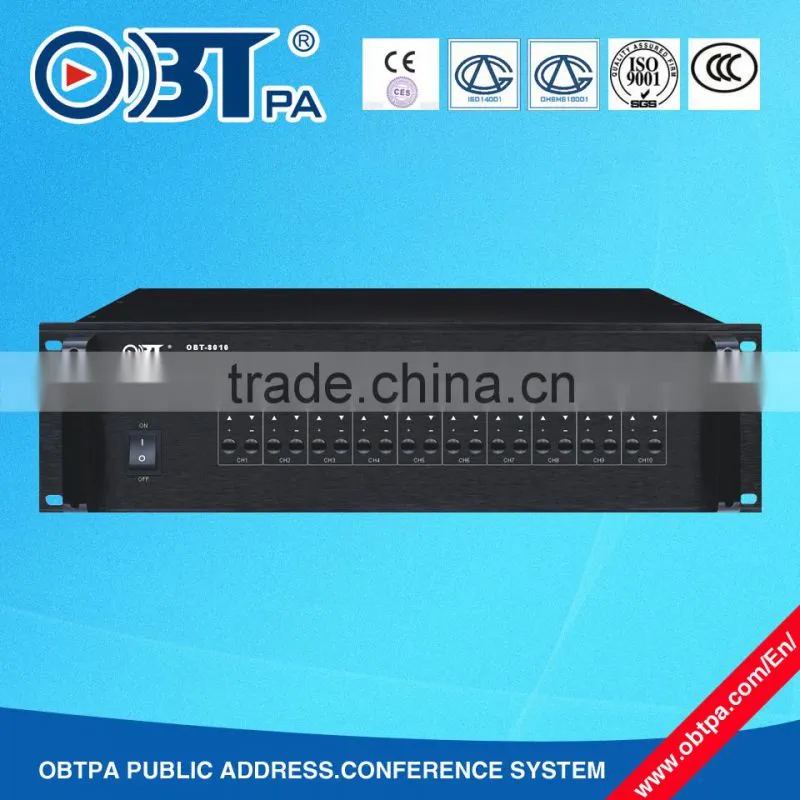

OBT-8010 PA system volume controlled distributor/10 zones volume controlled
Application:
Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,
Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.
Features:
1.Standard Rack design (3U), humanized design, sophisticated technology, filling the high-grade temperament;
2.A input background music signal, B input alarm / emergency signal;
3.Built-in forcibly cut function, can forciblyopen the volume controller in an emergency;
4.10 partitions amplifier output signal, each partition’s maximum output power is 1000W;
5.Volume can be adjusted independently for each partition size (8 digital adjustment);
6.Convenient for remote partition volume control;
7.Alarm forcibly cut function, when 10 partitions control communication interface receives a trigger signal at any alarm, B road will open, 10 outputs an emergency signal;
8.2 channels of interface which outputs circuit signal, output emergency control signal (0V).
Technical parameters:
Model |
OBT-8010 |
Input |
100V |
Output |
100V |
Frequency Response |
20Hz~20KHz |
Relay |
DC 24V |
Power Consumption |
20W |
Standby Power Consumption |
15W |
10 Upper Partition Control Communication Interface |
1 Group (25p) |
10 Down Partition Control Communication Interface |
1 Group (25p) |
Circuit Signal Output Interface |
2 Groups 6.35 |
Weight |
20.5Kg |
Dimensions |
545×525×210mm |
Lead time:
Sample: In stock
Mass production: 5 working days
Company Pictures 1 for office:
Company Pictures 2 for workshop:
Certification 1 for License and Pantents:
Certification 2 for Products:
Real Projects Connection Diagram:
How to start to make business with us?
Service:
Good Service:
1. Professional sales reply you enquiry in 24Hrs
2. Feedback of complaint in 24Hrs
3. OEM/ODM are welcomed
4. 2 years Warranty
Warranty:
1. All products have been strictly Quality Checked before packing.
2. All products have been well packed before shipping.
3. All products with 2 years warranty.
After Sales Service:
1. We are always online to solve all your request.
2. Any faulty product, we can send replacement to you freely
3. To ensure your receive the order tax free upon import, we are willing to declare lower value.
