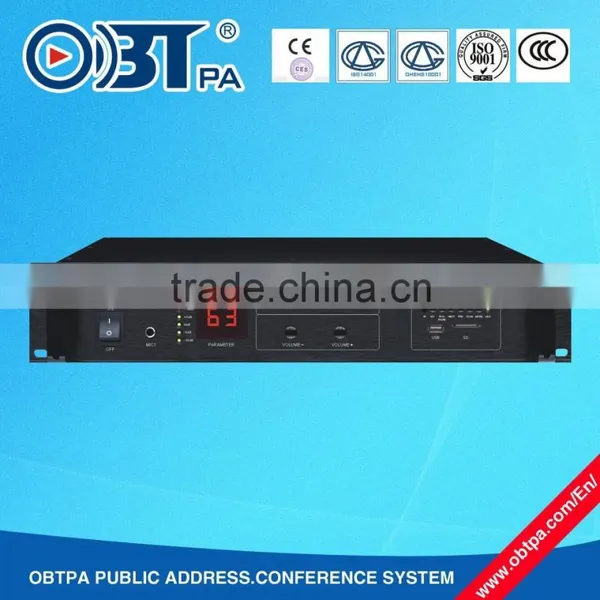

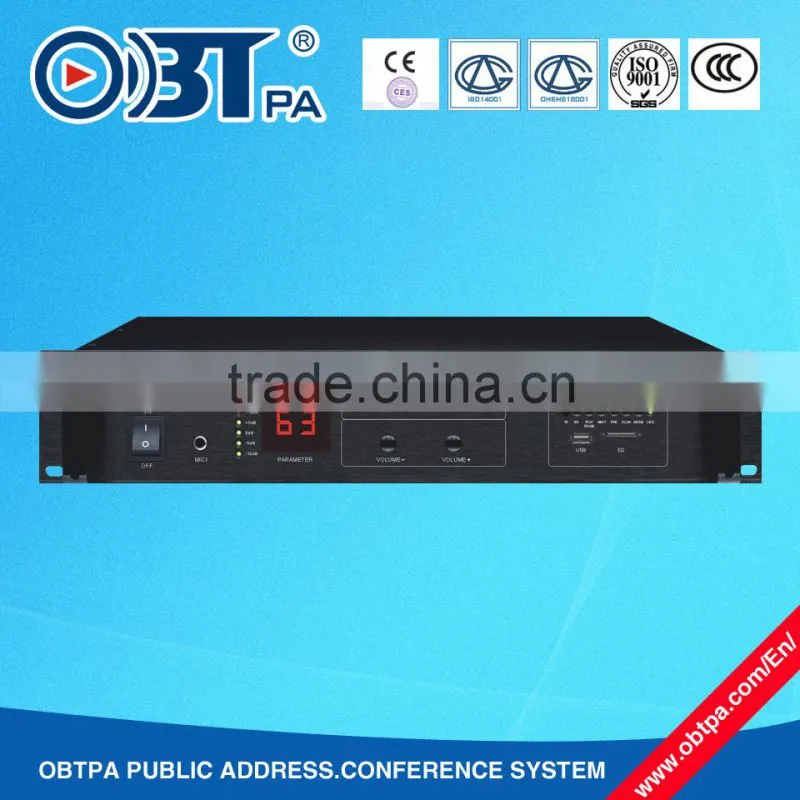

OBT-D6255 5 channel multi channel power amplifier, 250W multiplex amplifier with USB FM radio
Application:
Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,
Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.
Features:
2U standard 19-inch industrial chassis, ergonomic design, sophisticated technology, filling with the high-grade temperament;
Touchable button operation, digital display the volume and radio frequency;
1 channel of microphone input, 1 USB and SD card MP3 inputs, 2 microphone, two lines of audio inputs;
Forcibly cutting priority function, Mic 1 has the highest priority, the other channels have second priorities;
2 channels of Mic Line Inputs (sensitivity of MIC2/MIC3 channel line input is 775mv);
Support radio, MP3 data formats and audio line play;
amplifier output comes with five partitions, you can select the partition state
The device has a good short circuit, overheat, overload automatic detect and protect function, the indicator will light to warm, warningbuzzer will ring to alarm;
2 kinds of power output modes: constant voltage output 100V, 70V and constant resistance output 4~16Ω.,5 partition output modes: constant voltage output 100V
Technical parameters:
Model |
OBT-D6095 |
OBT-D6155 |
OBT-D6255 |
OBT-D6355 |
OBT-D6455 |
OBT-D6555 |
OBT-D6655 |
|||
Rated Power Output |
90W |
150W |
250W |
350W |
450W |
550W |
650W |
|||
Speaker Outputs |
70V, 100V & 4~16Ω |
|||||||||
Input Sensitivity & Impedance |
MIC 1, 2, 3: 5mV/600Ω |
|||||||||
MIC 2, 3 Line Input: 775mV/10KΩ, Unbalanced RCA Screw Input | ||||||||||
AUX 1, 2,3,4: 350mV/10KΩ, Unbalanced RCA Screw Input | ||||||||||
Output Sensitivity & Impedance |
MIX OUT: 1000mV/470Ω, Unbalanced RCA Screw Output |
|||||||||
Overload source electromotive force |
MIC 1, 2, 3: >12dB, Unbalanced Screw Input |
|||||||||
MIC 2, 3 Line Input: >12dB, Unbalanced RCA Screw Input | ||||||||||
AUX 1,2,3,4: >20dB, Unbalanced RCA Screw Input | ||||||||||
MP3: >20dB, Unbalanced Input | ||||||||||
EMC: >12dB, Unbalanced DG7.62 Screw Input | ||||||||||
Tone |
Bass:±10dB at 100Hz |
|||||||||
Treble:±10dB at 10KHz | ||||||||||
Frequency Response |
50Hz~16KHz(+1dB, -3dB) |
|||||||||
S/N Ratio |
MIC 1, 2, 3: 66dB; AUX 1, 2: 80dB |
|||||||||
THD |
1KHz 0.5%, 1/3 Output Power Consumption |
|||||||||
Muting Function |
MIC 1 overrides other input signals |
|||||||||
0-30 dB adjustable | ||||||||||
Crosstalk |
≤50dB |
|||||||||
Cooling |
Forced air from front to rear, start built-in fan when radiator temperature reaches 45 degrees |
|||||||||
Protection |
Over heat, over load & short circuit |
|||||||||
Power Supply |
AC220V/50Hz |
|||||||||
Power Consumption |
160W |
260W |
450W |
700W |
950W |
1200W |
1600W |
|||
Weight |
11KG |
11.12Kg |
11.85Kg |
13.73Kg |
17Kg |
17.56Kg |
19.6Kg |
|||
Dimensions |
525×525×170mm |
|||||||||
Material |
Black aluminum panel, SPCC cold rolled chassis |
|||||||||
Lead time:
Sample: In stock
Mass production: 5 working days
Company Pictures 1 for office:
Company Pictures 2 for workshop:
Certification 1 for License and Pantents:
Certification 2 for Products:
Real Projects Connection Diagram:
How to start to make business with us?
Service:
Good Service:
1. Professional sales reply you enquiry in 24Hrs
2. Feedback of complaint in 24Hrs
3. OEM/ODM are welcomed
4. 2 years Warranty
Warranty:
1. All products have been strictly Quality Checked before packing.
2. All products have been well packed before shipping.
3. All products with 2 years warranty.
After Sales Service:
1. We are always online to solve all your request.
2. Any faulty product, we can send replacement to you freely
3. To ensure your receive the order tax free upon import, we are willing to declare lower value.
Shipping:
