Home > Instruments & Meters > Optical Lens & Instrument > Microscope > Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA

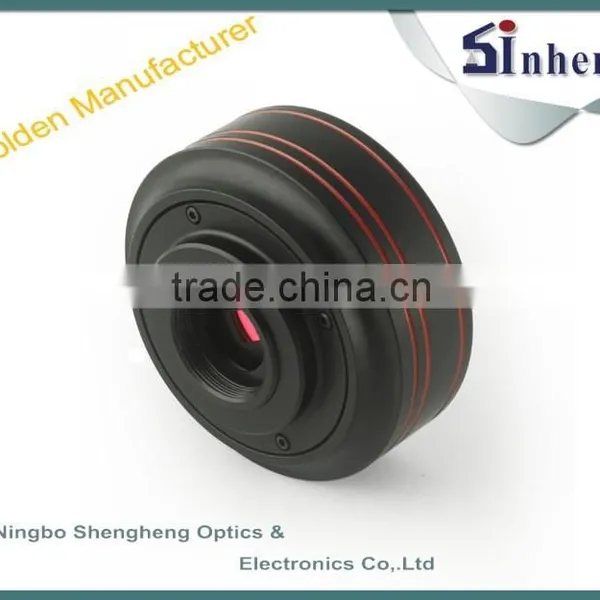

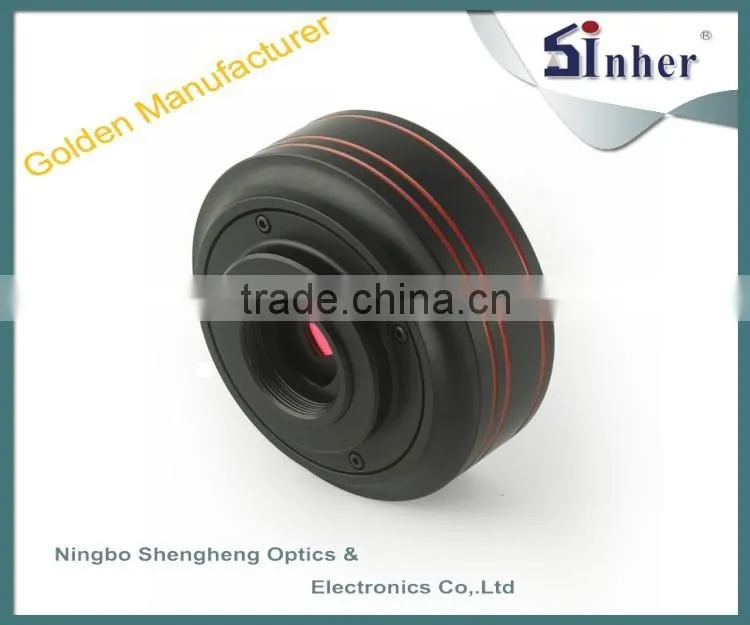

Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA

Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA photo-1
Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA photo-2
Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA photo-3
US$ 40 - 150 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SINHER Digital Microscope Camera
Model Number:
SHD-300 Digital Microscope Camera
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name SINHER Digital Microscope Camera
Model Number SHD-300 Digital Microscope Camera
Theory Video Microscope
Drawtube Trinocular

Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA



Product Description

 Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERASinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERASinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA







Information

Model:

SHD-300



Category:

CMOS industrial camera



Feature

1, High resolution image sensor, good color rendition and definition;
2
, 1/2.0 inch progressive scanning image sensor, 3 megapixel;
3
, USB2.0 digital interface, max 480MPS;
4
, Brightness/contrast/saturation/acutance/gamma etc can be adjustable
5
, Auto white balance, auto exposure;
6
, Drive-free, support Windows2000XP2VistaWin7;
7
, Max resolution 2048*1536






Specification

Image device

1/2.0 inch progressive scanning image sensor, 3 megapixel



Regsolution

Max resolution 2048*1536



Pixel size

3.2μmm x 3.2μm



Frame rate

12fps @ 2048*1536



30 fps @640*480



Shutter

Electronic shutter



SNR

43 dB



Scanning mode

Progressive



Temperature

0°C~50°C



Sensitivity

1.8V/lux-sec@550nm



Spectral response

400nm~1000nm



Data interface

USB2.0 (480 Mbit / sec)



Power

No need for outside power supply



Current

≈200 mA



White balance

Auto/manual



Auto exposure control

Auto exposure



Function

Image display/film/record/measure etc



Apply to

Micrography, common image capture, microspur image etc







Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA
Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERASinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA
Sinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERASinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERASinher SHD-300 Industrial USB DIGITAL MICROSCOPE CAMERA
Packaging & Shipping

The packing have two choice by customer, one type is foam with carton, another is wooden case with carton. Both packing approved export standard requires.





Our Services

We share one year warrantee for our customer. We offer complete parts for after service. we have 20 years for export business service. We offer lower price and qualified product for our customer.
