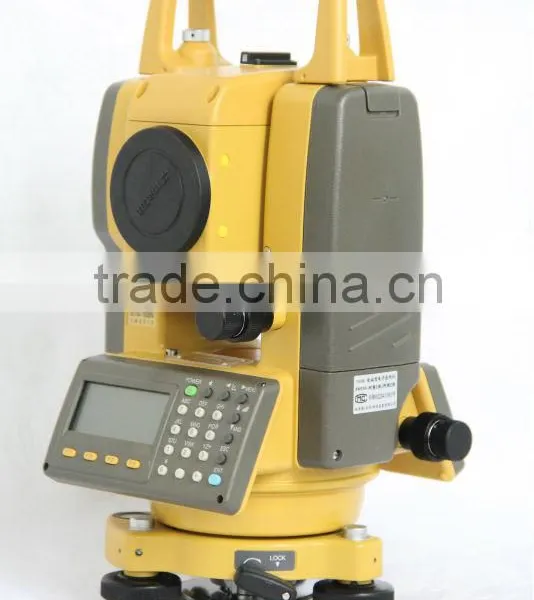

China Special Topocon Total Station GTS-102N Fix 102N Total Station Not Boot Into OS

China Special Topocon Total Station GTS-102N Fix 102N Total Station Not Boot Into OS thumbnail-1
China Special Topocon Total Station GTS-102N Fix 102N Total Station Not Boot Into OS photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Topcon
Model Number:
GTS102N
Contact Supplier Request Quote Chat Now
Beijing Qiyue Xingchen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Topcon
Model Number GTS102N

Specifications

total station GTS-102N
1. 24,000 point data
2. 1 Prism 6500 ft, 2000 meters
3. 3 Prism 8800 ft, 2700 meters

Professional topcon station total GTS-102N Topcon 102N Repair Update Firmware


Product Description



Product Introduce :



24,000 point data 1 Prism 6500 ft, 2000 meters 3 Prism 8800 ft, 2700 meters



Function:

The new Topcon GTS-100N series total station combines the traditional rugged field-ready quality and accuracy with economical, compact design that is perfect for everyday measuring and positioning applications such as topo and construction layout.



Perfect when combined with FC field controller and software



Features:

1.Economical, value priced measuring solution

2.Rugged, durable, water resistant design

3.Two accuracies to choose from 2” & 5”

4.Expanded, Full numeric keypad

5.On board programs & 24,000 point data storage

6.Ideal as a construction stakeout total station

7.Perfect when combined with FC field controller and software





Specifications



Telescope

 Length 150 Millimeters

 Objective Lens Diameter 45mm (EDM:50mm)

 Magnification 30x

 Image Erect

 Field of View 1°30

 Resolve Power 3 "

 Min. Focus Distance 1.3 meters

Measurement Range

 1 Prism 6500 ft, 2000 meters

 3 Prism 8800 ft, 2700 meters

Measuring Accuracy

 Prism Mode ±(2mm + 2ppm x D)m.s.e. fine, N/A

 measurement time 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A

Angle Measurement

 Method Absolute Reading

 Detection 2 horizontal, 1 vertical

 Minimum reading N/A, 1/5 mgon

Tilt Correction

 Type Single Axis

 Method Liquid surface reflective profile sensor reading type

 Compensating Range ±3'

 Correction Unit 1 arc sec, N/A

Computer Unit

 Display 2 screen, dot matrix graphic LCD display

Power

 approximate battery life 9 including distance measurement, 40 Angle measurement only

NOTE: WE ONLY PROVIDE TOPCON TOTAL STATION REPAIR SERVICE OR MAINTANCE, UPDATE SOFTWRE, UPDATE FIRMWARE, FIX THE TOTAL STATION WHICH CAN NOT BE POWERED ON, CAN NOT BOOT INTO SYSTEMS, CAN NOT SHOW  ANY NUMBER ON SCREEN, CAN NOT MEASURE THE HORIZONTAL DEGEREE.

SOLVE PROBLEM: REPLACE TRIBRACH, KEYBOARD PANEL WITH CIRCUTE, CLEARING THE ENCODE DISK, REPAIR CCD PARTS. AND SO ON.
