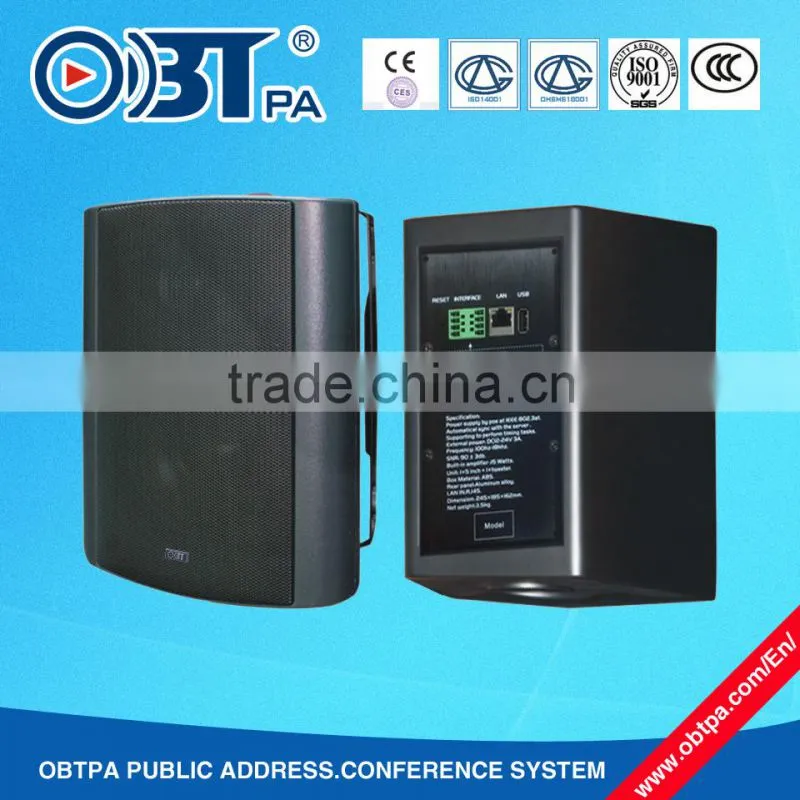

OBT-9806 iIP based public address system,Digital IP Network Public Address System :
Application:
Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,
Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.
Features:
Integrated wall-mounteddesign, exquisite appearance, sophisticated technology, filling with the high-grade temperament;
Equipment uses embeddedcomputer technology and DSP audio processing technology ; uses high-speed industrial-grade chips,100 devices connecting to the serverjust need a second;
Full digital transmission, full support POE (IEEE 802.3af) power supply,only need one network cable connection, construction is simple and low cost;
With DC backup power interface, power demand is more than 10W or for non-POE powered network;
Intelligent adjustment, adaptive power supply, automatic power adjustment digital power amplifier, the performance and the efficiency are always optimizedto maximize ;
Amplification unit with full-band and high sensitivity, with plenty ofpower, high-fidelity CD-quality sound;
Need to be used together with POE switches;
You can connect at any place which have the Ethernet port, support cross-segment and cross-routing.
Easy to operate, without manual setting, connecting automatically to server once there is online of network, Automatically complete the synchronization with the servers
Two kinds of working modes: online and offline, still can perform timing tasks when there is network failure
Bandwidth: 20Hz-20KHz;
Rated Power: Built-in 2X10W amplifier, 10W is to promote local speakers, another 10W is topromote external passive speakers ;
Speaker Unit: 1X5 inch + tweeter;
Material: ABS engineering plasticshell, exquisite workmanship, and anti-shock;
Technical parameters:
Model |
OBT-9806 |
Power Supply |
POE Power Supply Or External Connect to DC+12V |
Standby Power Consumption |
5W |
Power Consumption |
25W |
Network Interface |
RJ45 |
Transmission Speed |
10/100Mbps |
Support Protocol |
TCP/IP,UDP,IGMP(Group Broadcast) |
Audio Format |
MP3/MP2 |
Audio Model |
16digit stereo CD level |
Sample Rate |
8K~48K |
Bit Rate |
8K~512Kbps |
Rated Power Consumption |
8W |
Peak Power Consumption |
10W |
Sensitivity |
92dB |
|
Frequency Response |
100Hz~16KHz+1/-3dB |
S/N Ratio |
≤0.1% |
THD |
90±3dB; |
Weight |
242X182X162mm |
Dimensions |
1.15Kg |
Lead time:
Sample: In stock
Mass production: 5 working days
Company Pictures 1 for office:
Company Pictures 2 for workshop:
Certification 1 for License and Pantents:
Certification 2 for Products:
Real Projects Connection Diagram:
How to start to make business with us?
Service:
Good Service:
1. Professional sales reply you enquiry in 24Hrs
2. Feedback of complaint in 24Hrs
3. OEM/ODM are welcomed
4. 2 years Warranty
Warranty:
1. All products have been strictly Quality Checked before packing.
2. All products have been well packed before shipping.
3. All products with 2 years warranty.
After Sales Service:
1. We are always online to solve all your request.
2. Any faulty product, we can send replacement to you freely
3. To ensure your receive the order tax free upon import, we are willing to declare lower value.
