USB AM to BM cable

Specifications

USB AM to BM cable
1.UL approval.RoHS compliant.
2.Professional product team.
3.Customized manufacturing.

USB AM to BM cable



Features:



 1. Compatible with USB2.0,USB1.1

 2. For connecting computer or Notebook to HD-DVD/Big mobiles memory

 3. Gold - plated copper contacts minimize data loss

 4. Foiled and braided shield complies with fully rated cable specifications

 5. Impedance matches twisted pair construction helps to minimize cross talk, error-free transmission

 6.Compliant with USB 2.0&1.1

 7.Be applicable to I/O USB

 8.Data transfer up to 4.8Gps.



Electrical:
100% open & short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to 65% braid.
Working Temperature: -25oC ~ +85oC



Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min



Item name	mini usb cable
Connector	AM to BM, AM to AF, AM to mini 5p,  AF to mini 5p, AM to micro usb
connector	Gold or Nickel-plated connector
Color	Blue or black color available
Length	1-5M available
Data speed	up to 4.8GBps
Compatibility	backward compatible with USB1.1&2.0
Outer diameter	4.5mm
Lines	standard 4 lines
Conductor	bare copper or tined-copper
Ferrite cores	Optional





After-sale servrice

1. 1 Year factory warranty
2. 100% satisfied warranty and fast delivery
3. 100% factory direct sale, with full technical support! Wholesale, OEM/ODM orders are available.





Pictures:

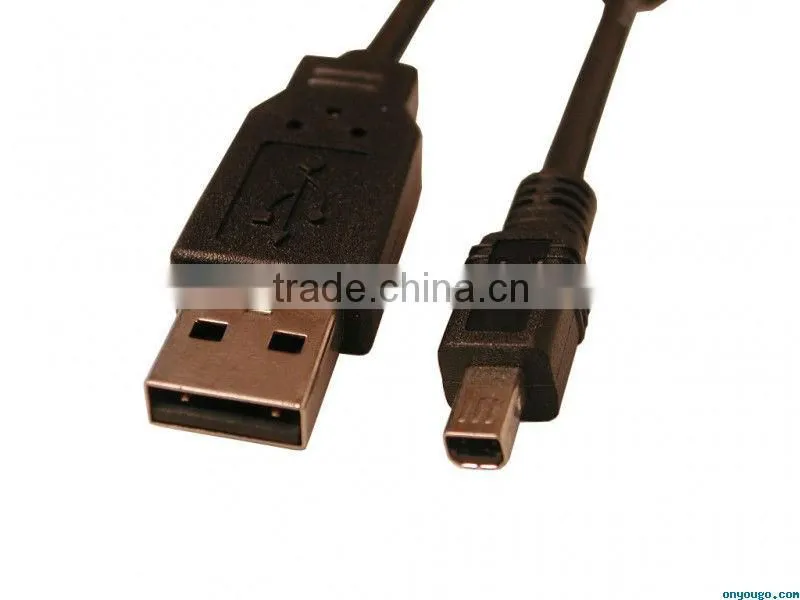

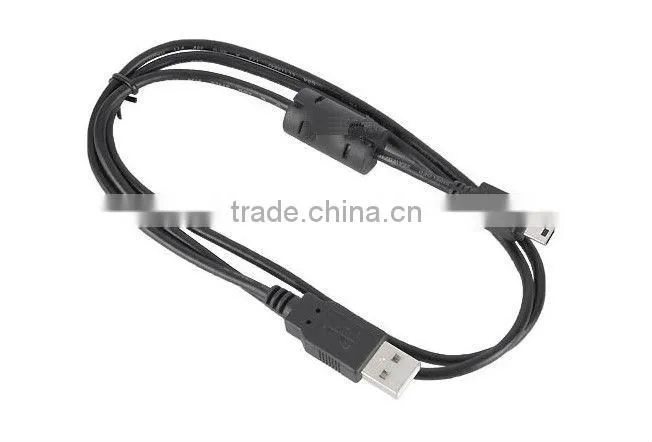

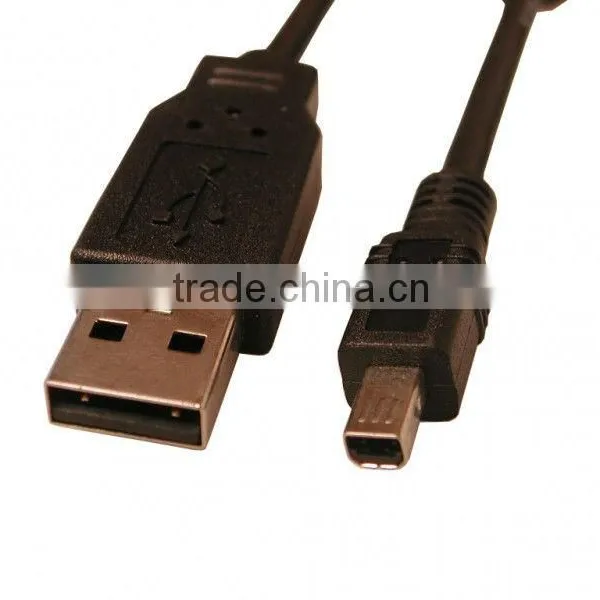

AWM 2725 USB Cable AM to Mini



USB AM to BM cable
