Advanced PC400X600 Capacity 8tons To15tons per Hour Mining Hammer Crusher,hammer Mill

Advanced PC400X600 Capacity 8tons To15tons per Hour Mining Hammer Crusher,hammer Mill photo-1
US$ 2,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hammer Crusher
Application:
crushing stone,sand and ore
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hammer Crusher
Application crushing stone,sand and ore
Motor Type AC Motor
Power(W) 18.5kw
Capacity(t/h) 8-15t/h
Place of Origin Jiangxi, China
Brand Name Mingxin
Model Number PC series
Dimension(L*W*H) 1155mmX1100mmX1255mm
Weight 1.2t
Certification CE&ISO
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas

Advanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer mill

Product Description

Advantages of hammer crusher

1.High production and high crushing ratio.

2Low power consumption, homogeneous particle size.

3.Simple, compact and light mechanical structure.

4.Low investment cost, easy management.

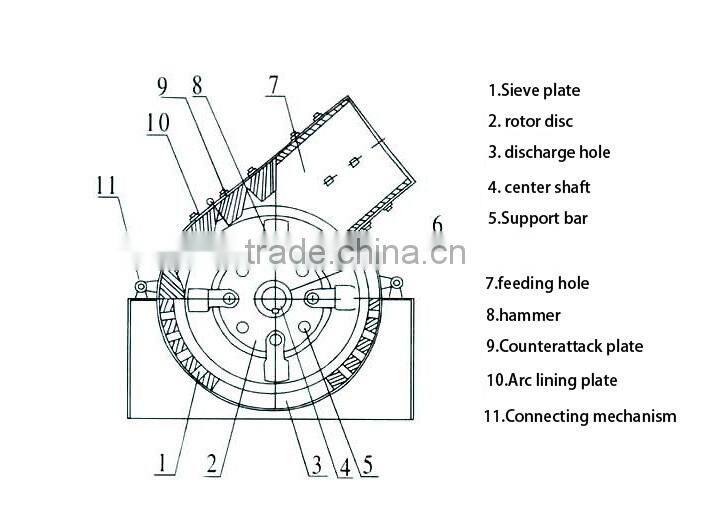

Hammer crusher Description:

hammer mill machine is applicable for both dry and wet crushing.grinder hammer mill machine is widely used for medium or fine crushing for medium hard and brittle materials by departments of mine, cement, coal,building material, metallurgy, chemical industry, road construction,gas chemical industry and thermal power generation, etc. Coal gangue,coke, slag, limestone, phosphate rock, salt, whiting, gypsum stains,alum, brick and tile, etc. can be crushed by this equipment. The compression strength of the materials shall not exceed 100MPa, while the moisture content shall be lower than 15%.



Advanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer mill



Application of hammer crusher

Hammer crusher is mainly suitable for crushing various soft and medium-hard ore, whose compression strength is not higher than 320MPa, such as coal, salt, chalk, gypsum, blocks, limestone, glasses, and phosphate, etc.



This grinder hammer mill machine can be also used for crushing chips and paper with fiber structure and strong elasticity and ductility, or recycling asbestos fiber by crushing wastes of asbestos cement, etc. Gap between the gratings areadjustable to change grain size of the discharge, so as to meet different requirements of the customers.

 Advanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer mill





Technical Parameter

 The technical parameters of Hammer crusher

Advanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer mill



Model

Rotor Diameter (mm)

Roter Length (mm)

Hammer Quantity

Max Feeding (mm)

Discharging (mm)

Capacity (t/h)

Power (kw)

Motor Model

REV (r/min)

Machine Size (mm)

PC300×400

400

300

16

<100

<15

3-8

11



1100

855×795×862

PC400×600

600

400

20

<150

<15

8-15

18.5



1000

1155×1100×1255

PC600×800

800

600

28

<220

<20

15-30

45



900

2360×1500×1580

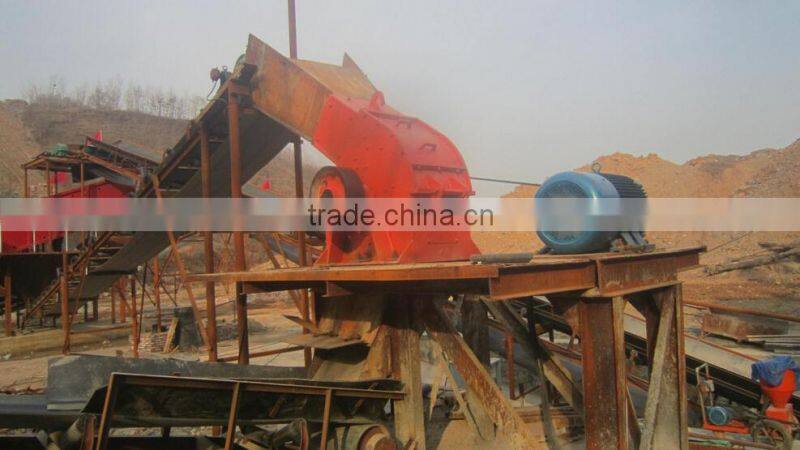

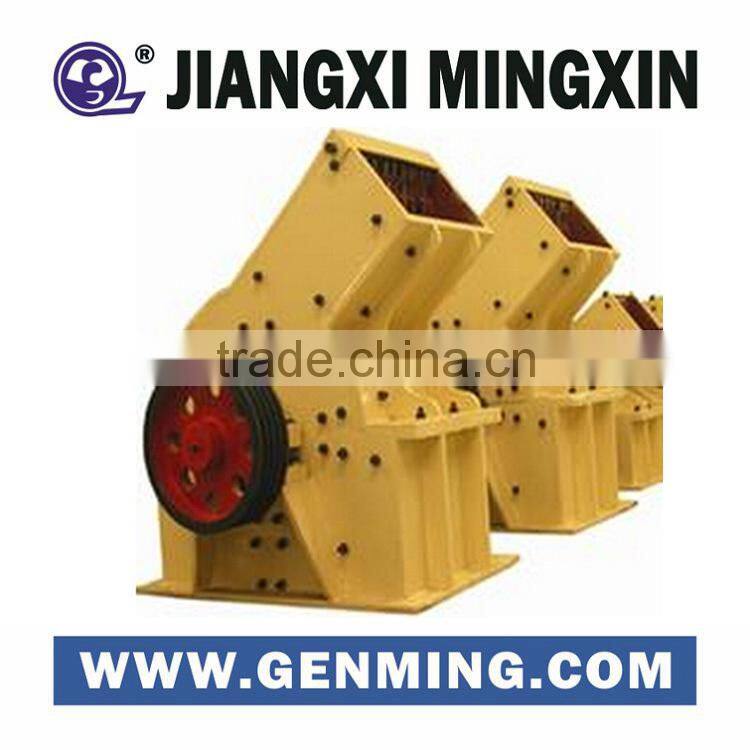

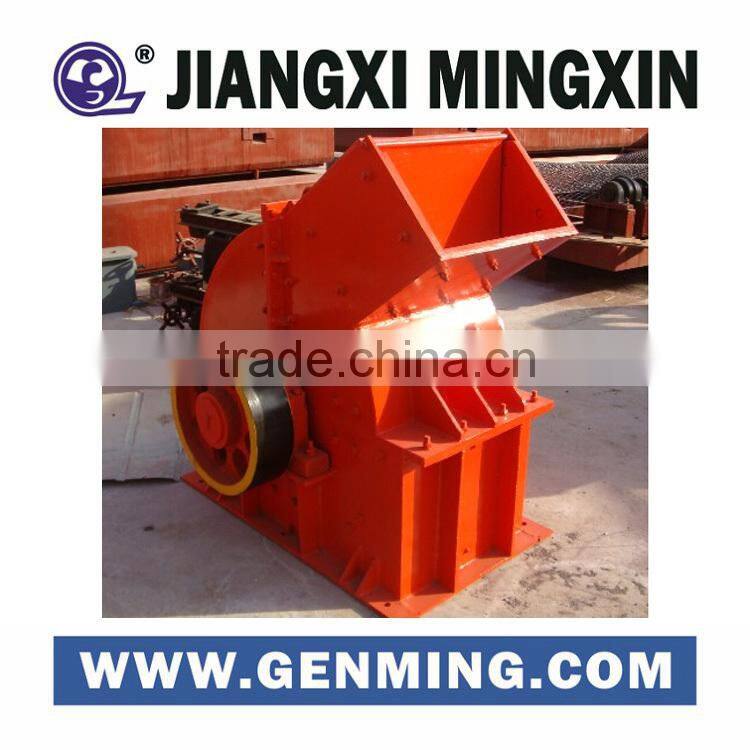

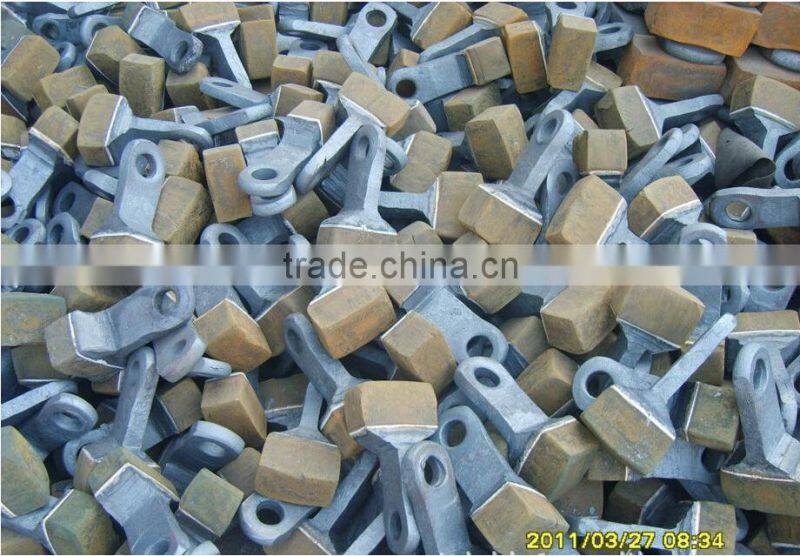

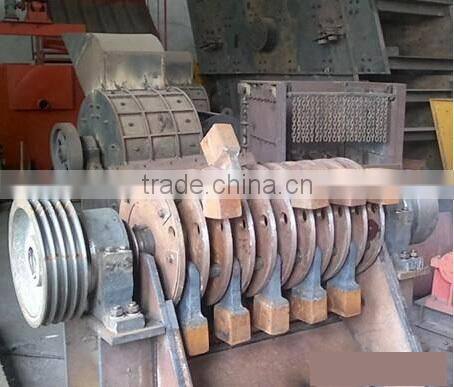

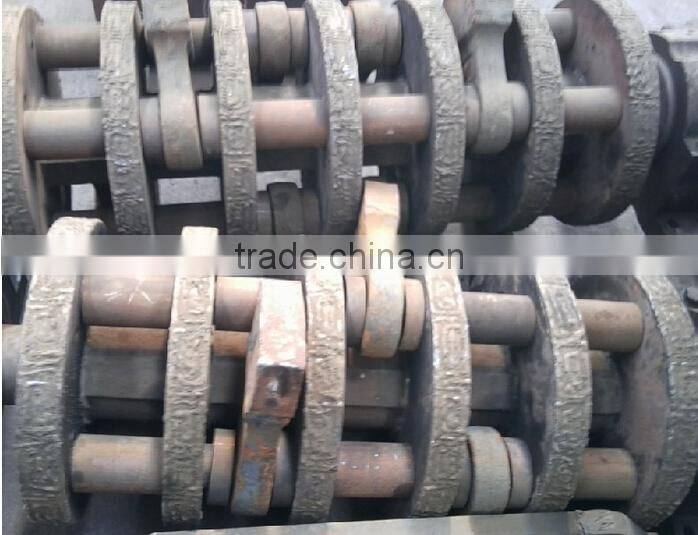

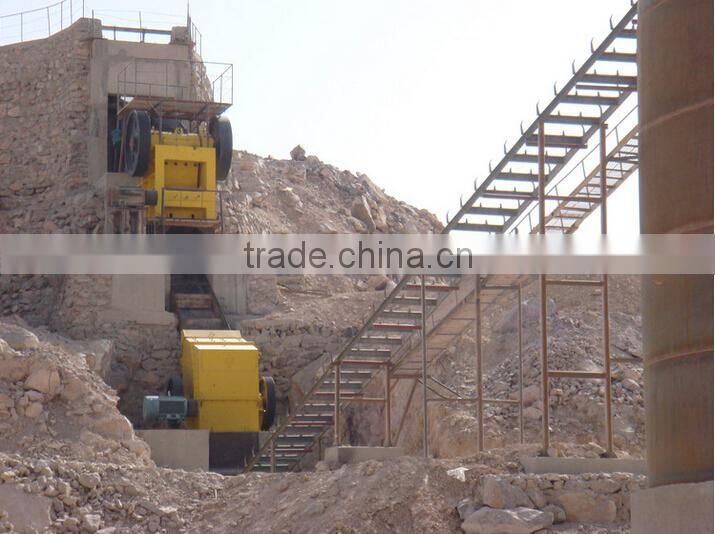

Product Photos

 Advanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer millAdvanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer millAdvanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer millAdvanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer millAdvanced PC400X600 capacity 8tons to15tons per hour mining hammer crusher,hammer mill
