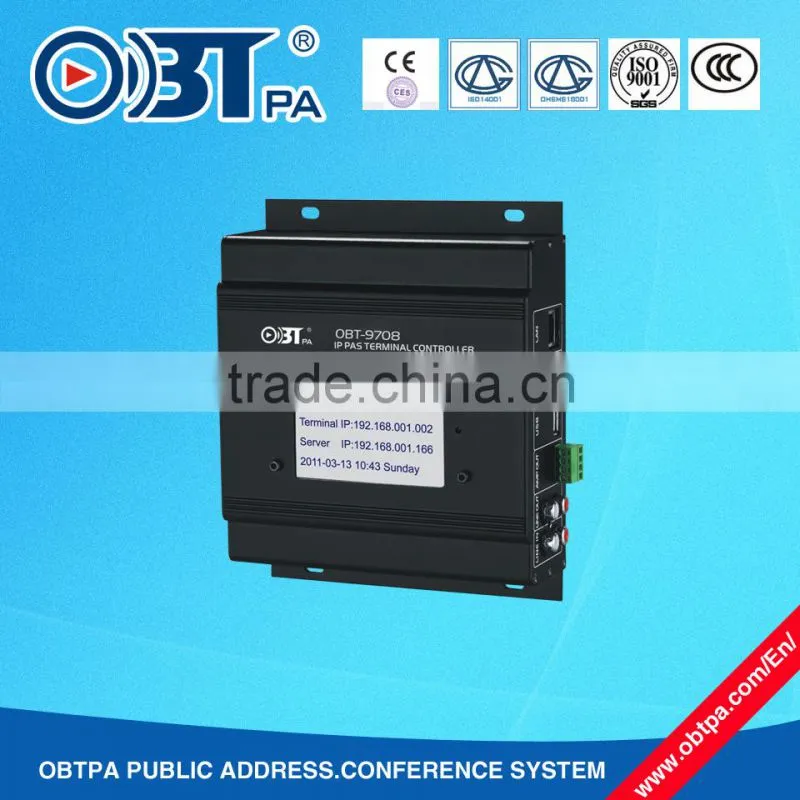

OBT-9708 Remote IP Network Playing Controller,IP main controller for PA system Chinese supplier

OBT-9708 Remote IP Network Playing Controller,IP main controller for PA system Chinese supplier

Application:

Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,

Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.

Features:

Standard wall-mounted design, black brushed aluminum panels, exquisite appearance, sophisticated technology, filling the high-grade temperament;
3.5-inch TFT color screen display, screen-friendly, equipped with infrared remote control, display clearly, simple operation ( fast forward / rewind / pause / [AB] repeat / Volume key operation, volume [+] [-] regulation );
Easy to operate, without manual settings, connect automatically to server once there is network.

Support wired network and WIFI wireless internet access modes;
Supporting two way accesses the network through cable or WiFi.

Supporting four ways for tracks : the server, local memory, U disk and line in.

Automatically complete the synchronization between timing program of terminal

and the server's , if server's programs change, there will be an automatic synchronization between the two parties

Two kinds of working modes: online and offline, still can perform timing tasks

when there is network failure

Supporting incoming call of the unicast, multicast and all broadcast in LAN
The device uses an embedded linux technology and DSP audio processing technology design; using industrial-grade chips;
Built-in demand acquisition module, achieve real-time on-demand programming function;
Built-in 2 × 10W stereo digital fixed resistance power amplifier;
1 channel audio auxiliary output, connect to external expansion amplifier;
1 channel line input, achieve local PA;

Built-in three signal priority function adjustment:
A, the local signal priority: local input signal priority, and the priority level can be preset, online music play as background music;
B, Emergency Broadcast Priority: When Emergency broadcast priority input, the radiosignal will automatically turn off the local input signal and play network emergency broadcast signal;
C, forced local signal priority: In the case ofan emergency, can initiate the forcedlocal signal priority to achieve artificial local emergency broadcast function;
Standby power is less than20W, CCC and CEcertification;

Can connect to the Ethernet wherever there is a Ethernet port, support cross-segment and cross-routing.

 Technical parameters:

Lead time:

Sample: In stock

Mass production: 5 working days

Company Pictures 1 for office:

Company Pictures 2 for workshop:

Certification 1 for License and Pantents:

Certification 2 for Products:

Real Projects Connection Diagram:
