Help CenterYG15 Carbide Mining Bits K034 for Granite Mining
Related Products
Specifications
Carbide Mining Bits K0341, Combination of wear-resistant and impact-resistant
2, Long servie time
3, Free sample

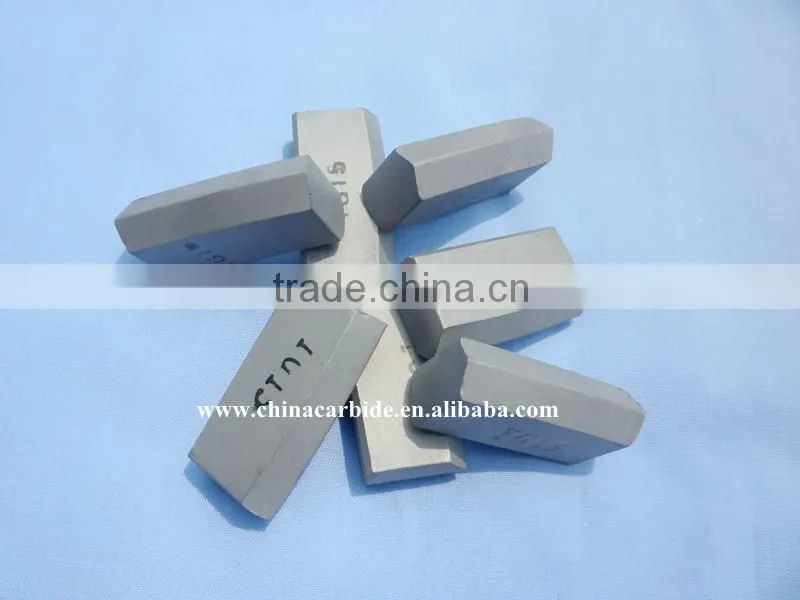

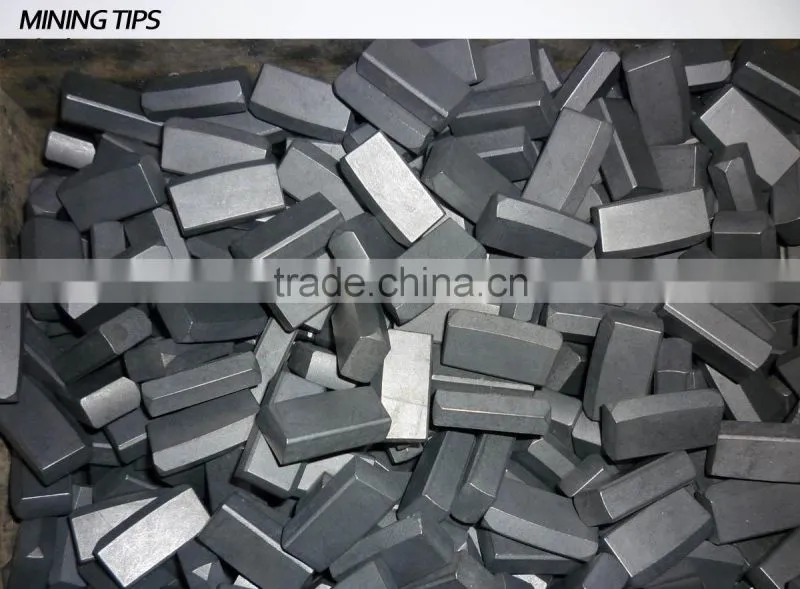

YG15 Carbide Mining Bits, K034,NANCHANG
YG15 Carbide mining tips for granite quarry, K034
Specifications on K034:
Grade: YG15
Size: Length 34mm*Height 18mm*Width10mm
Drawing:
Carbide mining bits are widely usde for granite quarry.
They are soldered on carbide drill bits in practical uses.
HIgh efficiency with wonderful conbination between wear-resistant and impact-resistant.
Our qulified rate let us keep low cost and offer best price for quarry users.
|
Typical Physical Properties |
Performances & Application |
||
Density (g/m3) |
Bending Strength (N/mm2) |
Hardness ≥ |
||
YG4C |
14.9-15.2 |
1700 |
89.5 |
Are coarse grain tungsten carbide alloy, wear resistance and considerable YG3, the use of intensity in the near YG8 For the coal mining industry, setting the system and the pneumatic drill electric drill |
YG6 |
14.6-15.0 |
1550 |
90.0 |
Higher wear resistance, but lower than YG3, YG3X, toughness is higher than YG3, YG3X, can be used more for high speed YG8 For cast iron, non-ferrous metals and their alloys and non-metallic materials when cutting rough frontier car, stopped cutting of semi-refined and refined car car. Can also be used for wire drawing die, geological exploration, coal mining and the limelight with an electric drill |
YG8 |
14.6-14.9 |
1850 |
89.0 |
The use of higher strength, impact and vibration-resistant than YG6 good, but lower resistance to abrasion For cast iron, non-ferrous metals and their alloys intermittent rough cutting, bar and tube drawing touch; also used an electric drill, oil wells and geological exploration of the drill bit, containing coal feeder teeth; also used in machines and tools easy wear parts, nozzles, top, top rod forging and piercing tools .. |
YG8C |
14.6-14.9 |
2100 |
87.5 |
Are coarse grain tungsten carbide alloy, the use of performance and wear resistance with similar YG11C For rotary rock drill bits for medium soft and medium hard rock;and for coal cutting of stone containing formations. |
YG11C |
14.2-14.5 |
2400 |
86.5 |
Are coarse grain tungsten carbide alloy, the use of strength is slightly higher than YG15, wear resistance is superior to YG15 For tipping of bits for heavy rock drills and rotary hammer rock drills cutting hard rocks. |
YG15 |
13.9-14.2 |
250 |
87.0 |
Strength and toughness against the use of higher wear resistance than the above low-alloy High intension,lower wear-resistance,suitable for making bits used in rotary machine and heavy rotary machine to drill hard and very hard rock formation. |
YG15C |
13.9-14.2 |
2500 |
86.0 |
For making drill cone to drill all kinds of formation. |
Company Info:
NANCHANG BESTWAY TRADE CO., LTD is our trade company for exporting goods to worldwide markets.
And NANCHANG BESTWAY CEMENTED CARBIDE CO., LTD() and JIANGXI ZHAOFENG CEMENTED CARBIDE CO., LTD() are our factories for producing goods for worldwide customers.
First one focus on carbide mining tips, carbide gripper inserts for chuck jaws, carbide stone cutting tips and endmills, drills.
Second one focus on producing scarifying cutters(tct scarifier cutters), scarifier milling cutters/milling cutters/milling flails for floor planer on surface preparation.
If you have interests in our goods, pl. feel free to cotnact me. Thank you very much.
