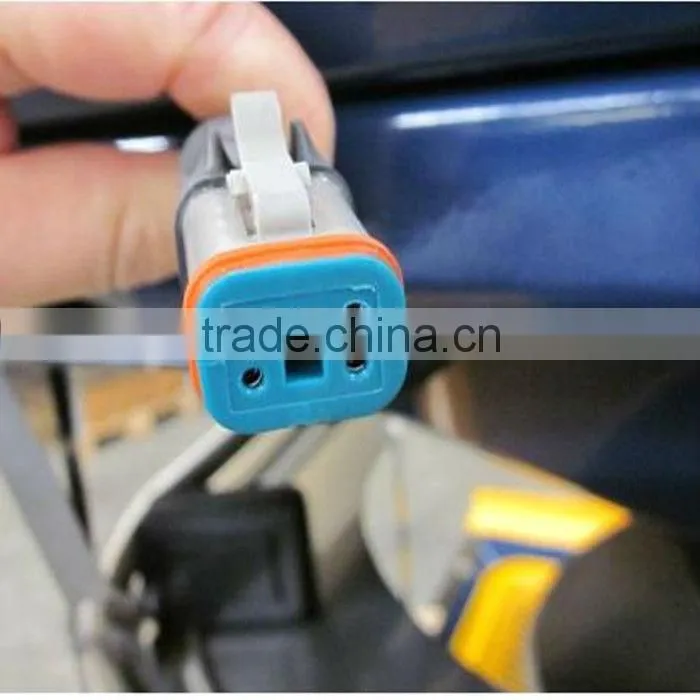

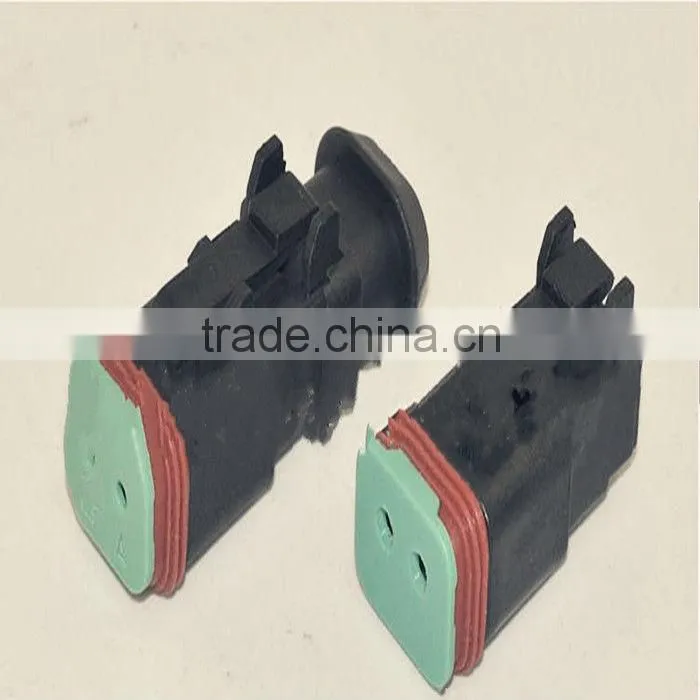

Deutsch Connector DT Series 2-Way Connectors
- 1000000 Piece / Pieces per Month
- Shenzhen or HK
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | NANGUDI | Model Number: | DT06-2S |
Type: | Other, Adapter, Plug/Socket | Application: | Other, Automobile | Gender: | Other, Male and Female |
Product Description
Specifications
Deutsch Auto connectors with 2 pin/ 4pin/ 6pin/8pin1.Waterproof
2.Sample is free.
3.RoHs, CE Approved
Deutsch Auto connectors with 2 pin/3pin/4pin/ 6pin/8pin
Material: connector: PA66; terminal: brass/phosphor copper .
DT Series Key Features:
• Accepts contact size 16 (13 amps)
• 14-20 AWG
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
DTHD Series Key Features:
• Accepts contact sizes 4 (100 amps), 8 (60 amps), and 12 (25 amps)
• 6-14 AWG
• 1 cavity arrangement
• In-line or fl ange mount
• Circular, thermoplastic housing
• Integrated latch for mating
DTM Series Key Features:
• Accepts contact size 20 (7.5 amps)
• 16-22 AWG
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
DTP Series Key Features:
• Accepts contact size 12 (25 amps)
• 10-14 AWG
• 2 and 4 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
DTV Series Key Features:
• Accepts contact size 16 (13 amps)
• 14-20 AWG
• 18 cavity arrangement
• Flange mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and retention
HD10 Series Key Features:
• Accepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)
• 6-20 AWG
• 3, 4, 5, 6, and 9 cavity arrangements
• In-line, fl ange, or PCB mount
• Circular, thermoplastic housing
• Coupling ring for mating
HD30 Series Key Features:
• Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
• 6-22 AWG
• 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangements
• In-line or fl ange mount
• Circular, aluminum housing
• Coupling ring for mating
HDP20 Series Key Features:
• Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
• 4-22 AWG
• 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangements
• In-line or fl ange mount • Circular, thermoplastic housing
• Coupling ring for mating
IMC Series Key Features:
• Accepts contact sizes 16 (13 amps), 20 (7.5 amps), and 22 (5 amps)
• 16-26 AWG
• 2, 3, 4, 5, 7, and 12 cavity arrangements
• In-line or fl ange mount
• Circular, Ultem, housing
• Coupling ring for mating
Quick Connect Series Key Features:
• Accepts contact sizes 16 (13 amps), 20 (7.5 amps), and 22 (5 amps)
• 16-26 AWG
• 2, 7, and 12 cavity arrangements
• In-line or fl ange mount
• Circular, Ultem® housing
• Push button mechanism for mating
STRIKE Series Key Features:
• Accepts contact sizes Ø12mm (300 amps), Ø8mm (150 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
• 3/0-20 AWG
• 1, 4, 8, 18, 32, 36, 50, and 64 cavity arrangements
• In-line, fl ange, or PCB mount
• Square, thermoplastic housing
• Lever for mating
• TPA assures contact alignment and retention
WT Series Key Features:
• Accepts contact sizes 4 (100 amps) and 16 (13 amps)
• 6, 16-20 AWG
• 3, 16, and 31 cavity arrangements
• In-line or fl ange mount
• Circular, anodized aluminum or composite housing
• Coupling ring for mating
Temperature
Operating at temperatures from -55° C to +125° Ccontinuous at rated current.
• DTMH Series and Quick Connect Series: -55° C to +150° C
• IMC Series and WT Series: -55° C to +175° C
Vibration
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes.
No electrical discontinuities longer than 1 microsecond.

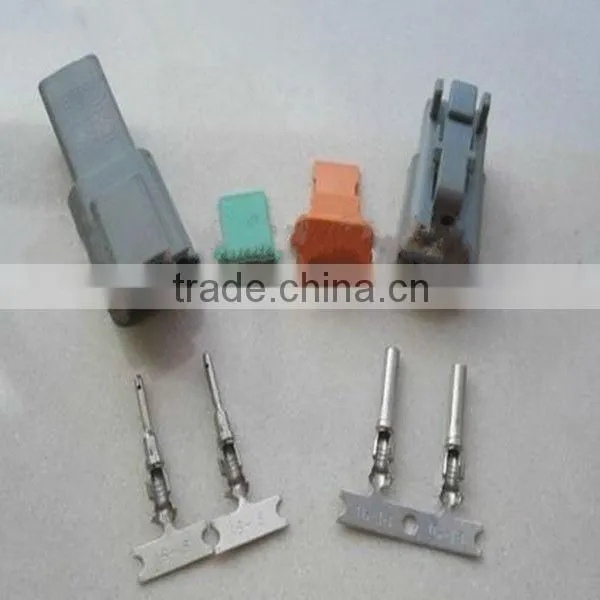

We can offer one whole set including housing, terminalsand seals, you can choose according your detail requirement too
Features:
1. 100% test before packing and shipment.
2. High quality and Waterproof.
3. Experienced manufacturing for 7 years.
