Google android 4.4 tv box
Specs:
3840X2160 60HZ HDMI1.4 4K
RS232/485, motion sensor
push button, LAN port,USB2.0,
usb3.0 SD card, OS: Android 4.4
google android 4.4 tv box
A:Main features: RDB Company designed the unique player in the market.no any other company made the same one with ours.We mainly do OEM service based on customers'
requirements,if you have any questions,pls do not hesitate to contact us.thank you!
1GB RAM + 8GB ROM
Google Android 4.4 OS
HDMI in and HDMI out
DO-LBY 7.1ch passthrough
Support DLNA, Mircast function
USB3.0 TV BOX Support HFS

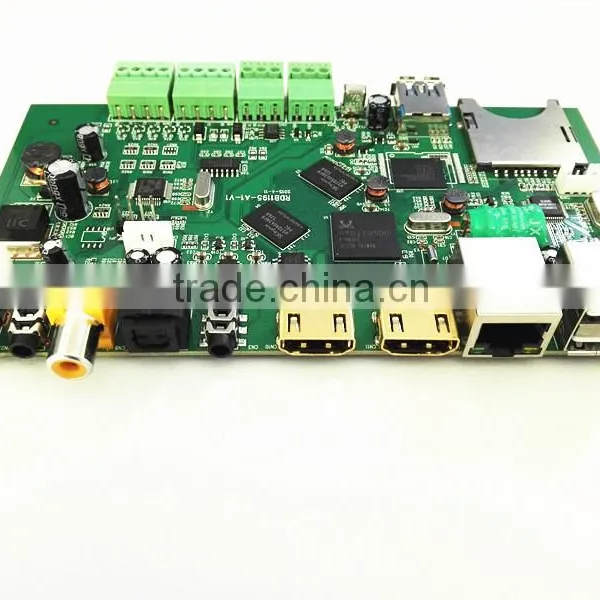

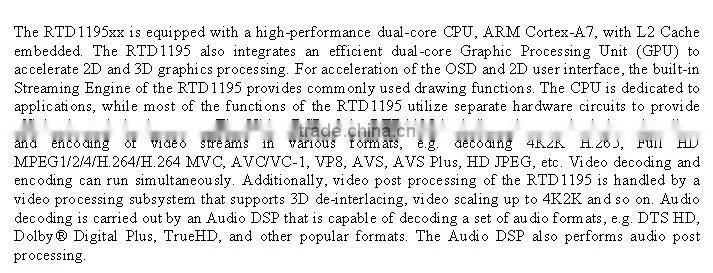

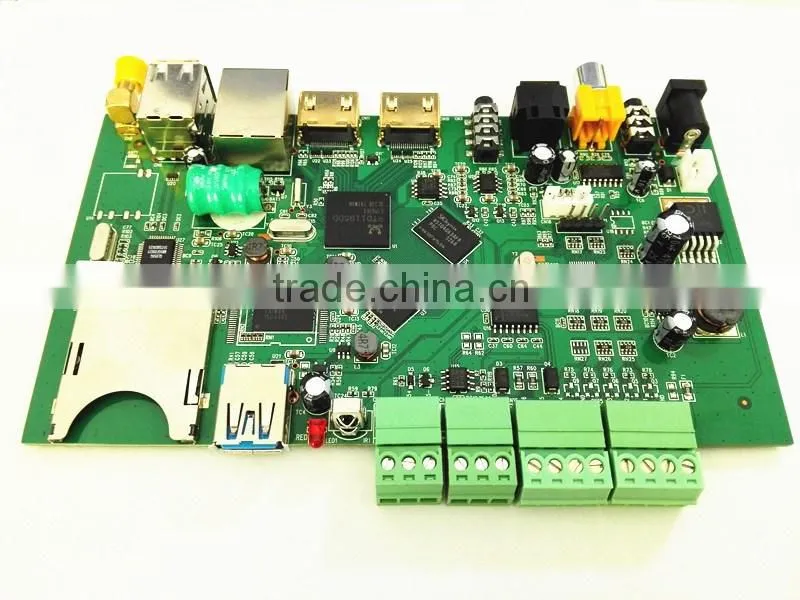

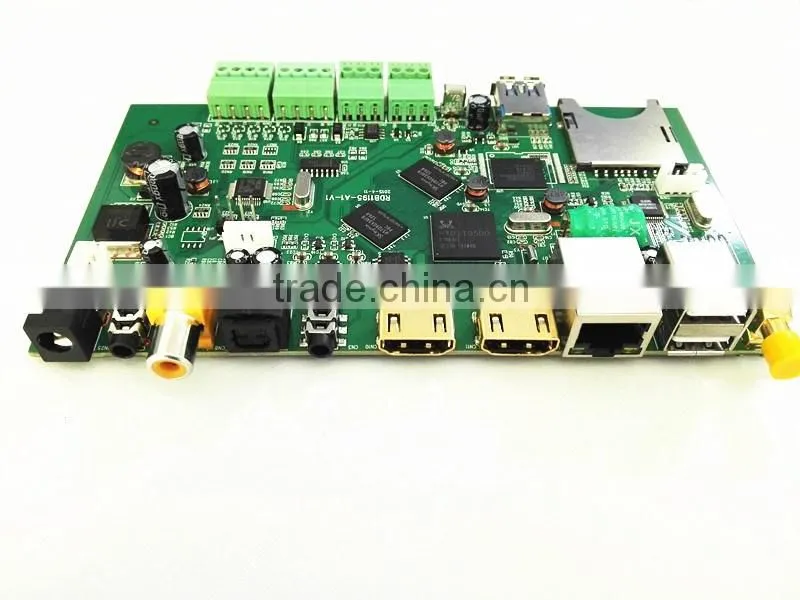

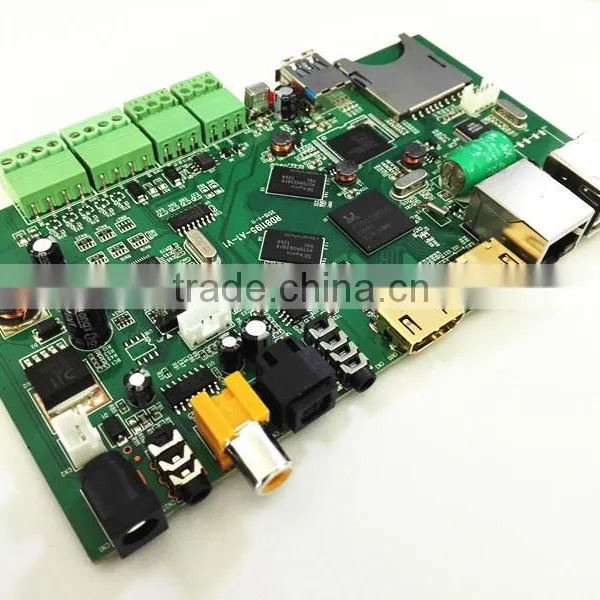

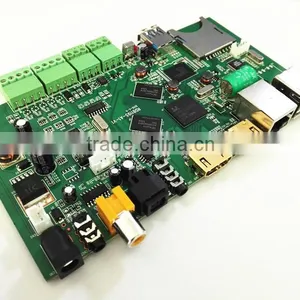

CPU: Realtek RTD1195 ARM Cortex A7
GPU: Dual core mali 400, support 4K H.265 decode
Support H.265 decoding, support 3D blu-ray disk broadcast
B: Function
1: power up, auto play.loop play,seamless gapless play
2: support playlist,
After you trigger a key, the playlist can define any play sequence
3: Support Background with music mode (Slideshow function)
4: support automatically upgrade
5: support one key copy
6, Watchdog,There is a MCU inside, it always monitor the running of player

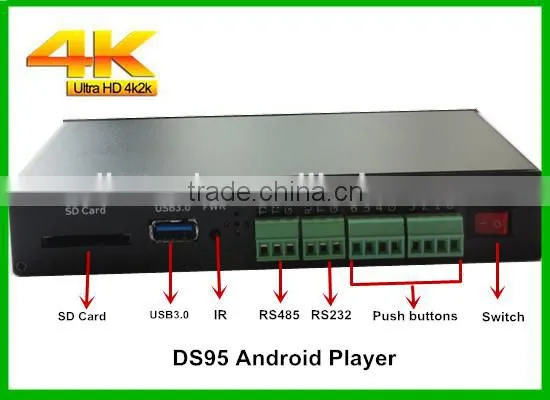

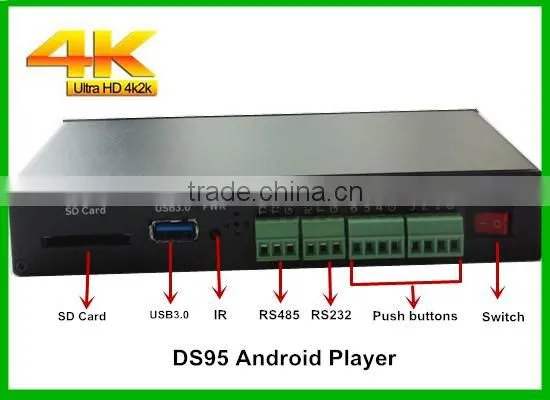

C: Interface
a, Input
1: HDMI IN
2: push button
3:GPIO, can extent to motion sensor control
4: remote controller

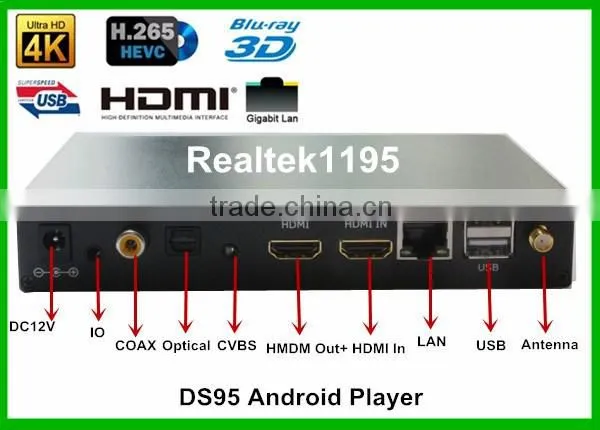

B,Output
HDMI
CVBS
COAX
Optical.
*Selling Points:----Auto play
A, Auto play setuptup
A: In the auto play mode, there is one configure file,
Name is “autoplay.txt”, it saved at the root directory of
Memory device, such as USB , Hard disc .
After power up , player will loop play the file at the root directory, you can put video,audio,music together at the root directory, if user input by remote or RS232 or Push button, the player will play the specified file that in autoplay.txt
B: Autoplay.txt configure
Every play item include three part
First two bit digit is the input No, then follow one “=”
After the =, it is the file(if at the root, don’t write it ) or file with path, such as
01=tiger.mov
02=video/hero.mpg
03=audio/*.*
First line, after you trigger the 1, the player will play the “tiger.mov” at the root.
Second line, you trigger the 2, the player will play the video “hero.mpg” that save at the video folder.
The third line, define that you trigger input 3, it will play all the file at the audio folder.
C:Special play mode
If you replace the autoplay.txt with the fastmode.txt
The player will play in fast mode, every line define one
Play option, this group by three part,
First two bit is the input digit, after it is a “=”, after the “=”,define
The start play time and end time, first item 00 define the power up play time, after power up it will always
loop this segment, as following
00=00,100, after power up, player will play at the beginning 0 second, after play to 100second, it will auto
go to start time 0. If you trigger the input 03, and define 03=XX,YY , then player will jump to XX second play,
after play to YY second, it will jump back to 00 item play.
Such as:
00=00,100
01=100,300
02=300,620
03=620,820
04=820,9000
D:Photo play option
If you want to play the photo, with the background music,
There are two cases
1: you put the photo at the root, and create one folder “audio” at the root, you put the music in this folder,
while play the photo at the root, it will play the music in the “audio” folder at the same time
2: if you define one folder with photo, such as you define
01=photo/*.*,
Also create one “foler photo_audio”, you put the music in this folder
After you trigger the 1 , it will play the photo in the photo folder, at the same time play the music in the
photo_audio folder.
E:Control play, can from the RS232 port, or I/O Port.
1. Packing list: 1 media player, 1pc remote control. power supply( AU,EU,US,UK plug)
2,Packing:Inner white box and outer carton or OEM packing box
3. Packing size: 48cm*32cm*41cm (L*W*H) 20pcs/CTN
4. Net weight: about 18kg
5. Gross weight: about 19kg
6. Volume Weight:13kg
Our Signage players are widely used in the supermarket, banks, restaurants, retail stores, hotels, museums, exhibitions,art
galleries, parks...as well as other public places, Presenting your products or service with images and videos in a slide-show can easily capture the attention of a target audience.
Trade terms: FOB SZ, EXW
Payment terms: Paypal ,TT, Western Union.
Sample testing are welcome.OEM orders are welcome.
Payment Condition: 30% deposit in advance,70% to be paid before shipment.
Delivery time :1-3 days for ready goods,28 days for OEM orders .
Shipping : By Sea,by Air, and by fast express
24 hours around the clock and 12 months Warranty : Miss Cathy: Skype: rdbmediaplayer
Technical supported all the time Mr. Eagle : Skype:
Website: Welcome to contact us !
We can do many kinds of google android 4.4 tv box.
