Help CenterDIN2391-2 ST52 Honed Hydraulic Cylinder Barrel
Related Products
-
DIN2391-2 ST52 Cold Drawn Honed Cylinder BarrelUS$ 1 - 1,000MOQ: 1 Ton -
DIN2391-2 ST52 Honed Cylinder BarrelUS$ 1 - 1,000MOQ: 1 Ton
-
42CrMo4 Honed Cylinder BarrelUS$ 1 - 1,000MOQ: 1 Ton
-
SAE1026 Honed Hydraulic Cylinder BarrelUS$ 1 - 1,000MOQ: 1 Ton
-
SAE1026 Cold Drawn Honed Cylinder BarrelUS$ 1 - 1,000MOQ: 1 Ton

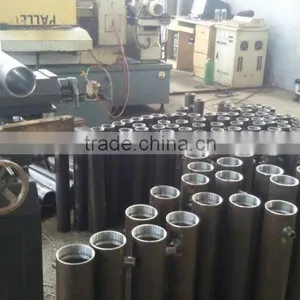

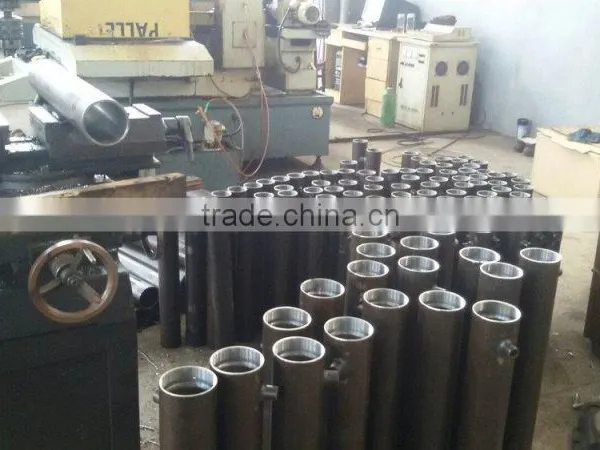

1. Commodity: DIN2391-2 ST52 honed hydraulic cylinder barrel
2. Size range: OD of barrel:450mm max, Length of barrel: 3000mm max.
3. Material of cylinder barrel: carbon steel and alloy steel
4. Raw material: honed or skived and roller burnished tubes.

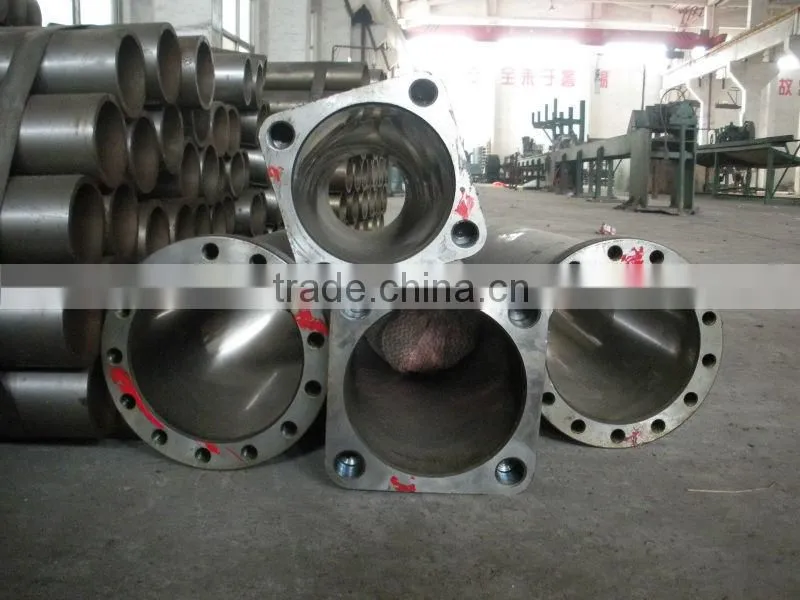

5. Flanges and feedline pipes can be welded to the cylinder barrel.
6. Application: different kinds of hydraulic cylinders.
7. Cylinder head: according to customer's design or drawing.
Material chemical composition of cylinder barrel:
| Material | Chemical composition |
||||||
|
C (%) |
Si (%) |
Mn (%) |
P (%) |
S (%) |
Cr (%) |
Mo (%) |
SAE1020/AISI1020 |
0.17-0.24 |
0.17-0.37 |
0.4-0.7 |
0.030 max |
0.025 max |
- |
- |
SAE1026/25Mn |
0.22-0.28 |
0.15-0.35 |
0.6-0.9 |
0.030 max |
0.030 max |
- |
- |
SA1045/S45C,CK45,C45E |
0.42-0.50 |
0.17-0.37 |
0.5-0.8 |
0.030 max |
0.025 max |
- |
- |
ST52/ST52.3/ST52.4/E355 |
0.22 max |
0.55 max |
1.60 max |
0.025 max |
0.025 max |
- |
- |
27SiMn (Chinese steel grade) |
0.24-0.32 |
1.1-1.4 |
1.1-1.4 |
0.035 max |
0.035 max |
- |
- |
SAE4130/34CrMo4 |
0.28-0.33 |
0.15-0.35 |
0.4-0.6 |
0.035 max |
0.035 max |
0.9-1.2 |
0.15-0.30 |
SAE4140/42CrMo4 |
0.38-0.45 |
0.4 max |
0.6-0.9 |
0.035 max |
0.035 max |
0.9-1.2 |
0.15-0.30 |
Mechanical properties of cylinder barrel:
Material |
Requirement of mechanical properties |
|||||||||
BK |
BKW |
BKS |
Normalized |
|||||||
A106 B/SAE1020 |
580 Min |
5 Min |
520 Min |
8 Min |
As per requirement |
As per requirement |
||||
SA1045/S45C,CK45 |
645 Min |
4 Min |
630 Min |
5 Min |
As per requirement |
As per requirement |
||||
ST52/ST52.3/E355 |
640 Min |
4 Min |
580 Min |
7 Min |
580 Min |
420 Min |
10 Min |
As per requirement |
||
SAE4130/34CrMo4 |
- |
- |
- |
- |
720 Min |
580 Min |
10 Min |
As per requirement |
||
SAE4140/42CrMo4 |
- |
- |
- |
- |
855 Min |
689 Min |
10 Min |
As per requirement |
||
Packing: each piece of hydraulic cylinder barrel will be well packed and put into wooden boxes.
Most of the time, drawing is necessary to produce the hydraulic cylinder barrels. If drawing is not available, we can provide drawings according to your detailed technical requirements.
We are ISO9001-2008 certified manufacturer and we provide OEM service for hydraulic cylinder manufacturers from all over the world.
Payment method: 30% deposit,balance before shipment or copy of B/L or L/C at sight.
MOQ: 1 piece for each design.
Warranty: 1 year after shipment of cylinder barrels.
Customer's inspection or third party inspection is accpetable.
