Introduction of cylindrical roller bearings NU1040M+HJ1040,NH
High Quality and competitve price
Model Number |
NU1040M+HJ1040 |
Size (ID*OD*thickness)mm |
180×280×46 |
Net Weight(Kg) |
14.3 |
Rib |
Out ring on both sides,Inner ring on one side |
Material of Cage |
brass |
Number of Row |
Single |
Precision |
P0,P6,P5,P4,P2 Available |
Noise |
Z1,Z2,Z3 Available |
Vibration |
V1,V2,V3 Available |
Cylindrical roller bearings have no ribs on either the inner or outer ring, so the
rings can move axially relative to each other. These can be used as free-end
bearings. Cylindrical roller bearings, in which either the inner or outer rings has
two ribs and the other ring has one, are capable of taking some axial load in one
direction Double-row cylindrical roller bearings have high radial rigidity and are
used primarily for precision machine tools.
Details | |||
1 |
Series |
Cylindrical roller bearings |
|
2 |
Dimension |
Id from 60mm to 1000mm |
|
3 |
Rows |
Single & Double & Four rows |
|
4 |
Structure |
Single-row |
NU / N / NJ / NF / NUP |
|
|
Double rows |
NN / NN-K / NNU-K / NNCF / NNCL / NNCS |
|
|
Four rows |
FC/FCD/FCDP |
5 |
Cage |
machined brass cage, |
|
6 |
Material |
GCr15/GCr15SiMn |
|
7 |
Precision |
Class4 (P0) |
|
8 |
Quality |
ISO9001:2000 |
|
9 |
Packing |
Standard export packing & industry packing & according to clients requirement |
|
10 |
Brand |
CLUNT |
|
11 |
Origin |
Jinan of China |
|
12 |
MOQ |
1 pcs |
|
13 |
Delivery term |
FOB Shenzhen port & CIF |
|
14 |
Delivery date |
30 days |
|
15 |
Payment term |
L/C T/T Western Union, PayPal( need 5% poundage) |
|
16 |
Useage |
Single & double rows |
motors,dynamos,combustion turbines,main shafts of machine tools, |
|
|
Four rows |
rolling mills(cold mill & hot mill & roughing mill) |
17 |
Features |
Nice out looks, good quality, best price, short delivery time, easy to install to machines. |
|
18 |
Others |
OEM orders available |
|
The range of cylindrical roller bearings comprises:
- Types NU, N, NNU, and NN are suitable as free-end bearings.
- Types NJ and NF can sustain limited axial loads in one direction.
- Types NH and NUP can be used as fixed-end bearings.
- NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
- The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the marked side is on the outside.
- The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
-
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
Advantage of our bearing
- We have our own factory,so our bearings are of low price.
- We have been this line for more than 20 years and supply OEM service to many countries.
- Our bearings are selled to many countries.
Trade&Market
|
Main Markets: |
Africa |
|
Total Annual Sales Volume: |
Below US$1 Million |
|
Export Percentage: |
91% - 100% |

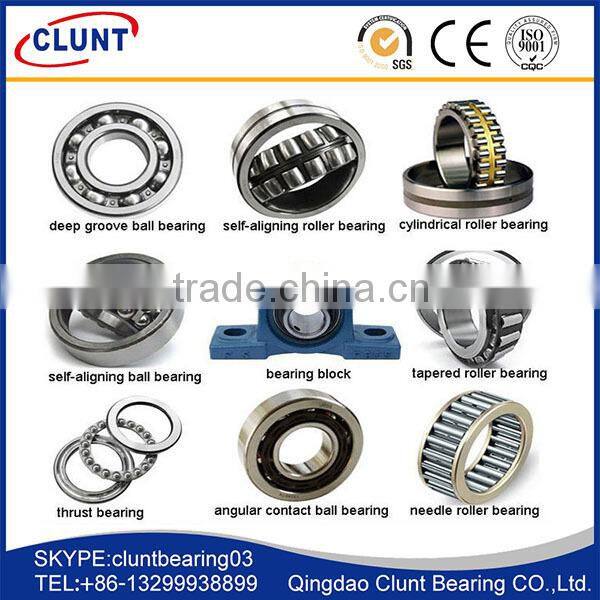

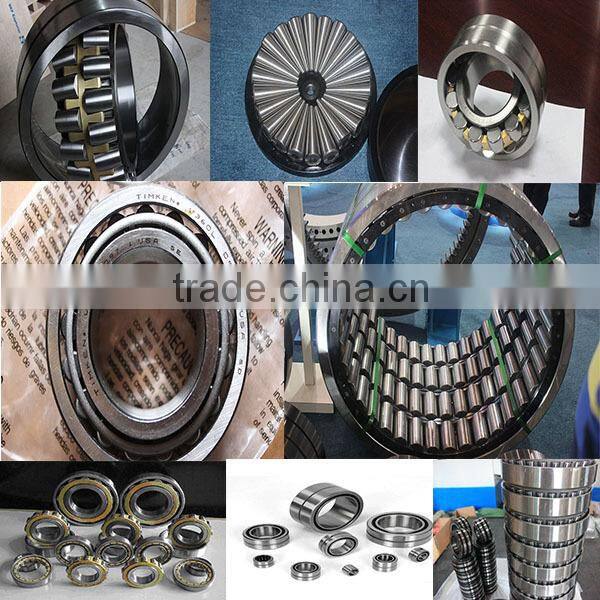

Other types of Bearings we supplied or produced
Application
Cylindrical roller bearings widely used Large and medium-sized motor, locomotives, spindle, internal combustion engines, generators, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc

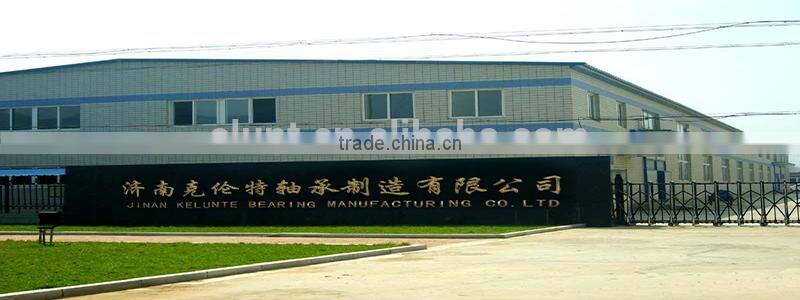

QingDao clunt bearing co.,ltd is a professional bearing manufacturer which integrated with research,development and marketing services.The company is committed to become the leader of Chinese bearing enterprises which provide users with cost-effective and better solutions by advanced technology,reliable products and professional service.
Products involved widely, in addition to the independent brand bearings, there are many famous imported bearings that you know!
Certificates

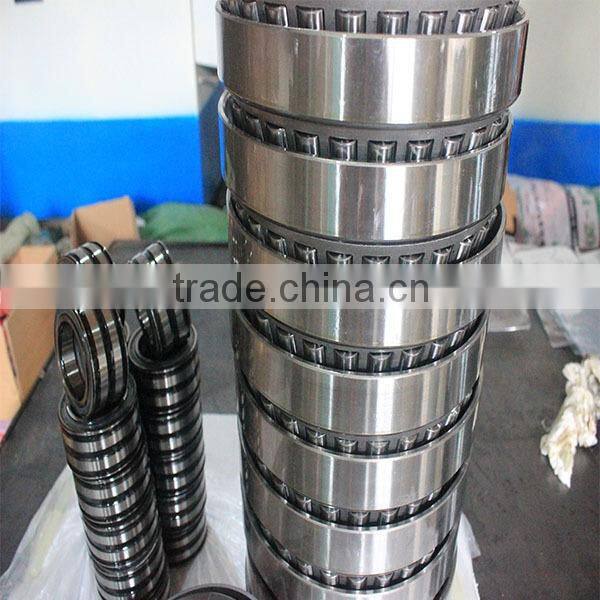

The picture of Cylindrical roller bearings

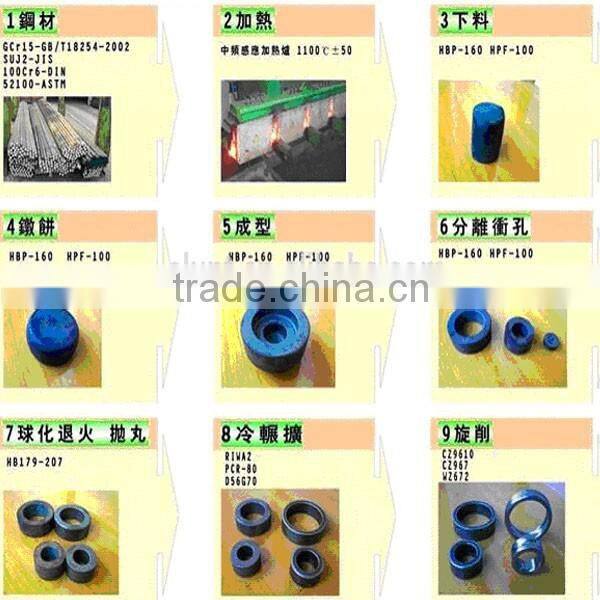

Process Routing
Type of shipping &Payments
FAQ
a) How to prolong service life of bearings?
Accurate installation and using,alignment,timely monitor,re lubrication etc.
b) Reason for bearings failure?
Usually is incorrect using method,pollution,improper use of lubricant,damage happened in installation and handing,also including installation error.according to the traces can know the reason why is failure.
c) How to choose bearings?
Analyse mechanical device and use conditions.clear the requiremment of bearings.select type of bearings,select distribution way of bearings.selet dimensions of bearings,select installation method of bearings.
d)When select bearings specifications,what you need to consider?
The precision of the bearings(rotating precision,dimensional tolerances)internal clearance and preload bearing material and heat treatment.structure of cage and material.
e)Payment method,packing way,transport method,time of delivery?
T/T,PAYPAL,WESTERN UNION,L/C
Tube,box,carton,pallet,
By sea,by air
3-15days after receipt of payment.
Our goal is provide best quality bearings and improve customer satisfaction!
