12w 12v 1a constant voltage ip67 rainproof aluminum cell phone accessory
- 100000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
- 10W 2.5KV Isolation Wide Input AC/DC Converters
- 30W Wide Voltage Input DC/DC Converters power supply
- Bently Nevada 3500/15
- 48V 3000W Telecom Power Supply Emerson R48-3000E3 Rectifier Module
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SANPU | Model Number: | LPS12-W1V |
Output Power: | 1 - 50W | Output Type: | Single | Input Voltage: | 220V |
Output Voltage: | 12v | Output Frequency: | 47~63HZ | Output Current: | 1a |
Product Description
Specifications
1, rainproof cell phone accessory2, OT, OL, OV protection
3, High efficiency
4, 2~5 year's warranty
5, OEM offered

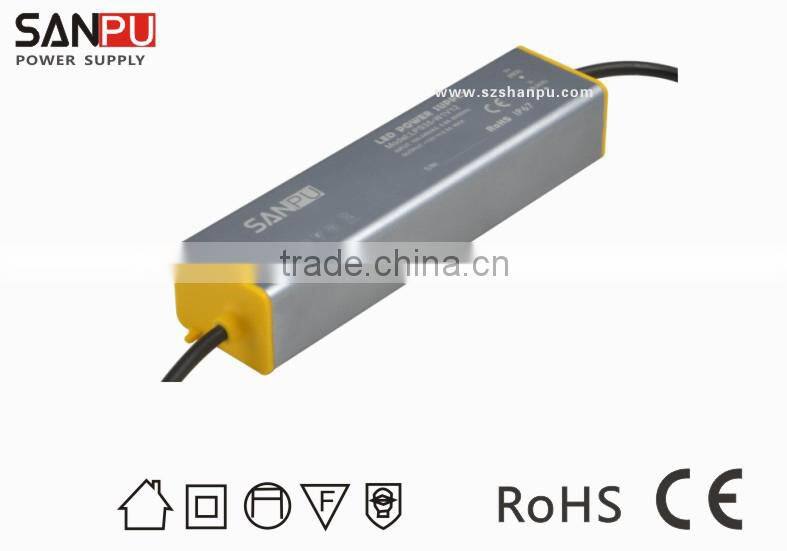

12w 12v 1a constant voltage ip67 rainproof aluminum electronic transformer
Built-in EMI filter with tiny ripple
Output protections:OLP/OVP/OTP/SCP
Wide operating ambient temp (-25°C~70°C),full load up to 70°C
100% full load burn-in test
Conform to EN60950 GB4943 UL60950 safty standards
Conform to GB 9254 EN55022 EMC standars
Specification of 12w 12v 1a constant voltage ip67 rainproof aluminum switching power supply
Model | LPS12-W1V | ||||
OUTPUT | DC Output (V) | 12 | 15 | 24 | |
Rated Current (A) | 1 | 0.8 | 0.5 | ||
Current Range | 0~1 | 0~0.8 | 0~0.5 | ||
Voltage ADJ. Range | ±1% | ±1% | ±1% | ||
Voltage Accuracy | ±1% | ±1% | ±1% | ||
Load Regulation | ±2% | ±2% | ±2% | ||
Set-up, rise&hold Time | 200ms 100ms 30ms | ||||
INPUT | Voltage Range | 100~240VAC | |||
Frequency Range | 47~63HZ | ||||
AC Current | 0.9A/115V 0.45/230V | ||||
Inrush Current | 36A/230V Cold start | ||||
Leakage Current | <0.5mA/240VAC | ||||
EFFICIENCY | 110Vac input | 85% | 85% | 87% | |
220Vac input | 86% | 86% | 88% | ||
PROTECTION | Over Load | 105~135% hiccup auto-recovery | |||
Over Voltage | 115~135% cut off auto-recovery | ||||
Operating ambient Temp & Hum. | "-20C ~ +60C 20% ~ 90%RH" | ||||
Withstand Voltage | I/P-O/P : 1.5KvAC 1 mins I/P-FG : 1.5KvAC 1 mins O/P-FG : 0.5KvAC 1 mins | ||||
OTHERS | Dimension (L*W*H) | 95*40*30(mm) | |||
Packing | 100pcs/CTN/18KG | ||||
Cooling method | heat conductive sealing |
Certifications
Generally, these switching power supply were CE and ROHS certified. We are confident and willing to apply the specific certifications as per your requests.

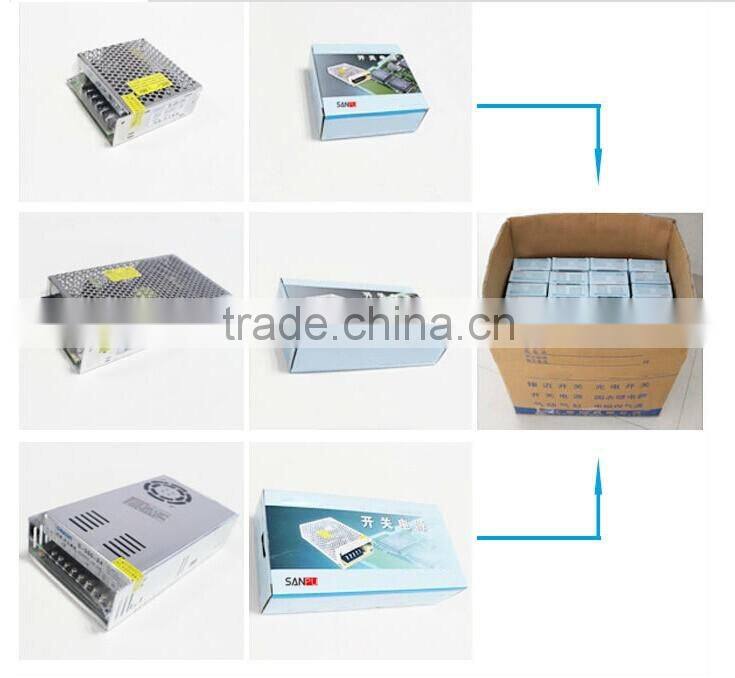

Packing details
Company Information
Established in 1999, we were experienced power supply manufacturer in China. Currently we have 3 major switching power supply series : CONSTANT VOLTAGE, CONSTANT CURRENT and DIMMABLE power supply with different performance. Switching power supply can be used for LED lights, CCTV, LCD and other lighting projects. All the power supply were 2~5 years' warranted.
