Home > Products > Electric&boat winches > Rated 12000lbs Electric Anchor Winch

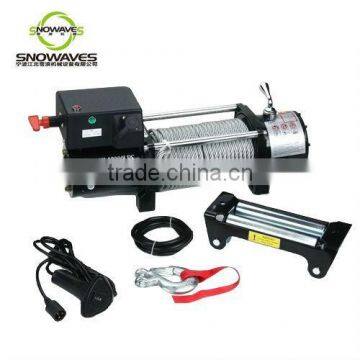

Rated 12000lbs Electric Anchor Winch
- Ningbo
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | snowaves electric anchor winch | |
| Model Number | EW12000lbs electric anchor winch | Power Source | Electric | |
| Application | Boat | Capacity | 12000lbs(5455kgs) single line |
Product Description
Specifications
electric winchesRated line pull:12000lbs(5455kgs)
Packing size:610x350x270mm PC/CTN
Weight:N.W.38kg G.W.40kg
CBM:0.058m3
Rated 12000lbs electric anchor winch
Techical detail
Rated line pull: 12000lbs(5455kgs) single line | Motor: 4.0kw/5.4hp (12v); Series Wound | Gear reduction ratio: 203:1 | Gear train: 3 Stage Planetary |
Cable (Dia*L): 9.1mm/28m | Drum size (Dia*L): Ø2.5''(64mm)x8.8''(233.5mm) | Braking action: Automatic In-The-Drum | Overall dimensions(L*W*H): 20.7''x6.3''x8.5''(527x160x217mm) |
Mounting bolt pattern: 255mm*114mm, Ø11 | Weight: N.W.38kg G.W.40kg | Packing size: 610 x 350 x 270mm 1PC/CTN | CBM: 0.058m3 |
More Detail Introduces
Shipping:
1.We ship within 3 business day after receiving payment
2.Shipping takes 3-15 business days to receive including handling time
3.We will provide tracking information once the item as shipped
For more product details, please don't hesitate to contact us.
Your inquiry is highly appreciated.
Tel:86 574 87660344 Fax: 86 574 87660344 Mobile:86 18758364326
Email:sales3 Jack 24 hours service
