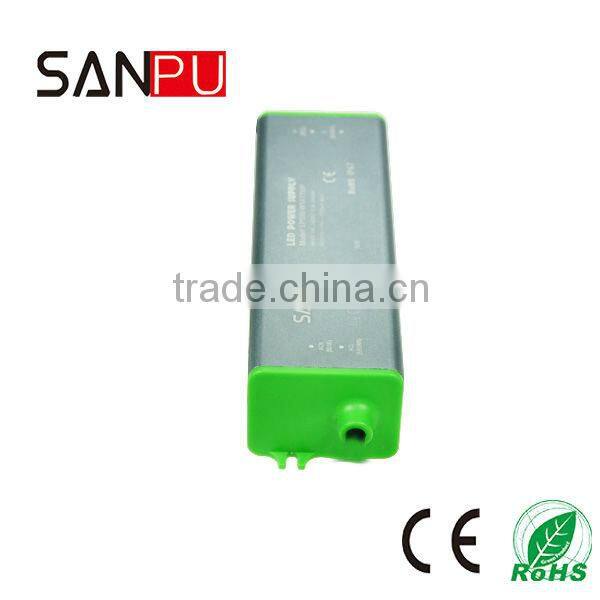

Help Center2013 New Waterproof Led Switching Power Supply LPS35-W1V SANPU
Related Products
-

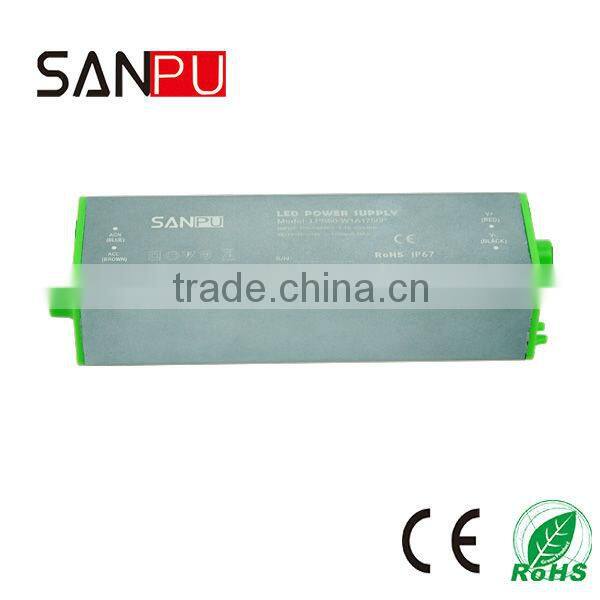

2013 New Waterproof Led Switching Power Supply LPS60-W1V SANPUUS$ 5 - 15MOQ: 1 Piece -
100W High Power LED Driver 12 Volt Power Supply for Floor LightUS$ 5 - 20MOQ: 1 Piece
-
60W Rainproof Power Supplies Led DriverUS$ 5 - 8MOQ: 1 Piece
-
100w 220v dc 12v Led Transformer Manufacturers, Suppliers and ExportersUS$ 9 - 12MOQ: 1 Piece
-
100w 220v 24v 12v Transformer Manufacturers, Suppliers and ExportersUS$ 9 - 12MOQ: 1 Piece
Specifications
35W aluminum power supplyEfficiency:aa 80%
Temperature: -20aa~60aa
Certificates: ROHS ,CE,etc.
Life span:50,000H
|
Features: 1.international AC input range 2.high efficiency, low working temperature ft- start circuit, limiting AC surge current soft-start 4.short circuit, overload, over voltage protected pact size, light weight 6.100% full load burn-in test 7.Built-in EMI filter, low ripple noise 8.low cost, high reliability 9.CE and ROHS approvals
Metal shell waterproof type constant voltage 35W | ||||
Input specification |
AC input voltage range |
85---264VAC |
||
Input frequency |
47-63Hz |
|||
AC inrush current |
30A/230V |
|||
Output specification |
Output voltage can be adjusted |
±10% |
||
Start-up time |
leq1S(input230V,Io=100%) |
|||
keep time |
more than or equal to 20mS (input230V,Io=100%) |
|||
Voltage regulation |
(Full load) leq0.5% |
|||
Protection function |
Overload protection |
105% - 135% rated power, automatic recovery |
||
Over-voltage protection |
105% - 135% of the rated voltage |
|||
Insulation intensity |
Input---output |
1500VAC/1min |
||
Input---ground |
1500VAC/1min |
|||
Input---ground |
500VAC/1min |
|||
Safety standards |
According with GB4943, UL60950-1,EN60950-1 standards. |
|||
E M C standards |
According with GB9254, EN55022 class A ?EN61347-2-13:2008 standards |
|||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
||
Storage temperature |
–40°C~85°C/10%~95%RH |
|||
height above sea level |
leq2000M |
|||
Structure |
Size(mm) |
170(L)*40(W)*30(H) |
||
Cooling method |
Cooling method |
Natural cooling air convection |
||
Weight |
0.32KG/PCS ,80pcs/25.6kg |
|||
Product Type Table | ||||
Product model |
output specification |
Error, range |
efficiency |
|
LPS35-W1V12 |
12V |
0-2.9A |
±1%, 100mV |
85% |
LPS35-W1V15 |
15V |
0-2.3A |
±1%, 100mV |
85% |
LPS35-W1V24 |
24V |
0-1.45A |
±1%, 150mV |
88% |
