CE ROHS Power Supply,led Power Supply,led Driver Manufacturer & Supplier & Exporter
US$ 1 - 16
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SANPU
Model Number:
LP35-W1A700
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC-DC Switching Power Supply 60W 1400ma SANPUUS$ 2 - 10MOQ: 1 Piece -
Waterproof Led Driver 700ma Power Supply 20W SANPUUS$ 1 - 6MOQ: 1 Piece
-
2013 AC-DC Switching Power Supply 50W 1400ma SANPUUS$ 2 - 10MOQ: 1 Piece
-
Waterproof Led Driver 1750ma Power Supply 60W SANPUUS$ 2 - 10MOQ: 1 Piece
-
Waterproof Led Driver 1750ma Power Supply 50W SANPUUS$ 2 - 10MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SANPU
Model Number
LP35-W1A700
Output Power
1 - 50W
Output Type
Single
Input Voltage
220V
Output Voltage
10~48V
Output Frequency
50~60Hz
Output Current
700mA
Specifications
power supply,led power supply,led driver manufacturer & supplier & exporterOEM&ODM welcome
Good for led lights,led tv etc
CE ROHS power supply,led power supply,led driver manufacturer & supplier & exporter
Brief
· led power supply with high quality;
· Good for led lights, cctv,atx,lcd tv, etc;
· OEM & ODM are welcome;
· Long life span, can be 50,000h;
· Various tyepes, convenient wiring;
· Universal AC input;
· 100% full load burn-in test;
· Built-in EMI fiter with tiny ripple;
· High operating temperature up to 60°C;
· Protection: short circuit/over load/over temp/over voltage/over temp;
· High efficiency, long life and high reliability.
| LP35-W1A | |||
| MODEL | 700mA 35W | 1050mA 35W | |
| OUTPUT | DC CURRENT | 700mA 35W | 1050mA |
| RATED VOLTAGE | 10~48V | 10~30V | |
| RATED POWER | 35W | ||
| SETUP.RISE TIME | 200ms 100ms | ||
| HOLD UP TIME(Typ.) | 30ms | ||
| INPUT | VOLTAGE RANGE | 100-240VAC | |
| FREQUENCY RANGE | 50/60HZ | ||
| POWER FACTOR(Typ.) | PF>0.6/220VAC | ||
| EFFICIENCY(Typ.) | ≥80% | ||
| INRUSH CURRENT(Typ.) | COLD-START CURRENT20A/230VAC | ||
| PROTECTION | Short circuit | Protection Type:recovers automatically after fault condition is removed | |
| Overlaod | 102%~107% hiccup mode,auto-recovery | ||
| Over temperature | ≥105%°C hiccup mode,auto-recovery | ||
| ENVIRONMENT | WORKING TEMP. | -20°C~+60°C | |
| WORKING HUMIDITY | 20%~90%RH | ||
| STORAGE TEMP.HUMIDITY | –40°C~85°C/10%~95%RH | ||
| SAFETY&EMC | SAEFTY STANDARDS | CE ROHS AND IP67 | |
| WITHSAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006; | ||
| EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006 | |||
| WEIGHT | 0.35Kg,80pcs/27Kg | ||
| NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation |
||

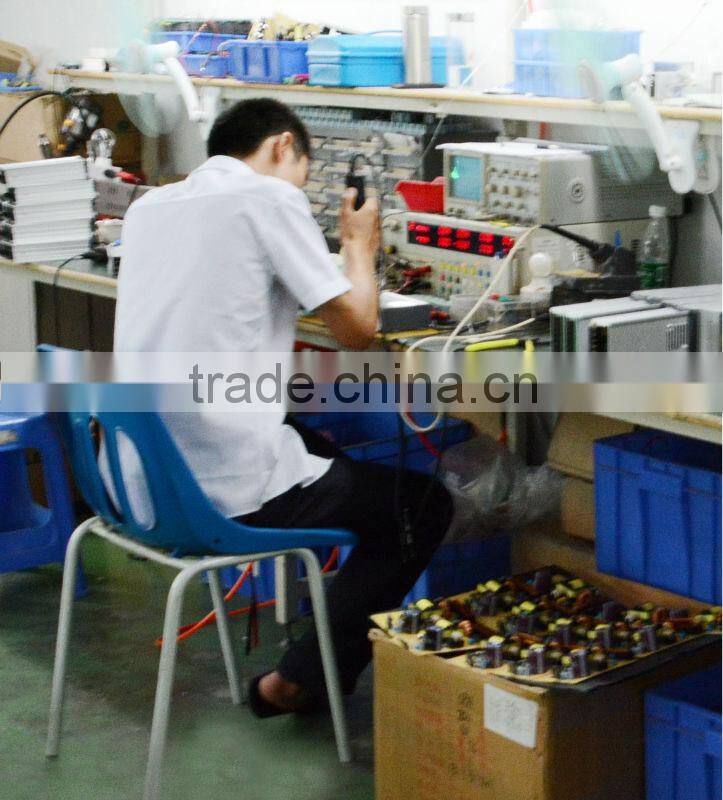

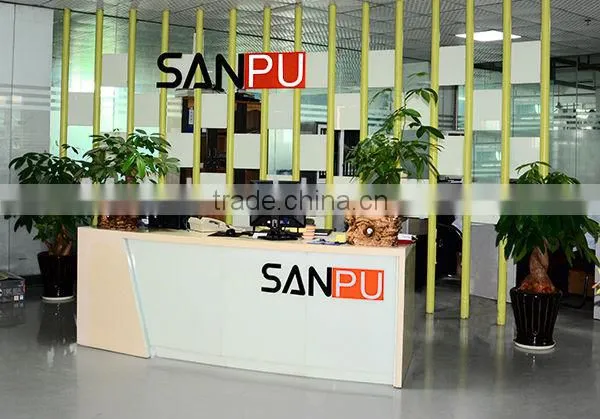

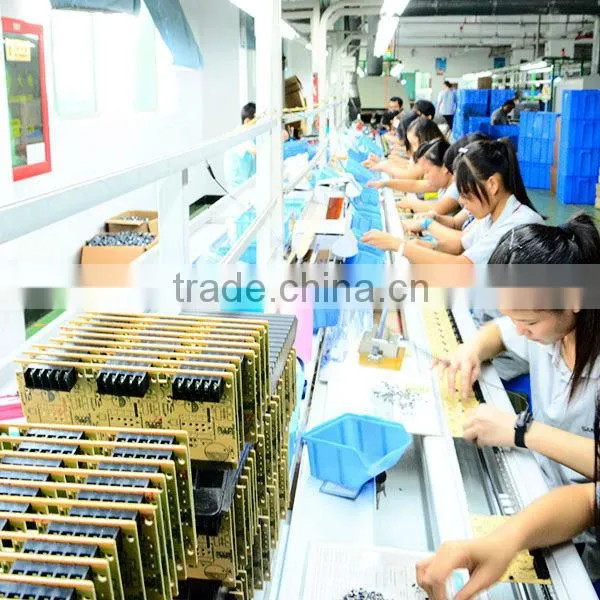

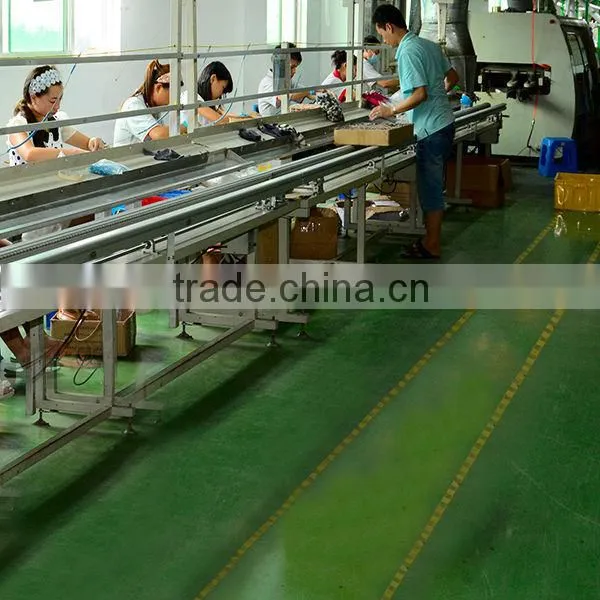

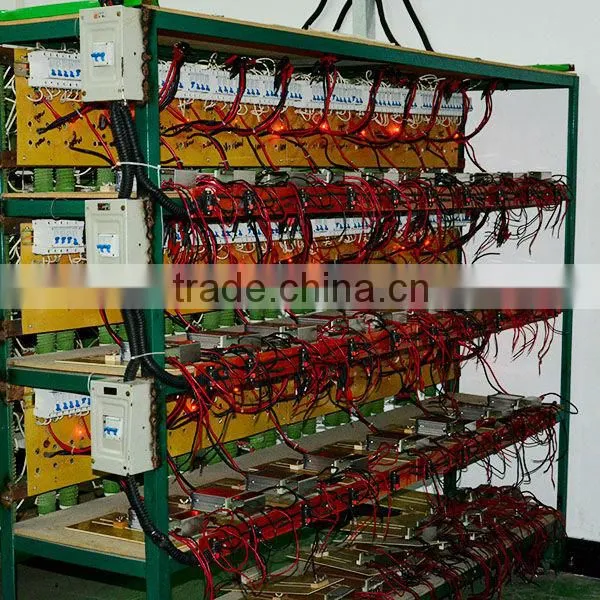

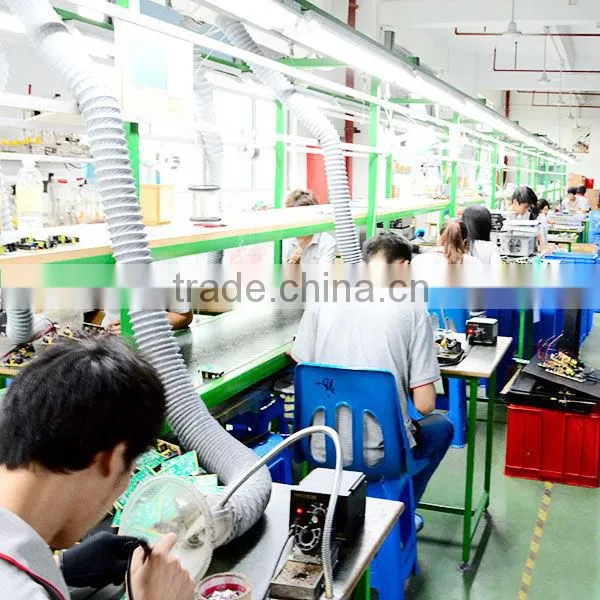

Following are photos of our office and workshop, we were certificated by CE and ROHS:
If you are looking for led power supply.
Please feel free to contact with us.
We can provide many different types to you.
Contact: Ms Janney Dai
Skype :Janney Dai
