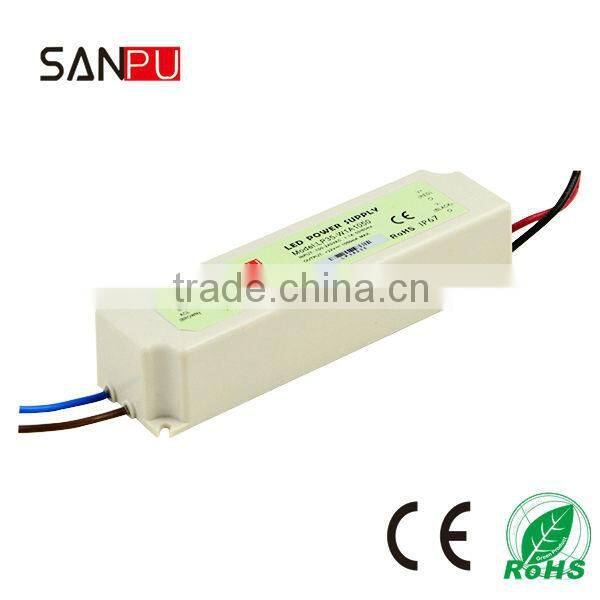

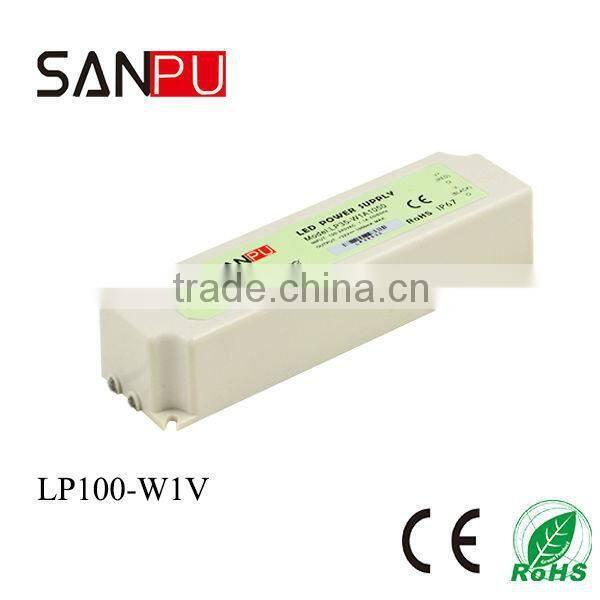

Waterproof Cctv Power Supplies 120W 24V Power Supply

Waterproof Cctv Power Supplies 120W 24V Power Supply thumbnail-1
Waterproof Cctv Power Supplies 120W 24V Power Supply photo-1
US$ 1 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SANPU
Model Number:
LP120-W1V12
Contact Supplier Request Quote Chat Now
Shenzhen Sanpu Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SANPU
Model Number LP120-W1V12
Output Power 101 - 200W
Output Type Single
Input Voltage 220V
Output Voltage 12V
Output Frequency 47-63Hz
Output Current 10A

Specifications

1. CE, ROHS approved
2. 100% full load burn-in test
3. Small- volume high-efficiency
4. Two years warranty
5. Long lifespan

Features:

1.international AC input range

2.high efficiency, low working temperature

ft- start circuit, limiting AC surge current soft-start

4.short circuit, overload, over voltage protected

pact size, light weight

6.100% full load burn-in test

7.Built-in EMI filter, low ripple noise

8.low cost, high reliability

9.CE and ROHS approvals





Metal standard type constant voltage 120W

Input specification

AC input voltage range

85---264VAC

Input frequency

47-63Hz

AC inrush current

40A/230V

Output specification

Output voltage can be adjusted

±10%

Start-up time

leq1S(input230V,Io=100%)

keep time

more than or equal to 20mS (input230V,Io=100%)

Voltage regulation

(Full load) leq0.5%

Protection function

Overload protection

105% - 135% rated power, automatic recovery

Over-voltage protection

105% - 135% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943, UL60950-1,EN60950-1 standards.

E M C standards

According with GB9254, EN55022 class A EN61347-2-13:2008 standards



Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

–40°C~85°C/10%~95%RH

height above sea level

leq2000M

Structure

Size(mm)

192(L)*52.8(W)*37(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.6KG/PCS ,40pcs/24kg

Product Type Table

Product model

output sp5cification

Error, range

efficiency

LP120-W1V12

12V

0-10A

±1%, 100mV

85%

LP120-W1V15

15V

0-8A

±1%, 100mV

85%

LP120-W1V24

24V

0-5A

±1%, 150mV

87%

LP120-W1V48

48V

0-2.5A

±1%, 150mV

87%







waterproof cctv power supplies 120W 24V power supplywaterproof cctv power supplies 120W 24V power supply



waterproof cctv power supplies 120W 24V power supplywaterproof cctv power supplies 120W 24V power supply
